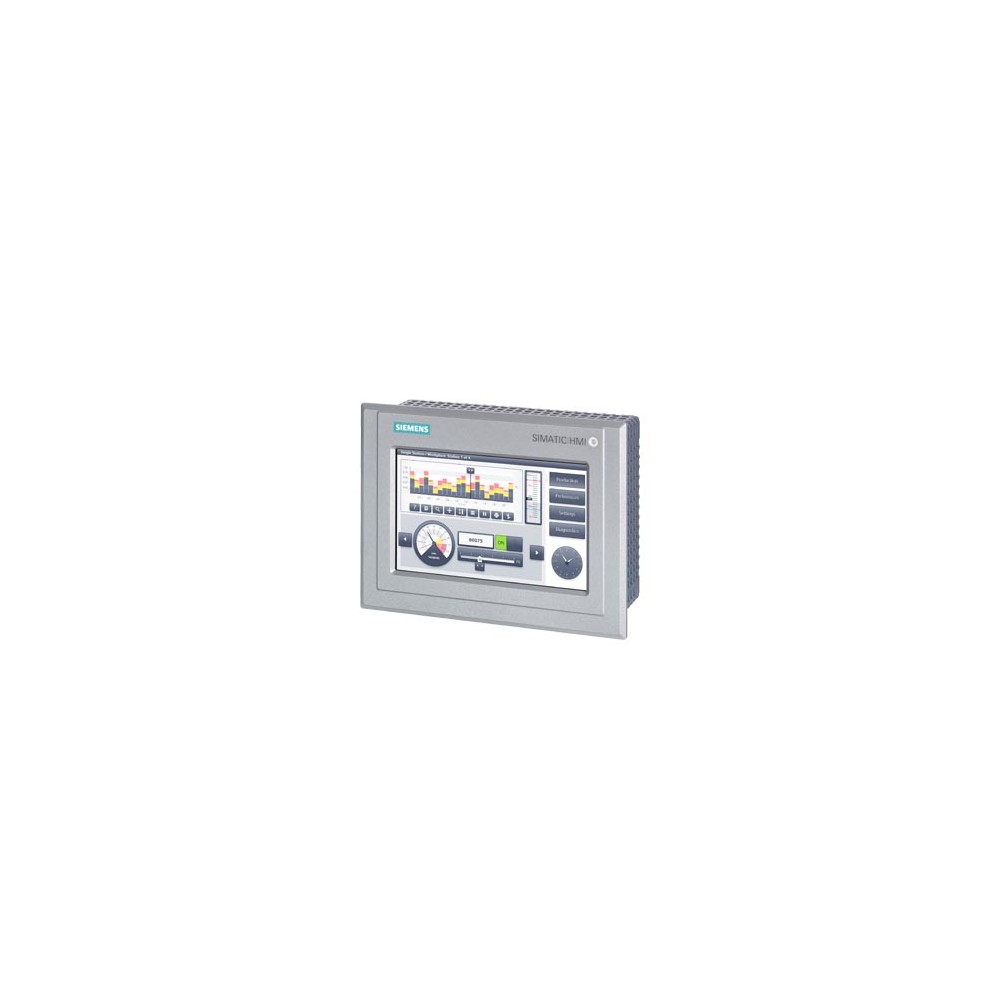

Siemens 6AG1124-0GC13-2AM0

SIPLUS HMI TP700 Comfort Outdoor M based on 6AV2124-0GC13-0AX0 with conformal coating, -30…+60 °C, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable as of WinCC Comfort V13 SP1, HSP

General information
Product type designation TP700 Comfort Outdoor
based on 6AV2124-0GC13-0AX0
Display
Design of display TFT, bonded, daylight-readable
Screen diagonal 7 in
Display width 152.4 mm
Display height 91.4 mm
Number of colors 16 777 216
Resolution (pixels)
● Horizontal image resolution 800 pixel
● Vertical image resolution 480 pixel
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h
● Backlight dimmable Yes; LED, can be dimmed manually or automatically
Control elements
Keyboard fonts
● Function keys
— Number of function keys 0
— Number of function keys with LEDs 0
● Keys with LED No
● System keys No
● Numeric keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes; analog, resistive
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1...Fx 0
● Direct keys (keys as S7 input I/O)
— F1...Fx 0
● Direct keys (touch buttons as S7 input I/O) 32
Installation type/mounting
Mounting position vertical
Mounting in portrait format possible Yes
Mounting in landscape format possible Yes
maximum permissible angle of inclination without external ventilation 35°
Supply voltage
Type of supply voltage DC; operation only with current-compensated reactors (2 x 82 mH) in the umbilical cables as close as possible to the supply terminals
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28 V
Input current
Current consumption (rated value) 0.7 A
Starting current inrush I²t 0.5 A²·s
Power
Active power input, typ. 17 W
Processor
Processor type X86
Memory
Flash Yes
RAM Yes
Memory available for user data 12 Mbyte
