6AV2124-0QC13-0AX0

Condition: New product

More info

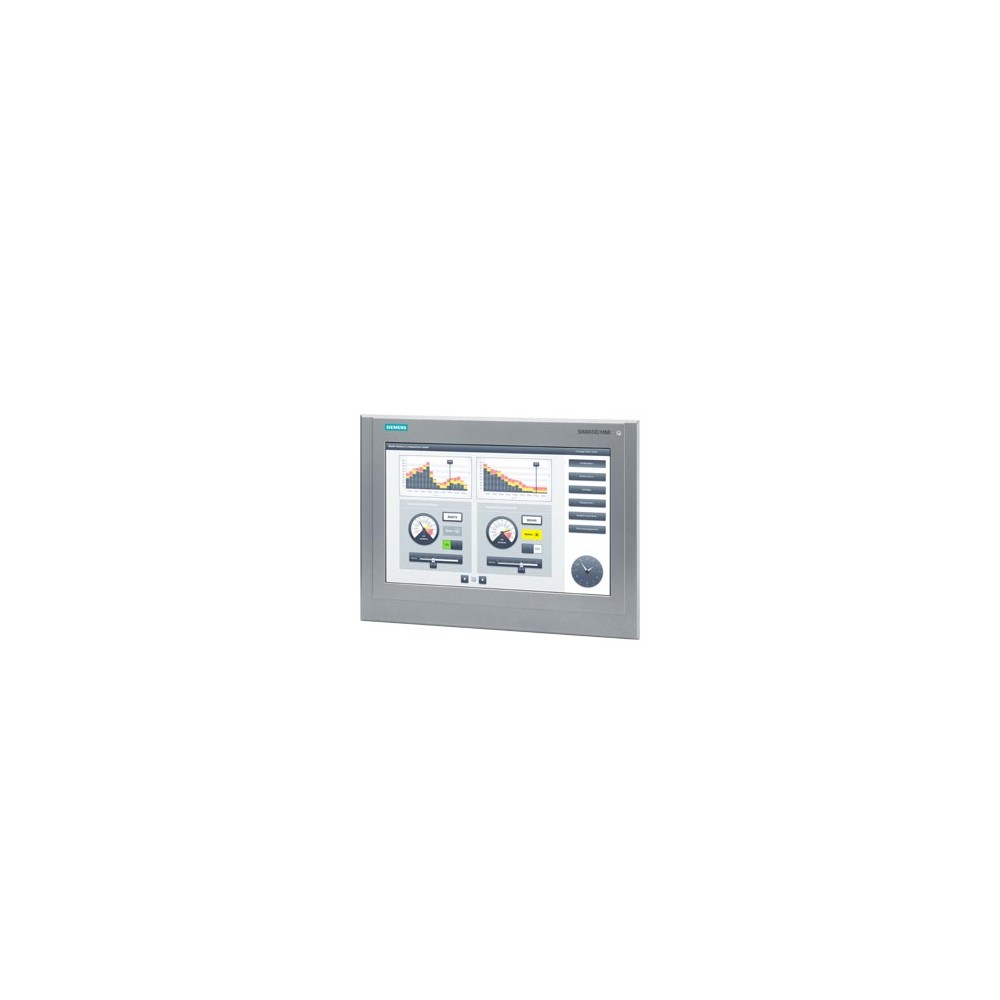

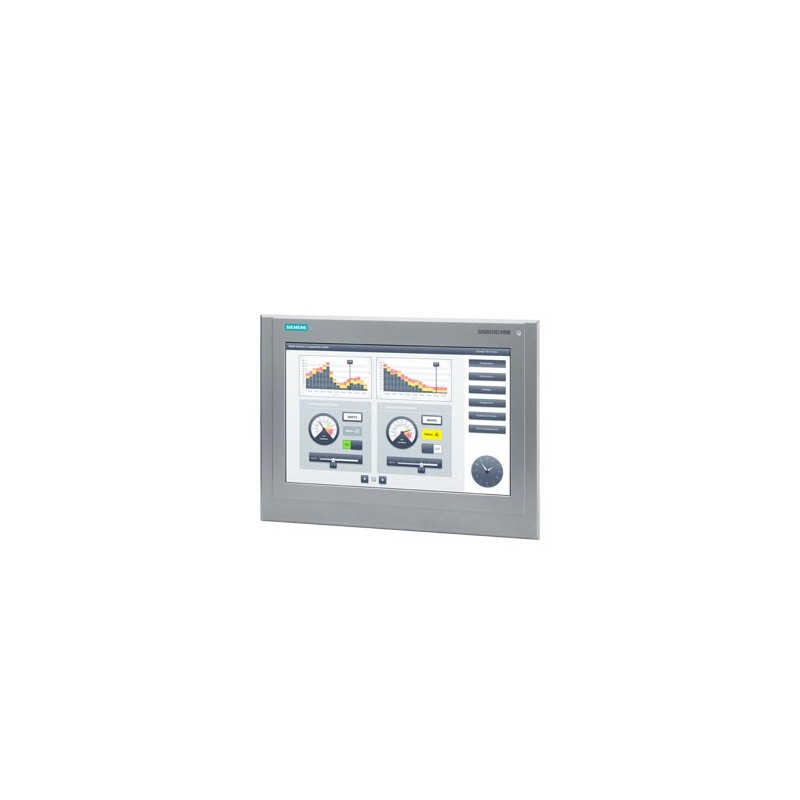

Siemens 6AV2124-0QC13-0AX0

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP

General information
Product type designation		TP1500 Comfort Outdoor
Display
Design of display		TFT, bonded, daylight-readable
Screen diagonal		15.4 in
Display width		331.2 mm
Display height		207 mm
Number of colors		16 777 216
Resolution (pixels)
● Horizontal image resolution		1 280 pixel
● Vertical image resolution		800 pixel
Backlighting
● MTBF backlighting (at 25 °C)		50 000 h
● Backlight dimmable		Yes; LED, can be dimmed manually or automatically
Control elements
Keyboard fonts
● Function keys
— Number of function keys		0
— Number of function keys with LEDs		0
● Keys with LED		No
● System keys		No
● Numeric keyboard		Yes; Onscreen keyboard
● alphanumeric keyboard		Yes; Onscreen keyboard
Touch operation
● Design as touch screen		Yes; Analog-resistive
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1...Fx		0
● Direct keys (keys as S7 input I/O)
— F1...Fx		0
● Direct keys (touch buttons as S7 input I/O)		40
Installation type/mounting
Mounting position		vertical
Mounting in portrait format possible		Yes
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		35°
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		1.3 A
Starting current inrush I²t		0.5 A²·s
Power
Active power input, typ.		32 W
Processor
Processor type		X86
Memory
Flash		Yes
RAM		Yes
Memory available for user data		12 Mbyte
