6AV2128-3QB57-1BX0

Condition: New product

More info

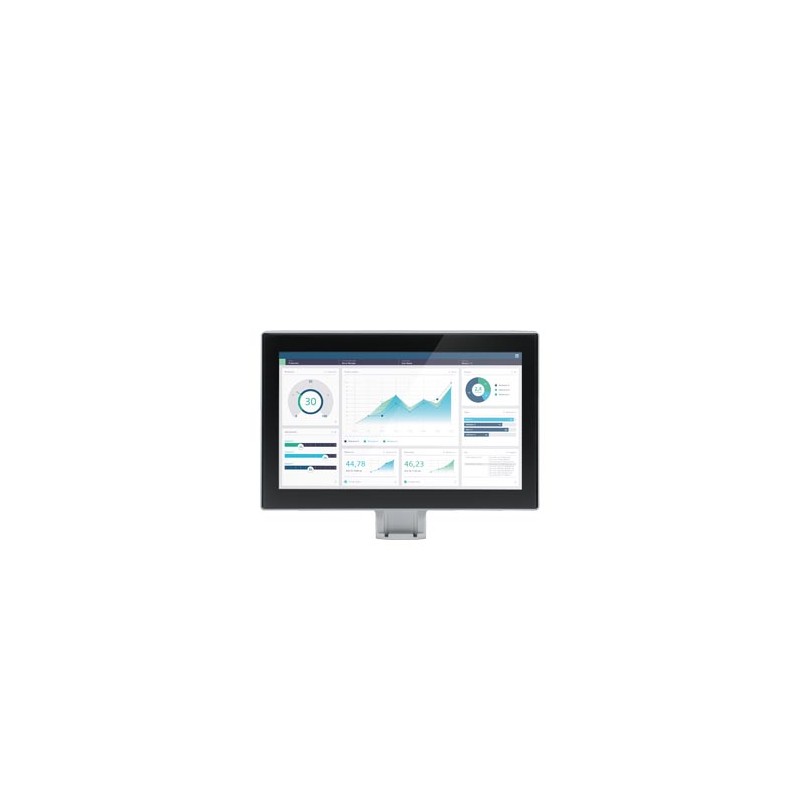

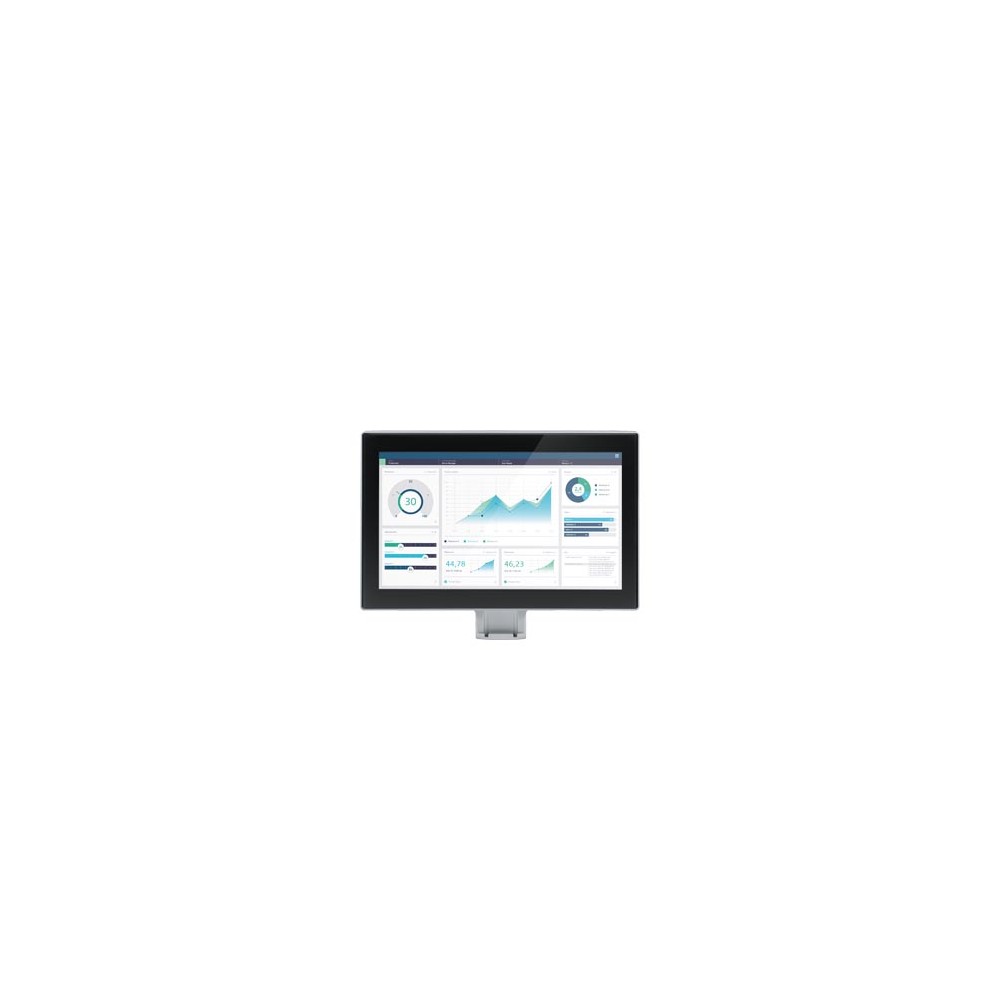

Siemens 6AV2128-3QB57-1BX0

SIMATIC HMI MTP1500 PRO, for supporting foot (expandable, flange at bottom), neutral front, 15.6" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V18

General information
Product type designation		MTP1500 Unified Comfort PRO Neutral Front
Display
Design of display		TFT
Screen diagonal		15.6 in
Display width		344.2 mm
Display height		193.5 mm
Number of colors		16 777 216
Resolution (pixels)
● Horizontal image resolution		1 366 pixel
● Vertical image resolution		768 pixel
Backlighting
● MTBF backlighting (at 25 °C)		50 000 h
● Backlight dimmable		Yes; 10 ... 100%
Control elements
Keyboard fonts
● Numeric keyboard		Yes; Onscreen keyboard
● alphanumeric keyboard		Yes; Onscreen keyboard
Touch operation
● Design as touch screen		Yes
● Design as multi-touch screen		Yes
Installation type/mounting
Mounting		Pedestal
Mounting position		vertical
Mounting in portrait format possible		No
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		35°
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		0.7 A
Current consumption, max.		1.3 A
Starting current inrush I²t		0.5 A²·s
Power
Active power input, typ.		16.8 W
