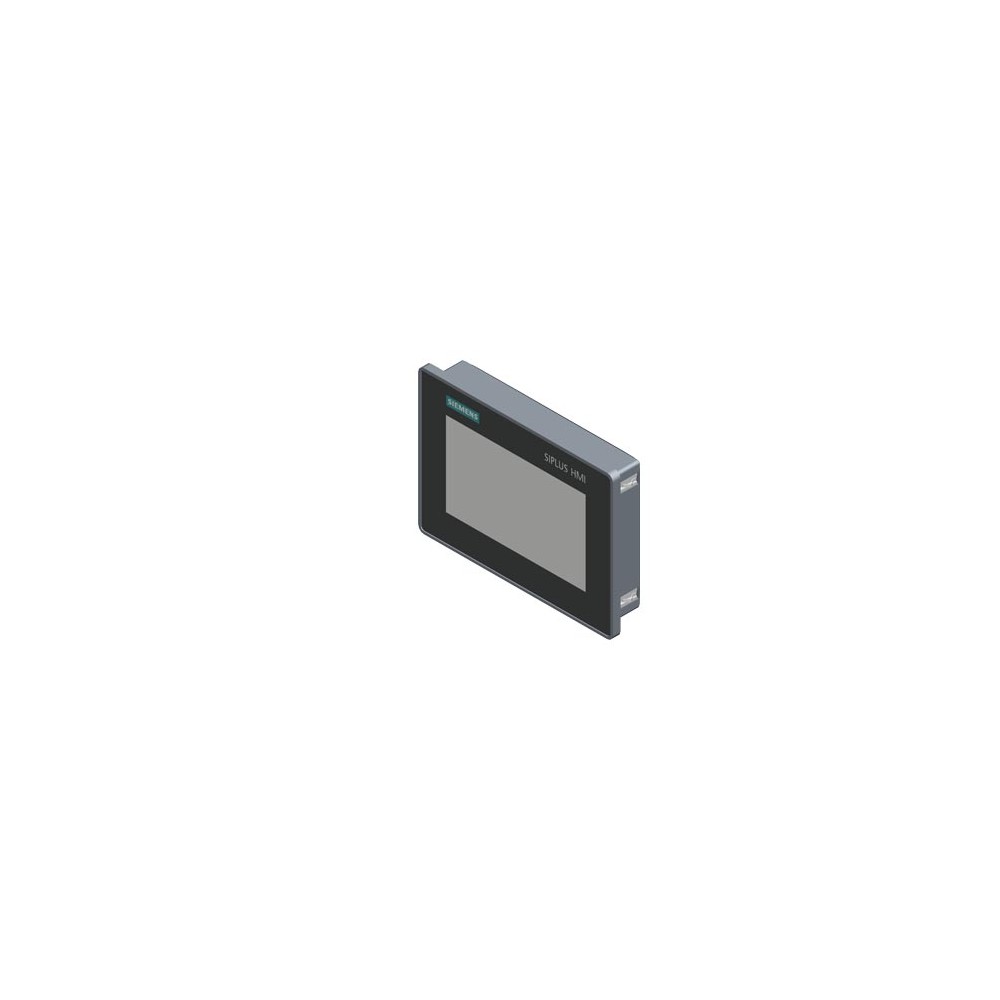

Siemens 6AG1123-3GB32-2AW0

SIPLUS HMI MTP700, Unified Basic Panel, based on 6AV2123-3GB32-0AW0 with conformal coating -20 ...+50 °C touch operation 7" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray

General information
Product type designation MTP700 Unified Basic
based on 6AV2123-3GB32-0AW0
Display
Design of display TFT
Screen diagonal 7 in
Display width 152.4 mm
Display height 91.4 mm
Number of colors 16 777 216
Resolution (pixels)
● Horizontal image resolution 800 pixel
● Vertical image resolution 480 pixel
Backlighting
● MTBF backlighting (at 25 °C) 20 000 h; At 25°C
● Backlight dimmable Yes; 10 ... 100%
Control elements
Keyboard fonts
● Numeric keyboard Yes; Onscreen keyboard
● alphanumeric keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes
● Design as multi-touch screen Yes
● Monitor keyboard Yes
Installation type/mounting
Mounting position vertical
Mounting in portrait format possible Yes
Mounting in landscape format possible Yes
maximum permissible angle of inclination without external ventilation 35°
Supply voltage
Type of supply voltage DC
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Input current
Current consumption (rated value) 0.2 A
current consumption (for rated value of supply voltage), min. 0.16 A
current consumption (for rated value of supply voltage), max. 0.51 A
Current consumption, max. 0.69 A; at 19.2 V
Starting current inrush I²t 0.36 A²·s
Power
Active power input, typ. 8.2 W
