New

6AV2123-3DB32-0AW0

Condition: New product

More info

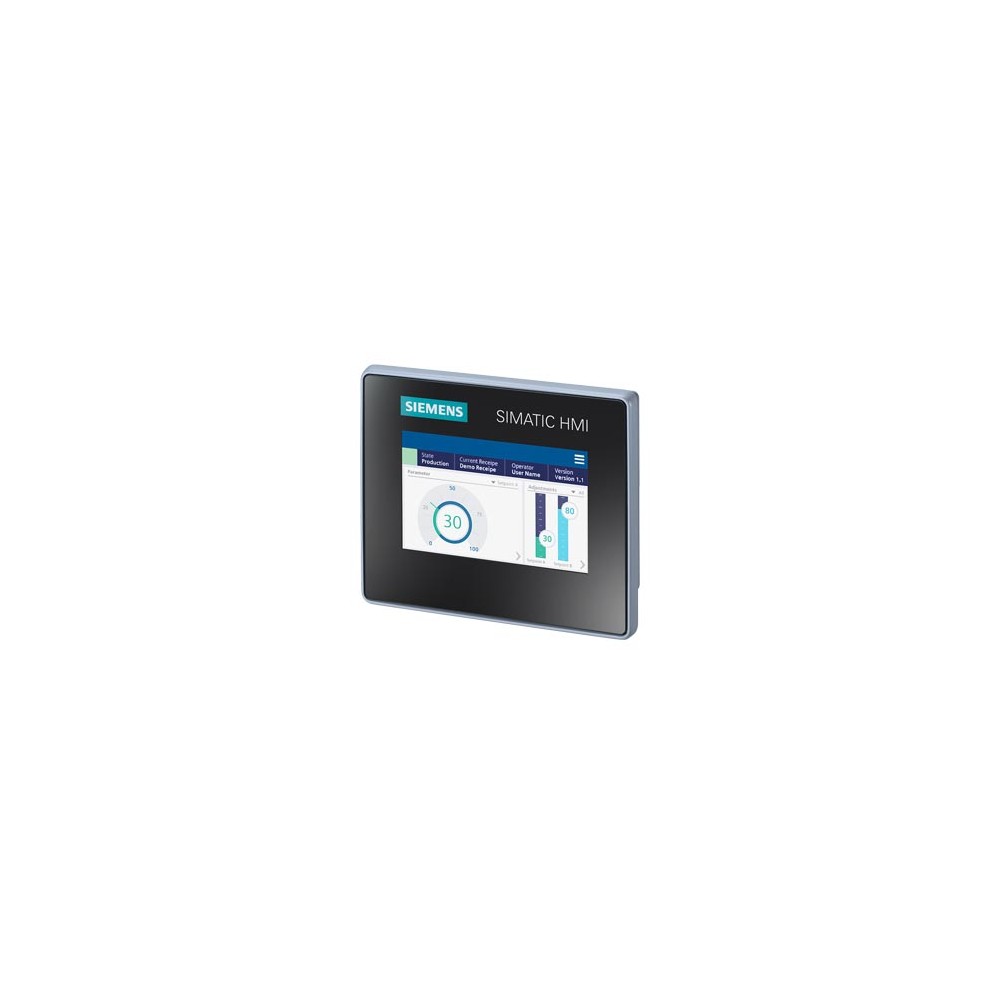

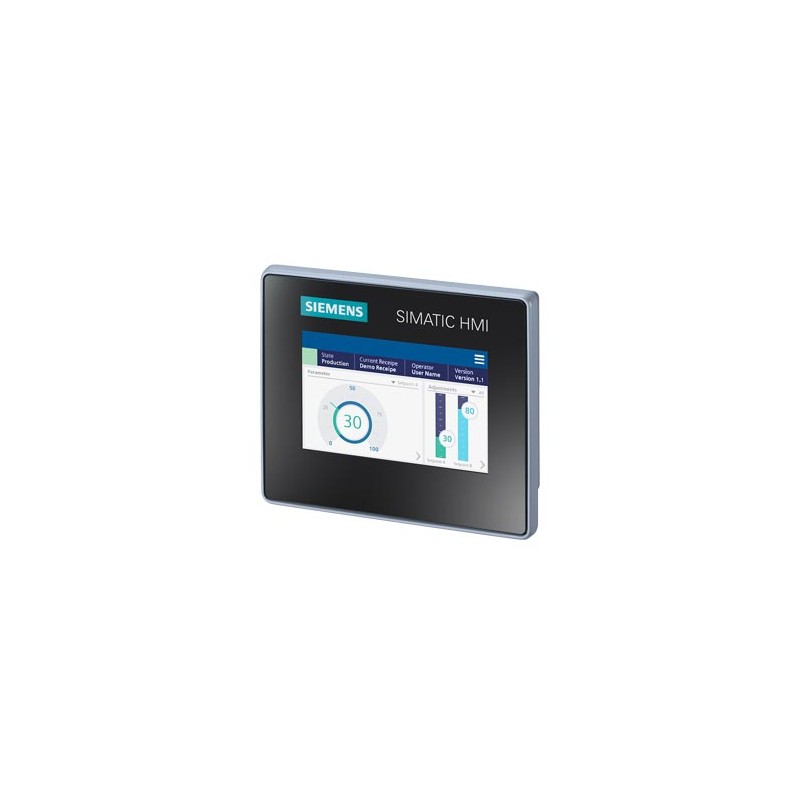

Siemens 6AV2123-3DB32-0AW0

SIMATIC HMI MTP400, Unified Basic Panel, touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray

General information
Product type designation		MTP400 Unified Basic
Display
Design of display		TFT
Screen diagonal		4.3 in
Display width		93.6 mm
Display height		56.2 mm
Number of colors		16 777 216
Resolution (pixels)
● Horizontal image resolution		800 pixel
● Vertical image resolution		480 pixel
Backlighting
● MTBF backlighting (at 25 °C)		20 000 h; At 25°C
● Backlight dimmable		Yes; 10 ... 100%
Control elements
Keyboard fonts
● Numeric keyboard		Yes; Onscreen keyboard
● alphanumeric keyboard		Yes; Onscreen keyboard
Touch operation
● Design as touch screen		Yes
● Design as multi-touch screen		Yes
● Monitor keyboard		Yes
Installation type/mounting
Mounting position		vertical
Mounting in portrait format possible		Yes
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		35°
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		0.16 A
current consumption (for rated value of supply voltage), min.		0.14 A
current consumption (for rated value of supply voltage), max.		0.47 A
Current consumption, max.		0.63 A; at 19.2 V
Starting current inrush I²t		0.45 A²·s
Power
Active power input, typ.		3.8 W
