New

6AG1123-2DB03-2AX0

Condition: New product

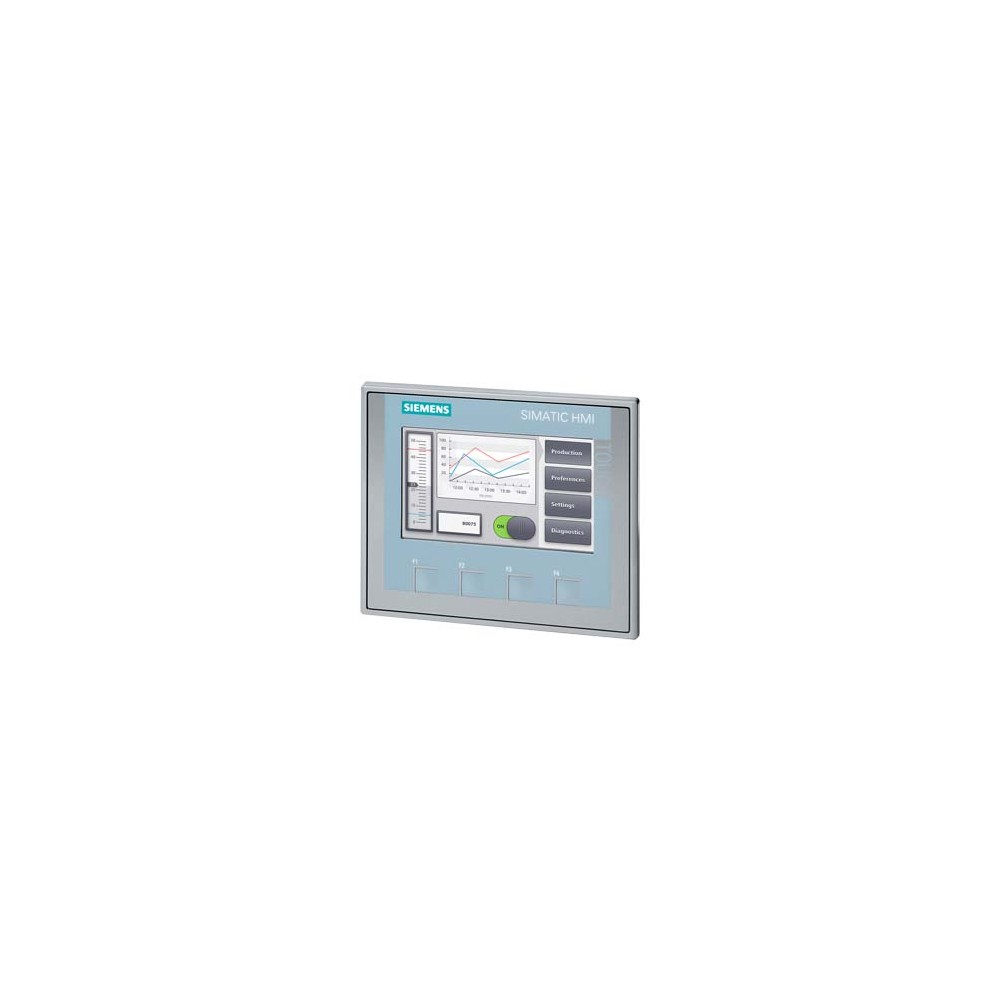

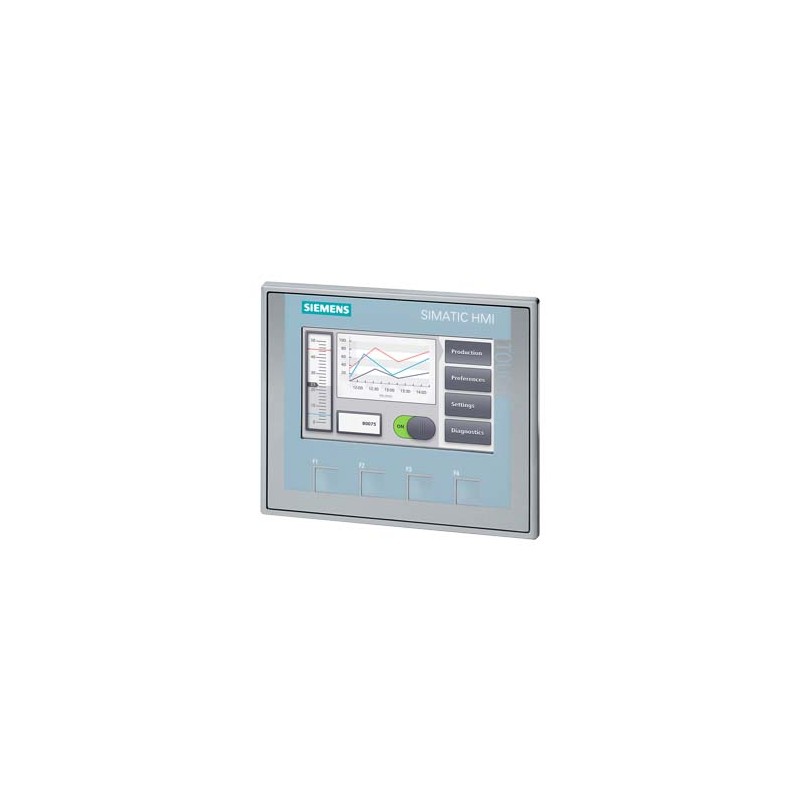

Siemens 6AG1123-2DB03-2AX0

SIPLUS HMI KTP400 Basic Color PN based on 6AV2123-2DB03-0AX0 with conformal coating, -20…+60 °C, 4" TFT display, 65536 colors PROFINET interface

General information
Product type designation		KTP400 Basic color PN
based on		6AV2123-2DB03-0AX0
Display
Design of display		TFT widescreen display, LED backlighting
Screen diagonal		4.3 in
Display width		95 mm
Display height		53.9 mm
Number of colors		65 536
Resolution (pixels)
● Horizontal image resolution		480 pixel
● Vertical image resolution		272 pixel
Backlighting
● MTBF backlighting (at 25 °C)		20 000 h
● Backlight dimmable		Yes
Control elements
Keyboard fonts
● Function keys
— Number of function keys		4
— Number of function keys with LEDs		0
● Keys with LED		No
● System keys		No
● Numeric keyboard		Yes; Onscreen keyboard
● alphanumeric keyboard		Yes; Onscreen keyboard
Touch operation
● Design as touch screen		Yes; Analog-resistive
Installation type/mounting
Mounting position		vertical
Wall mounting/direct mounting		No
Mounting in portrait format possible		Yes
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		35°
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		125 mA
Starting current inrush I²t		0.2 A²·s
Power
Active power input, typ.		3 W
