Siemens 6AG1688-3AF37-2AX0

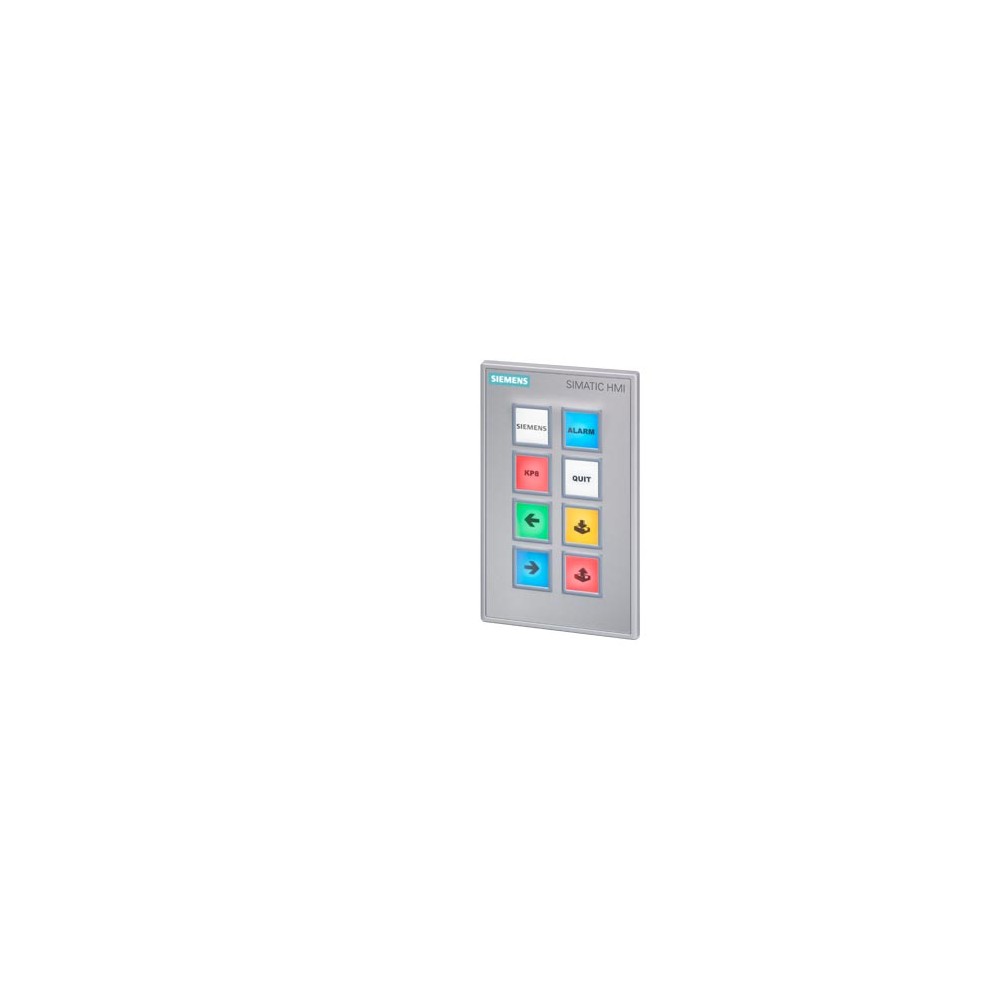

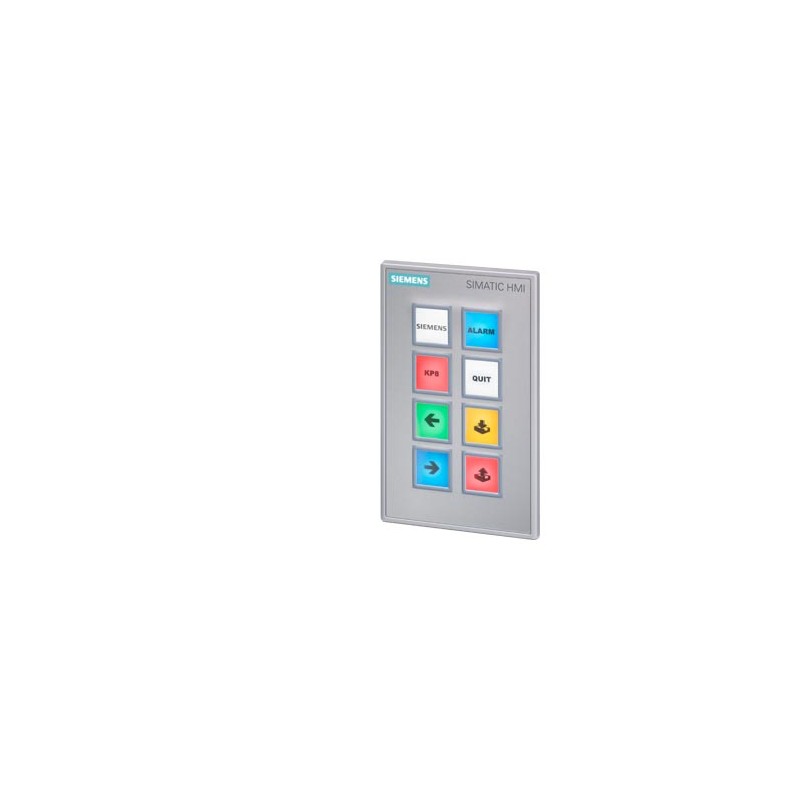

SIPLUS HMI KP8F PN based on 6AV3688-3AF37-0AX0 with conformal coating, -20...+55 °C, Key Panel, 8 short-stroke switches with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 8 DI/DO and 2 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5

General information
Product type designation KP8F PN
based on 6AV3688-3AF37-0AX0
Control elements
With parameterizable keys Yes
Keyboard fonts
● Membrane keyboard
— user-definable label membrane keys Yes
● Function keys
— Number of function keys 8
● Short-stroke keys
— Number of short-stroke keys 8
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O) 8; Adjustable brightness
● Number of color modes for LED 5; red, green, blue, yellow, white
● Direct keys (keys as S7 input I/O) 8
Installation type/mounting
Mounting type Mounting clip
Mounting position vertical
Rack mounting No
Front mounting Yes; Compatible with Extension Units dimensions
Rail mounting No
Wall mounting/direct mounting No
Mounting in portrait format possible Yes
Mounting in landscape format possible Yes
maximum permissible angle of inclination without external ventilation 30°; To the front/rear
Number of slots for command devices and signaling units 0
Supply voltage
Type of supply voltage DC
Rated value (DC) 24 V; 24 V can be looped through connector, interrupted when pulled
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Input current
Current consumption (rated value) 0.3 A
Digital inputs
Number of digital inputs 8; Total inputs and outputs max. 8 and 1x SIL 2 or 2x SIL 3
Input voltage
● Rated value (DC) 24 V
Digital outputs
Number of digital outputs 8; Max. 8 inputs and outputs (total)
Short-circuit protection Yes
Switching capacity of the outputs
● with resistive load, max. 100 mA
Output voltage
● Rated value (DC) 24 V; Non-isolated
Total current of the outputs
● Current per channel, max. 100 mA
● Current per group, max. 800 mA
