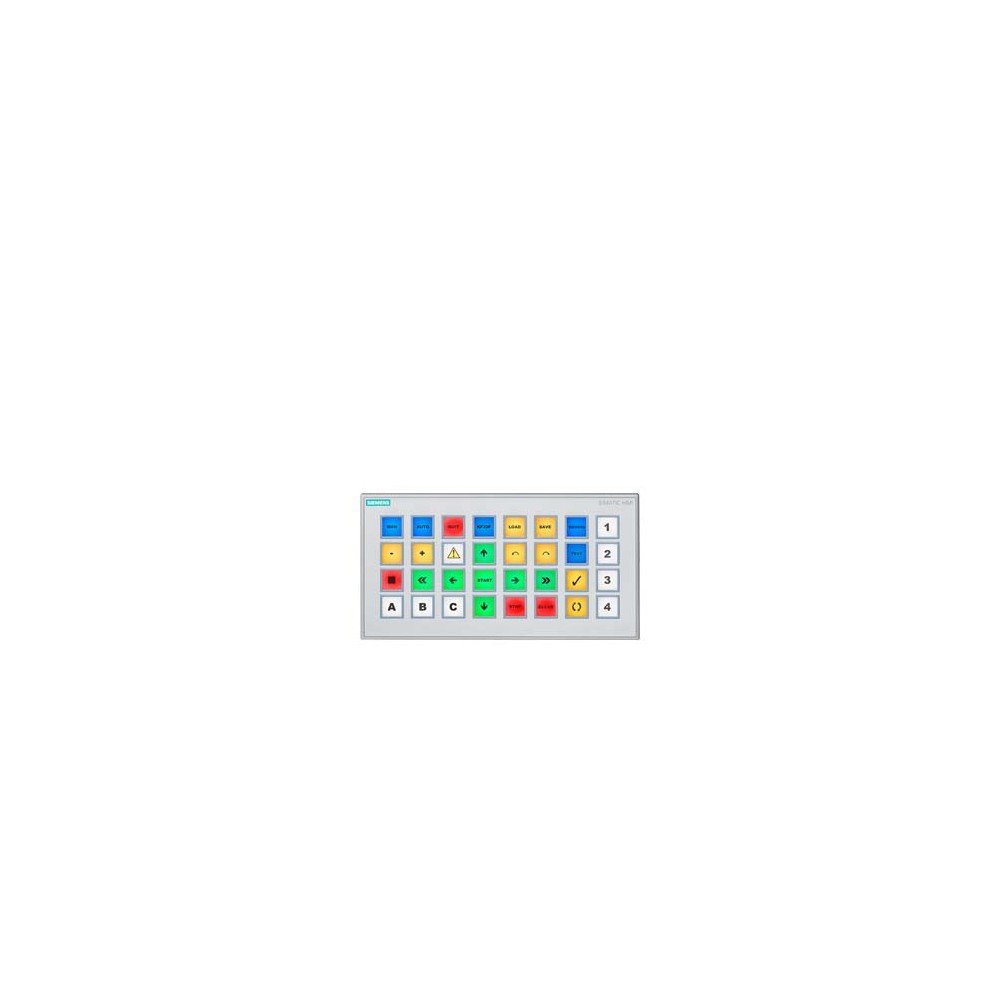

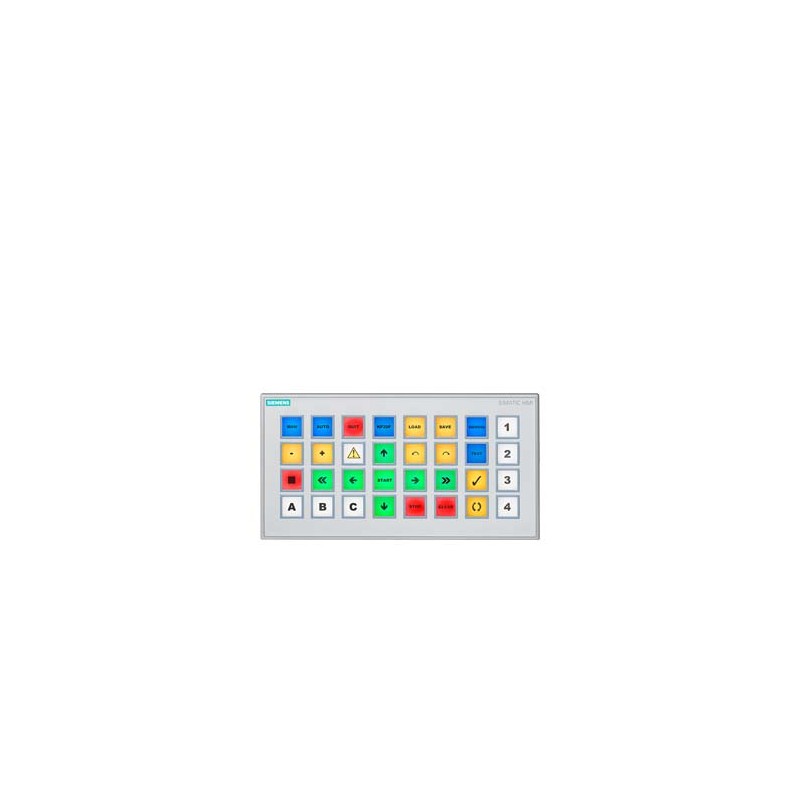

Siemens 6AV3688-3EH47-0AX0

SIMATIC HMI KP32F PN, Key Panel, 32 short-stroke keys with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 16 DI+16 DI/DO, 4 safety DI pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5

General information
Product type designation		KP32F PN
Control elements
With parameterizable keys		Yes
Keyboard fonts
● Membrane keyboard
— user-definable label membrane keys		Yes
● Function keys
— Number of function keys		32
● Short-stroke keys
— Number of short-stroke keys		32
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)		8; Adjustable brightness
● Number of color modes for LED		5; red, green, blue, yellow, white
● Direct keys (keys as S7 input I/O)		32
Installation type/mounting
Mounting type		Mounting clip
Mounting position		vertical
Rack mounting		No
Front mounting		Yes
Rail mounting		No
Wall mounting/direct mounting		No
Mounting in portrait format possible		Yes
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		30°; To the front/rear
Number of slots for command devices and signaling units		0
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V; 24 V looped through at connector, no interruption on pulling
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		1 A
Digital inputs
Number of digital inputs		32; Total inputs and outputs max. 32 and 2x SIL 2 or 4x SIL 3
Input voltage
● Rated value (DC)		24 V
Digital outputs
Number of digital outputs		16; Max. 32 inputs and outputs (total)
Short-circuit protection		Yes
Switching capacity of the outputs
● with resistive load, max.		100 mA
Output voltage
● Rated value (DC)		24 V; Non-isolated
Total current of the outputs
● Current per channel, max.		100 mA
● Current per group, max.		800 mA
