6AV2127-1AB00-0LX1

Condition: New product

More info

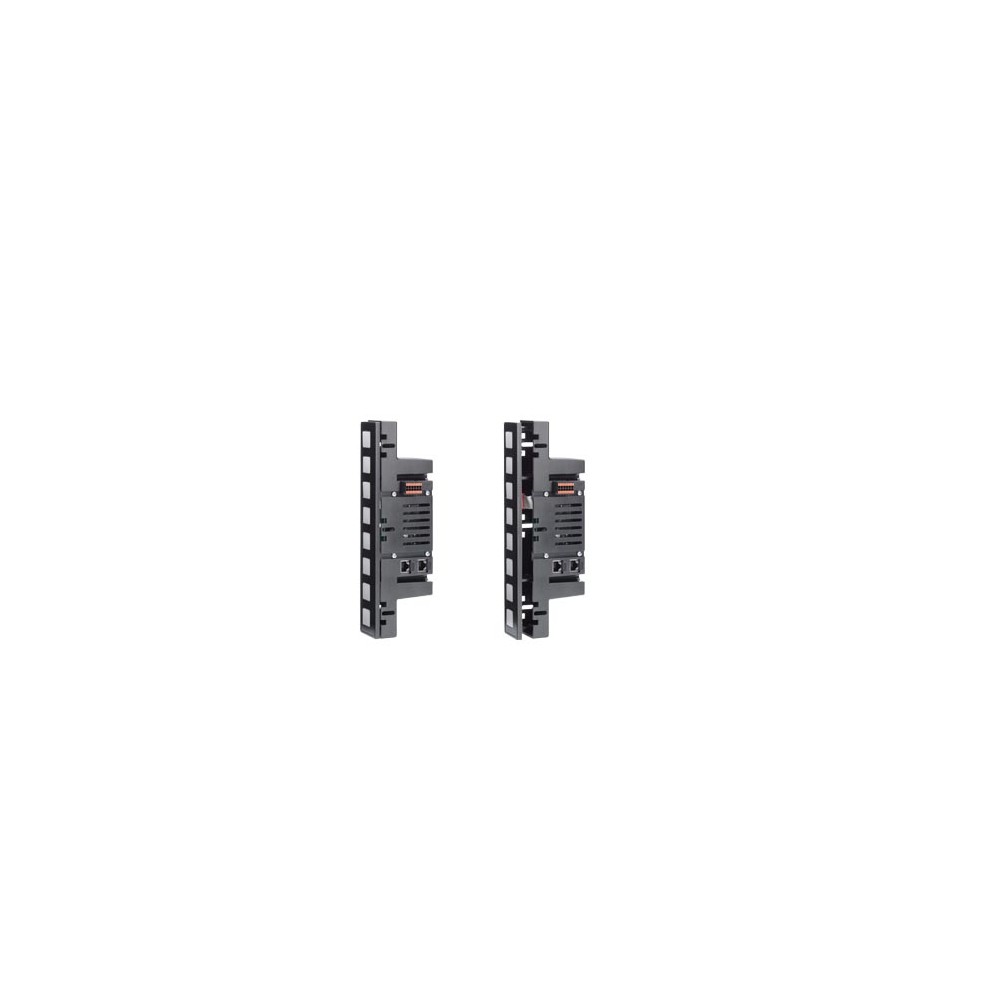

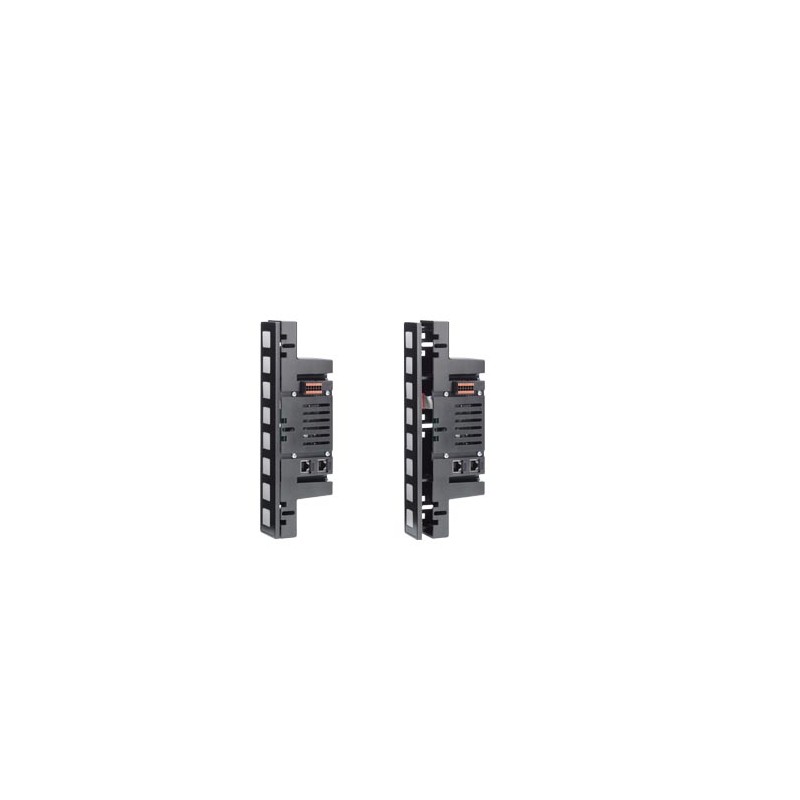

Siemens 6AV2127-1AB00-0LX1

SIMATIC HMI KP8 PN LX, 8 short-stroke switches long, 1-6 mm sheet thickness, PN interfaces, black neutral design, 8 configurable DI/DO pins, 24 V DC can be looped through, parameterizable as of STEP 7 V5.5 -- product expected to be available as of June 2026

General information
Product type designation		Key Panel KP8 PN LX (1 ... 6 mm)
Control elements
With parameterizable keys		Yes
Keyboard fonts
● Membrane keyboard
— user-definable label membrane keys		No; possible via adjacent display
● Function keys		with L-pattern at key edge
— Number of function keys		8; 19 x 19 mm per button
● Short-stroke keys
— Number of short-stroke keys		8
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)		8; Adjustable brightness
● Number of color modes for LED		5; red, green, blue, yellow, white
● Direct keys (keys as S7 input I/O)		8
Installation type/mounting
Mounting type		clamp fastening with additional mounting clips
Mounting position		Horizontal, vertical
Rack mounting		No
Front mounting		Yes; mounting clip - Torx T20 tighten to 0.2 Nm; enclosure - Torx T10 tighten to 0.2 Nm
Rail mounting		No
Wall mounting/direct mounting		No
Mounting in portrait format possible		Yes
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		30°; To the front/rear
Number of slots for command devices and signaling units		0
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V; 24 V can be looped through connector, interrupted when pulled
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		0.3 A
Digital inputs
Number of digital inputs		8; Max. 8 inputs and outputs (total)
Input voltage
● Rated value (DC)		24 V
Digital outputs
Number of digital outputs		8; Max. 8 inputs and outputs (total)
Short-circuit protection		Yes
Switching capacity of the outputs
● with resistive load, max.		100 mA
Output voltage
● Rated value (DC)		24 V; Non-isolated
Total current of the outputs
● Current per channel, max.		100 mA
● Current per group, max.		800 mA
