6ES7226-6RA32-0XB0

Condition: New product

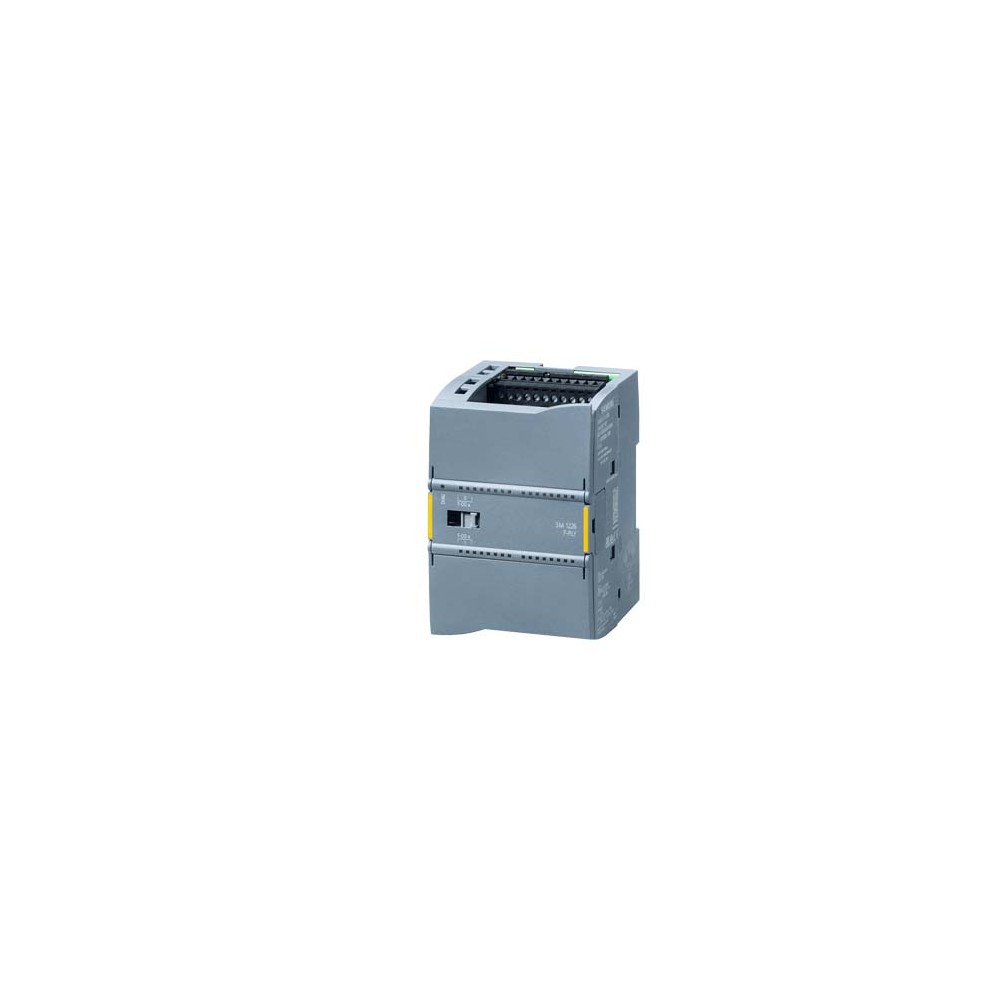

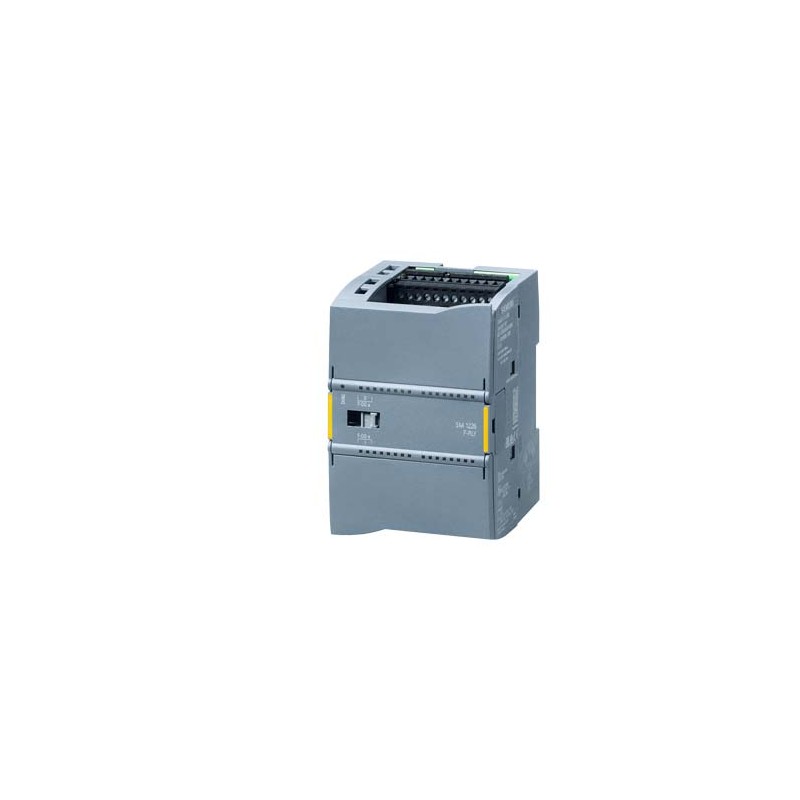

Siemens 6ES7226-6RA32-0XB0

SIMATIC S7-1200, Relay output SM 1226, F-DQ 2x RLY 5A, PROFIsafe, 70 mm overall width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508)

General information
Product type designation		SM 1226, F-DQ 2x relay/5 A
Supply voltage
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
power supply according to NEC Class 2 required		No
Input current
from backplane bus 5 V DC, max.		120 mA
Digital outputs
● from load voltage L+, max.		300 mA
Power loss
Power loss, typ.		10 W
Digital outputs
Number of digital outputs		2
Short-circuit protection		No
Output voltage
● Rated value (DC)		5 V DC to 30 V DC
● Rated value (AC)		5 V AC to 250 V AC
Output current
● for signal "1" permissible range, max.		5 A maximum per circuit and 10 A maximum of all circuits per module
Relay outputs
● Number of relay outputs		2; 2 circuits per output
Switching capacity of contacts
— with inductive load, max.		0.1 Hz, accordance with IEC 60947-5-1, DC-13; 2 Hz, accordance with IEC 60947-5-1, AC-15
— with resistive load, max.		2 Hz
Cable length
● shielded, max.		200 m
● unshielded, max.		200 m
Interrupts/diagnostics/status information
Diagnostics indication LED
● for status of the outputs		Yes
Degree and class of protection
IP degree of protection		IP20
