6ES7226-6DA32-0XB0

Condition: New product

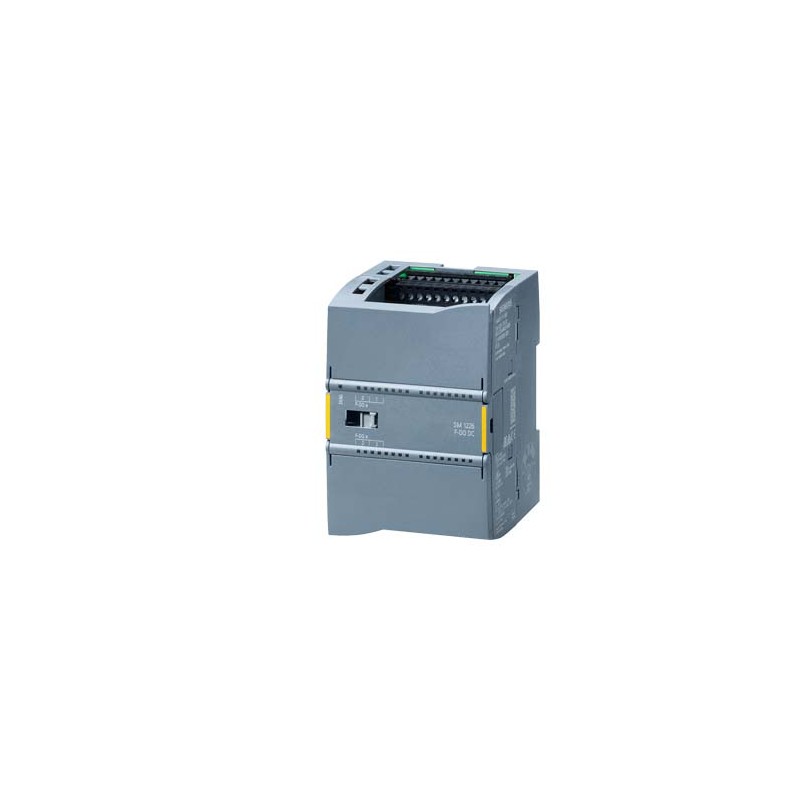

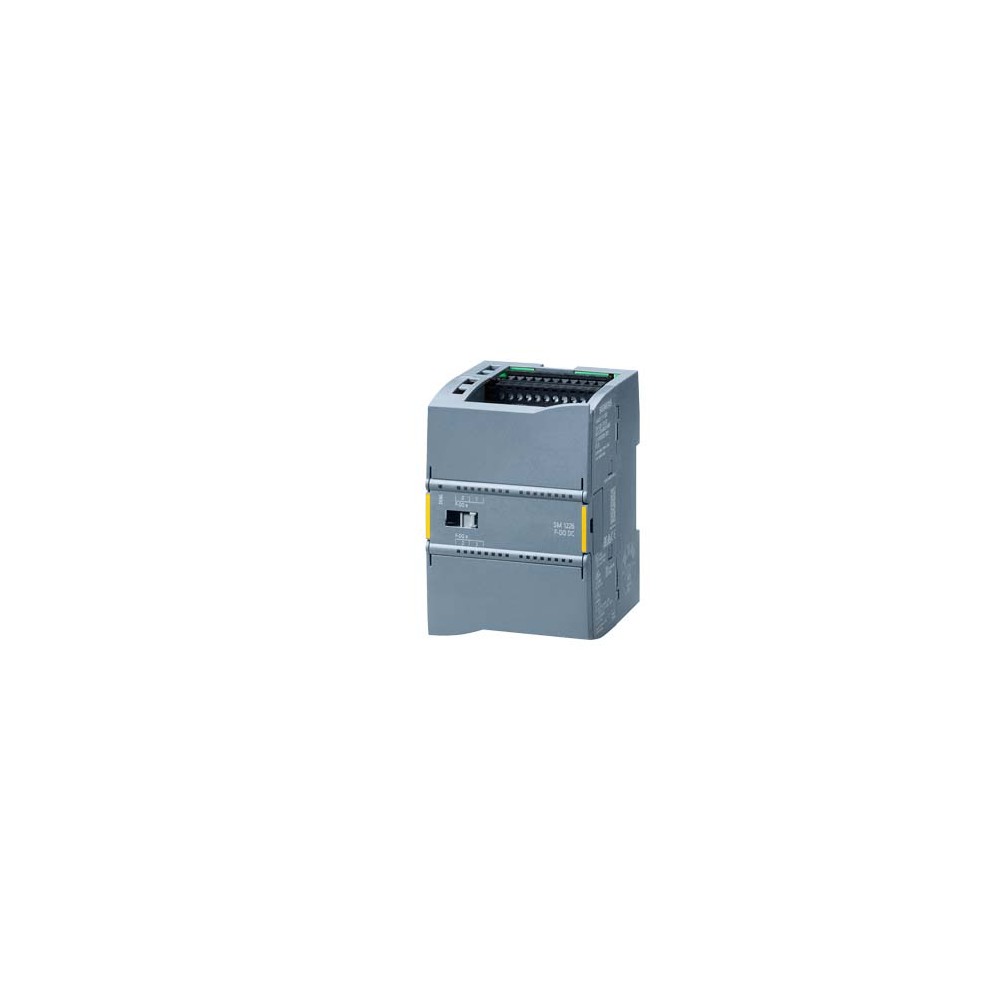

Siemens 6ES7226-6DA32-0XB0

SIMATIC S7-1200, Digital output SM 1226, F-DQ 4x 24 V DC 2A, PROFIsafe, 70 mm overall width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508)

General information
Product type designation		SM 1226 F-DQ 4x 24 VDC
Supply voltage
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
power supply according to NEC Class 2 required		No
Input current
from backplane bus 5 V DC, max.		125 mA
Digital outputs
● from load voltage L+, max.		170 mA
Power loss
Power loss, typ.		8 W
Digital outputs
Number of digital outputs		4
● in groups of		1
Short-circuit protection		Yes
Switching capacity of the outputs
● with resistive load, max.		30 Hz
● on lamp load, max.		10 Hz
Output voltage
● Rated value (DC)		24 V
Output current
● for signal "1" rated value		2 A
● for signal "1" permissible range, max.		10 mA to 2.4 A
● for signal "0" residual current, max.		P-switch: 0.5 mA, maximum; M-switch: 0.5 mA, maximum
Cable length
● shielded, max.		200 m
● unshielded, max.		200 m
Interrupts/diagnostics/status information
Diagnostics indication LED
● for status of the outputs		Yes
Degree and class of protection
IP degree of protection		IP20
