6ES7226-6BA32-0XB0

Condition: New product

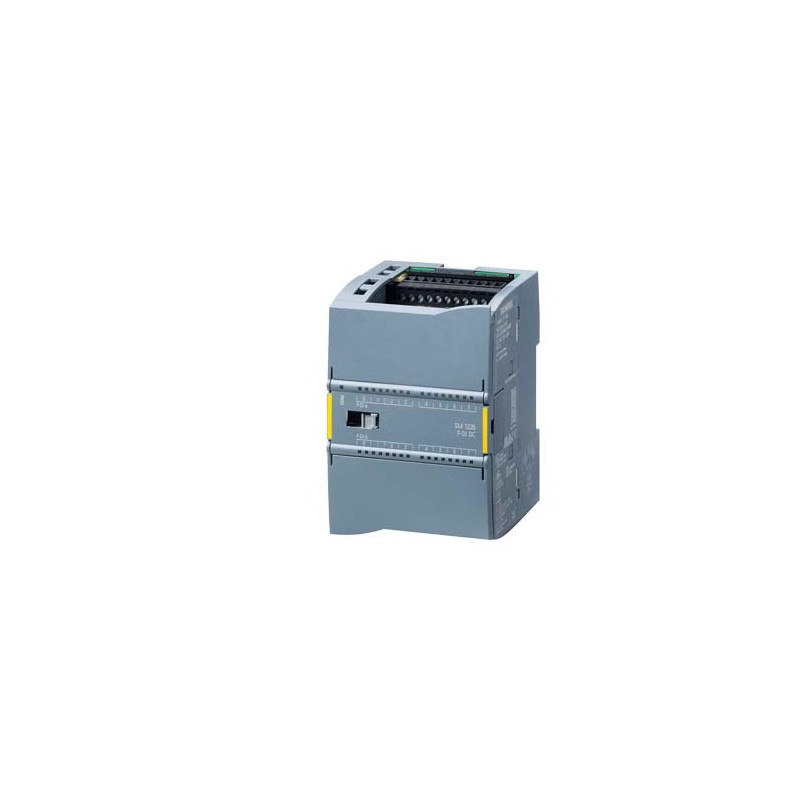

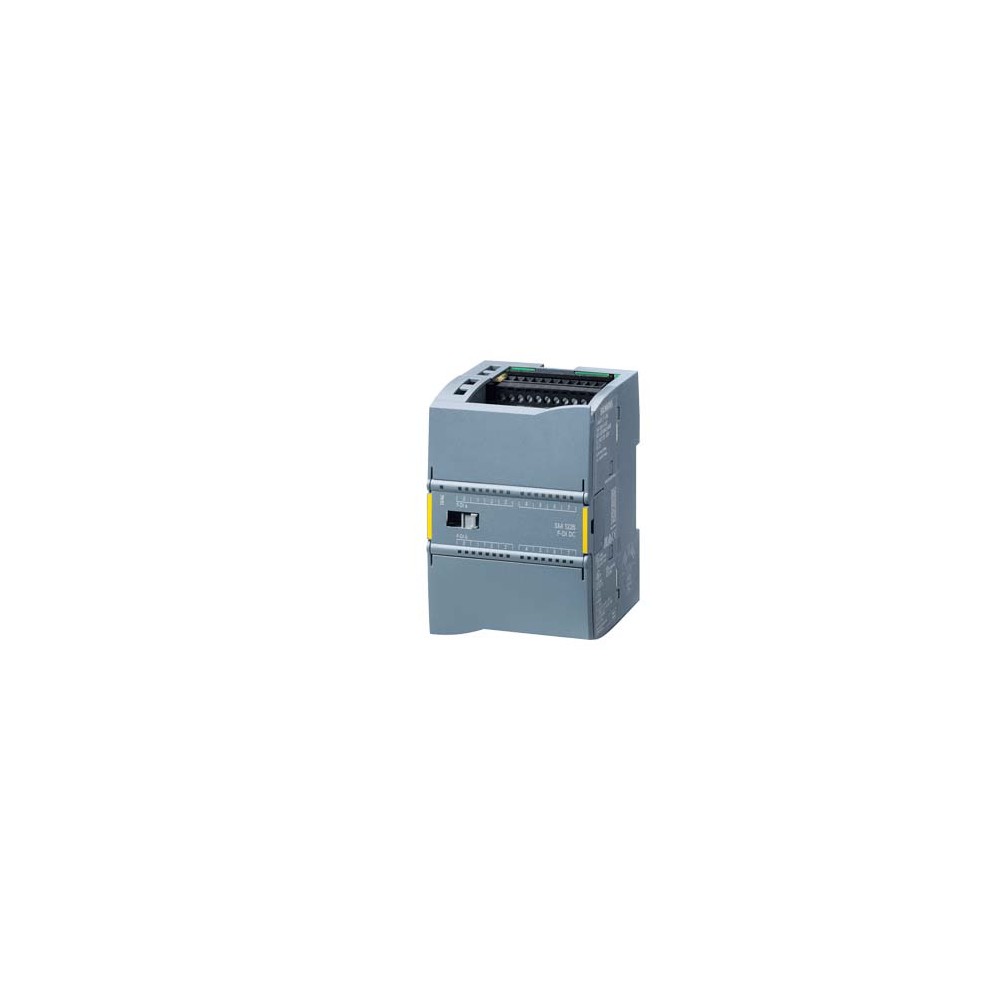

Siemens 6ES7226-6BA32-0XB0

SIMATIC S7-1200, Digital input SM 1226, F-DI 16X 24 V DC, PROFIsafe, 70 mm overall width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508)

General information
Product type designation		SM 1226, F-DI 16x24 V DC
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
power supply according to NEC Class 2 required		No
Input current
from backplane bus 5 V DC, max.		155 mA; Current consumption (SM Bus, 5 V DC): 155 mA
Digital inputs
● from load voltage L+ (without load), max.		130 mA; 130 mA + 6 mA / input used + any Vs1/Vs2 current used
Power loss
Power loss, typ.		7 W
