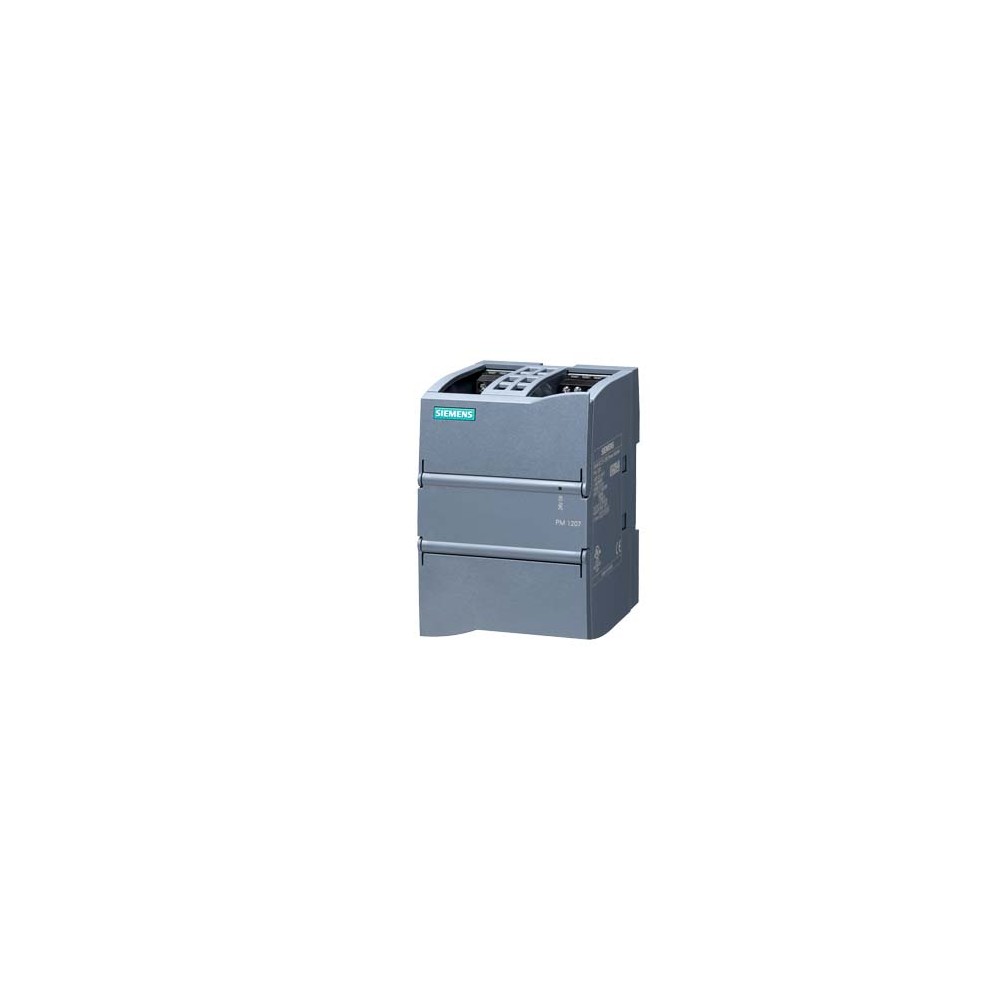

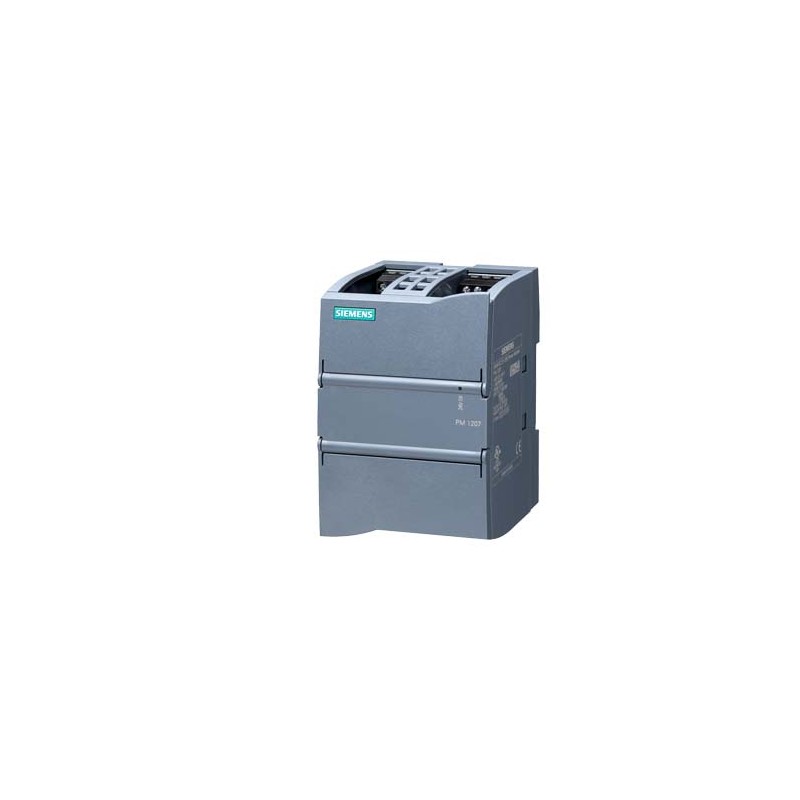

Siemens 6EP1332-1SH71

SIMATIC S7-1200 Power Module PM1207 Stabilized power supply input: 120/230 V AC, output: DC 24 V/2,5 A

Technical Product Detail Page		https://i.siemens.com/1P6EP1332-1SH71
input
type of the power supply network		1-phase AC
supply voltage at AC		Automatic range selection
supply voltage		120 V/230 V
input voltage 1 at AC		85 ... 132 V
input voltage 2 at AC		176 ... 264 V
wide range input		No
overvoltage overload capability		2.3 × Vin rated, 1.3 ms
buffering time for rated value of the output current in the event of power failure minimum		20 ms
operating condition of the mains buffering		at Vin = 93/187 V
line frequency		50/60 Hz
line frequency		47 ... 63 Hz
input current
● at rated input voltage 120 V		1.2 A
● at rated input voltage 230 V		0.67 A
current limitation of inrush current at 25 °C maximum		13 A
duration of inrush current limiting at 25 °C
● maximum		3 ms
I2t value maximum		0.5 A²·s
fuse protection type		T 3,15 A/250 V (not accessible)
fuse protection type in the feeder		Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C
output
voltage curve at output		Controlled, isolated DC voltage
output voltage at DC rated value		24 V
output voltage
● at output 1 at DC rated value		24 V

output voltage adjustable		No; -
relative overall tolerance of the voltage		3 %
relative control precision of the output voltage
● on slow fluctuation of input voltage		0.1 %
● on slow fluctuation of ohm loading		0.2 %
residual ripple
● maximum		150 mV
voltage peak
● maximum		240 mV
display version for normal operation		Green LED for 24 V OK
behavior of the output voltage when switching on		No overshoot of Vout (soft start)
response delay maximum		6 s; 2 s at 230 V, 6 s at 120 V
voltage increase time of the output voltage
● typical		10 ms
output current
● rated value		2.5 A
● rated range		0 ... 2.5 A

supplied active power typical		60 W
short-term overload current
● on short-circuiting during the start-up typical		6 A
● at short-circuit during operation typical		6 A
duration of overloading capability for excess current
● on short-circuiting during the start-up		100 ms
● at short-circuit during operation		100 ms
bridging of equipment		Yes
number of parallel-switched equipment resources for increasing the power		2
efficiency
efficiency in percent		83 %
power loss [W]
● at rated output voltage for rated value of the output current typical		12 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical		0.3 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical		3 %
setting time
● load step 50 to 100% typical		5 ms
● load step 100 to 50% typical		5 ms
setting time
● maximum		5 ms
protection and monitoring
design of the overvoltage protection		< 33 V
property of the output short-circuit proof		Yes
design of short-circuit protection		Constant current characteristic
● typical		2.65 A
enduring short circuit current RMS value
● typical		2.7 A
safety
galvanic isolation between input and output		Yes
galvanic isolation		Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
operating resource protection class		Class I
leakage current
● maximum		3.5 mA
protection class IP		IP20
