6GK7243-8RX30-0XE0

Condition: New product

More info

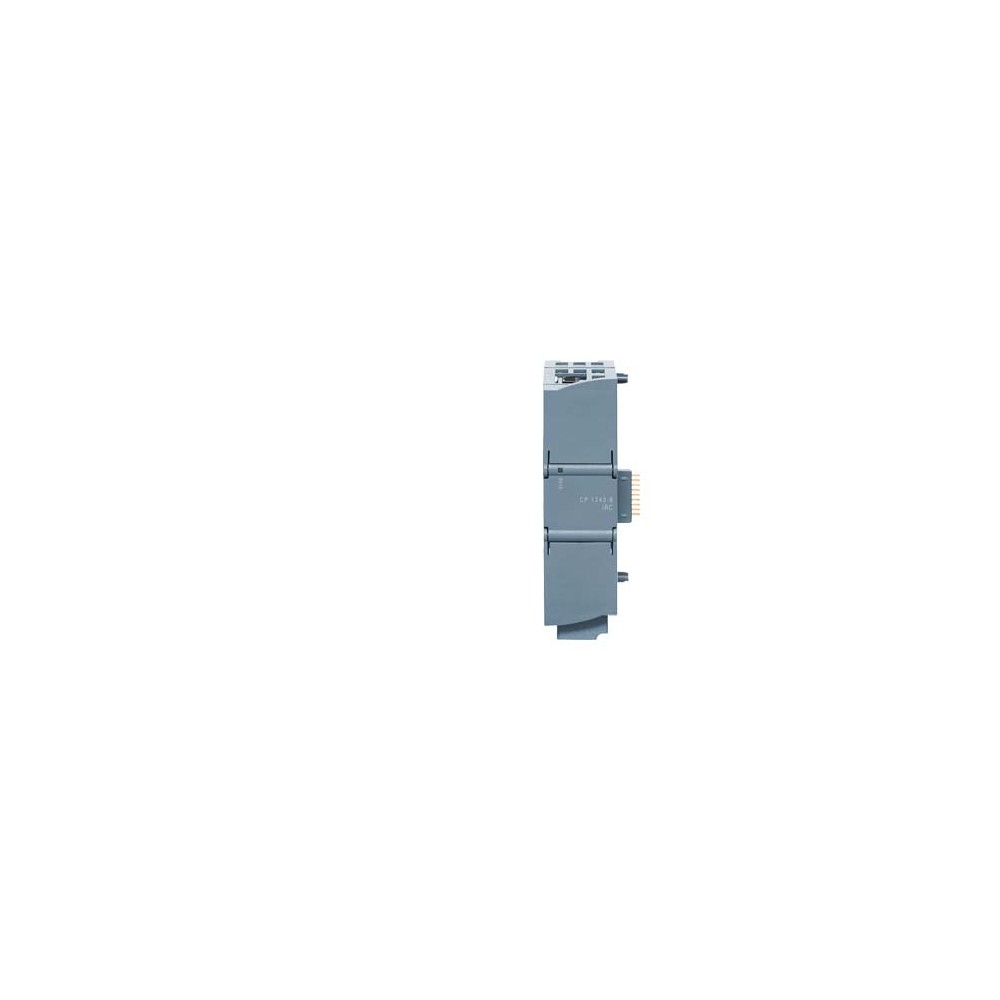

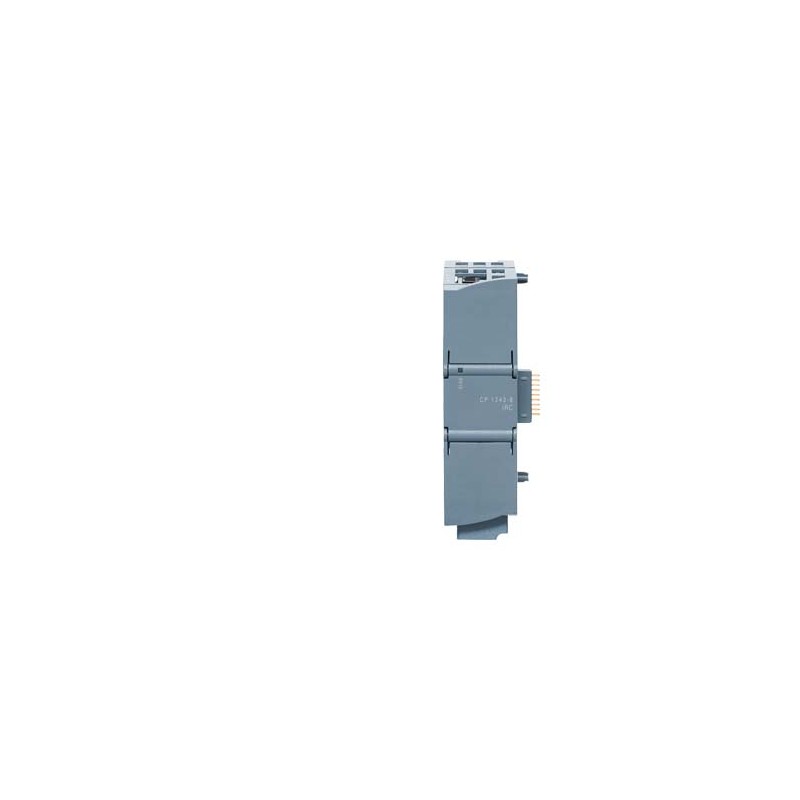

Siemens 6GK7243-8RX30-0XE0

Communications processor CP 1243-8 IRC for operating a SIMATIC S7-1200 in the TeleControl system Professional; for SINAUT ST7; DNP3; IEC 60870-5, station type: RTU; WAN connections;1) Ethernet 2) Additionally expandable with TS module RS-232 or TS module modem or TS module GSM or TS module ISDN; Operation with TIM modules possible.

product type designation		CP 1243-8 IRC
Technical Product Detail Page		https://i.siemens.com/1P6GK7243-8RX30-0XE0
transfer rate
transfer rate
● at the 1st interface		10 ... 100 Mbit/s
● at the 2nd interface		0.3 ... 115.2 kbit/s
interfaces
number of interfaces / according to Industrial Ethernet		1
number of electrical connections
● at the 1st interface / according to Industrial Ethernet		1
● for power supply		1
type of electrical connection
● at the 1st interface / according to Industrial Ethernet		RJ45 port
type of electrical connection
● at interface 2 / for external data transmission		Interface to the TS Module
● for power supply		3-pole terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltage		DC
supply voltage / 1 / from backplane bus		5 V
supply voltage / external		24 V
supply voltage / external		19.2 ... 28.8 V
supply voltage / external / at DC / rated value		24 V
supply voltage / external / at DC / rated value		19.2 ... 28.8 V
consumed current
● from backplane bus / at DC / at 5 V / typical		0.25 A
● from external supply voltage / at DC / at 24 V / typical		0.1 A
power loss [W]		2.4 W; 1.25 W from S7-1200 backplane without TS module. 2.4 W from 24 V DC external with TS module
ambient conditions
ambient temperature
● for vertical installation / during operation		-20 ... +60 °C
● for horizontally arranged busbars / during operation		-20 ... +70 °C
● during storage		-40 ... -70 °C
● during transport		-40 ... +70 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum		95 %
protection class IP		IP20
