6ES7221-3BD30-0XB0

Condition: New product

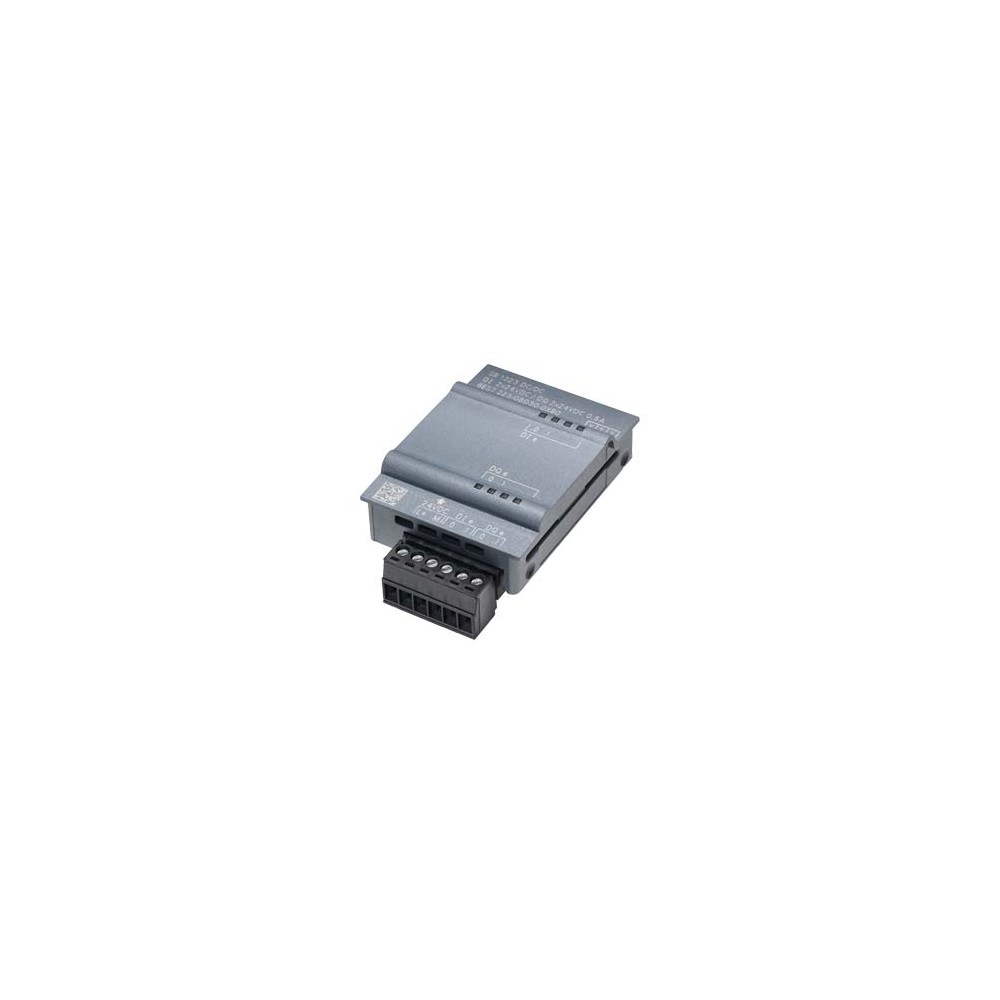

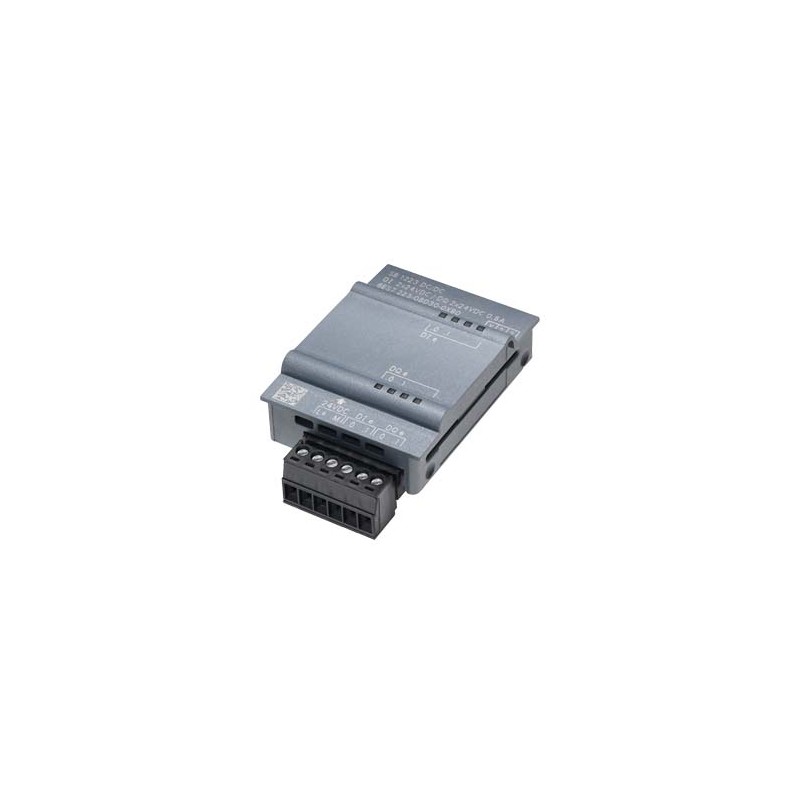

Siemens 6ES7221-3BD30-0XB0

SIMATIC S7-1200, Digital input SB 1221, 4 DI, 24 V DC 200 kHz, Sourcing input

General information
Product type designation		SB 1221, DI 4x24 V DC 200 kHz
Input current
from backplane bus 5 V DC, typ.		40 mA
Power loss
Power loss, typ.		1 W
Digital inputs
Number of digital inputs		4; Current-sourcing
● in groups of		4
Input voltage
● Rated value (DC)		24 V
● for signal "0"		(L+ minus 5.0 V DC) ... L+ (1.4 ... 0 mA)
● for signal "1"		0 V ... (L+ minus 10 V DC (10 ... 2.9 mA))
Input current
● for signal "0", max. (permissible quiescent current)		1.4 mA
● for signal "1", min.		2.9 mA
● for signal "1", typ.		7 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable		Yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms
for interrupt inputs
— parameterizable		Yes
for technological functions
— parameterizable		Yes
Cable length
● shielded, max.		50 m; shielded, twisted pair
