New

6ES7223-3AD30-0XB0

Condition: New product

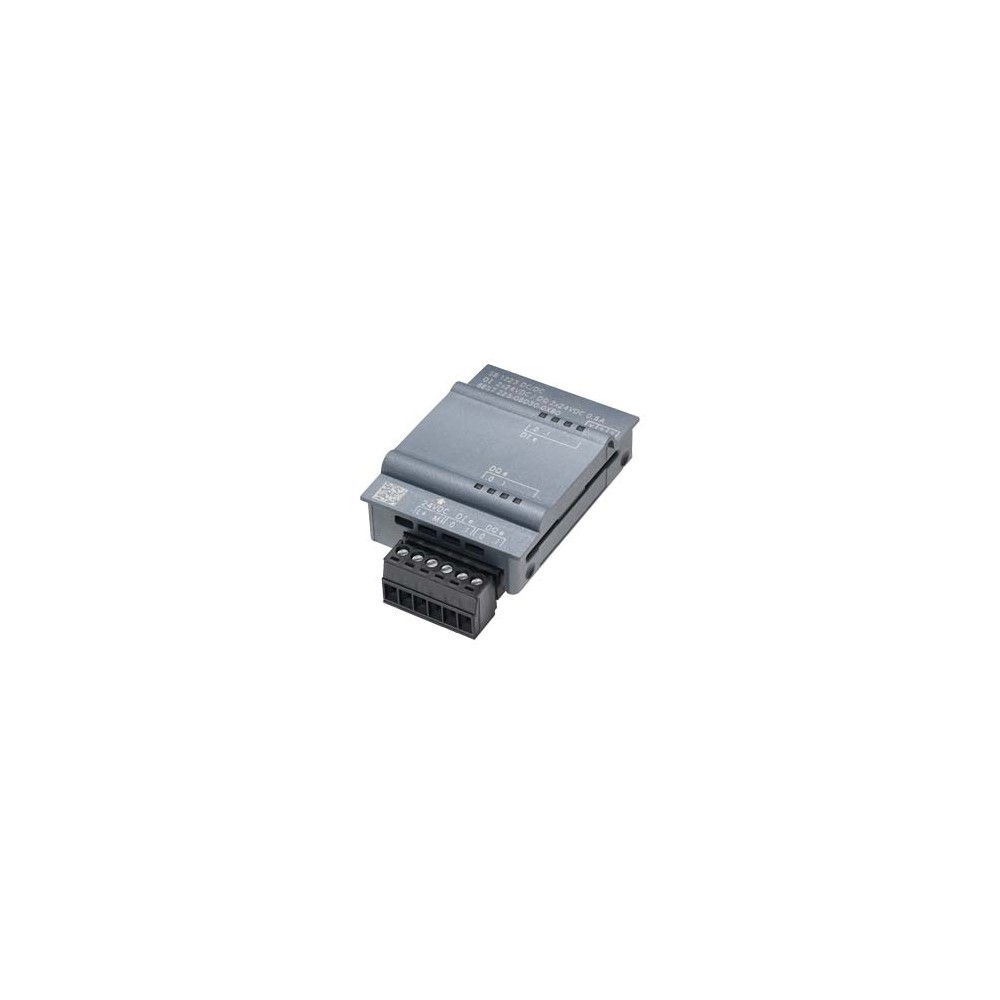

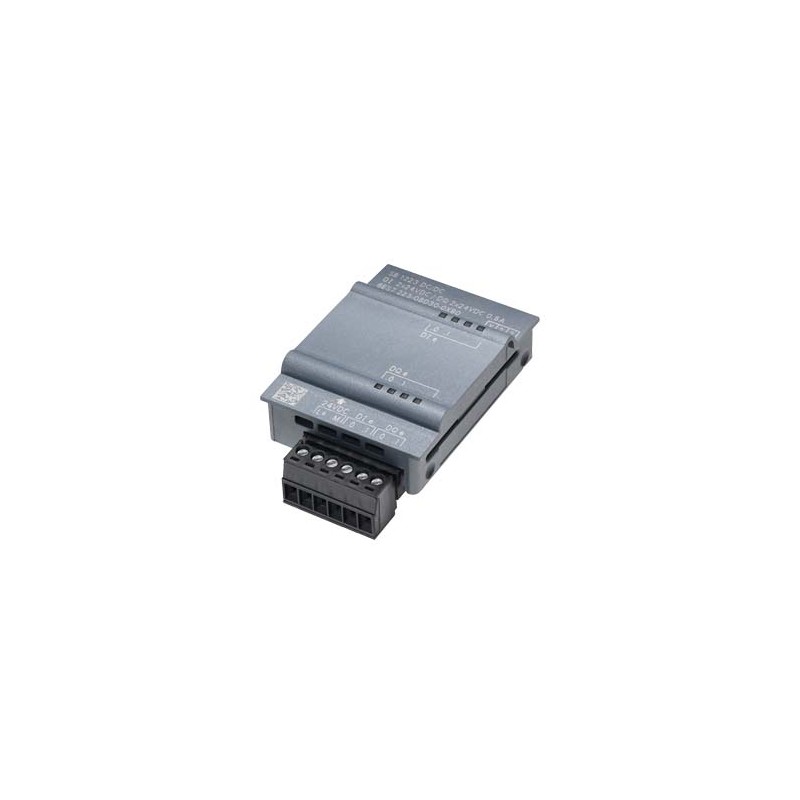

Siemens 6ES7223-3AD30-0XB0

SIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DQ, 5V DC 200kHz

General information
Product type designation		SB 1223, DI 2x5 V DC/DQ 2x5 V DC 200 kHz
Input current
from backplane bus 5 V DC, typ.		35 mA
Power loss
Power loss, typ.		0.5 W
Digital inputs
Number of digital inputs		2; Current-sourcing
● in groups of		2
Input voltage
● Rated value (DC)		5 V
● for signal "0"		(L+ minus 1.0 V DC) ... L+
● for signal "1"		0 V ... (L+ minus 2.0 V DC)
Input current
● for signal "0", max. (permissible quiescent current)		2.2 mA
● for signal "1", min.		5.1 mA
● for signal "1", typ.		15 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable		Yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms
for interrupt inputs
— parameterizable		Yes
for technological functions
— parameterizable		Yes
Cable length
● shielded, max.		50 m; shielded, twisted pair
Digital outputs
Number of digital outputs		2; MOSFET, solid-state (current-sinking/current-sourcing)
● in groups of		2
Short-circuit protection		No
Switching capacity of the outputs
● with resistive load, max.		0.1 A
Load resistance range
● upper limit		7 Ω
Output voltage
● Rated value (DC)		5 V
● for signal "0", max.		0.2 V
● for signal "1", min.		L+ minus 0.7 V DC
● for signal "1", max.		6 V
Output current
● for signal "1" rated value		0.1 A
● for signal "1" permissible range, max.		0.1 A
Cable length
● shielded, max.		50 m
