6ES7214-1BG40-0XB0
New

6ES7214-1BG40-0XB0

New product

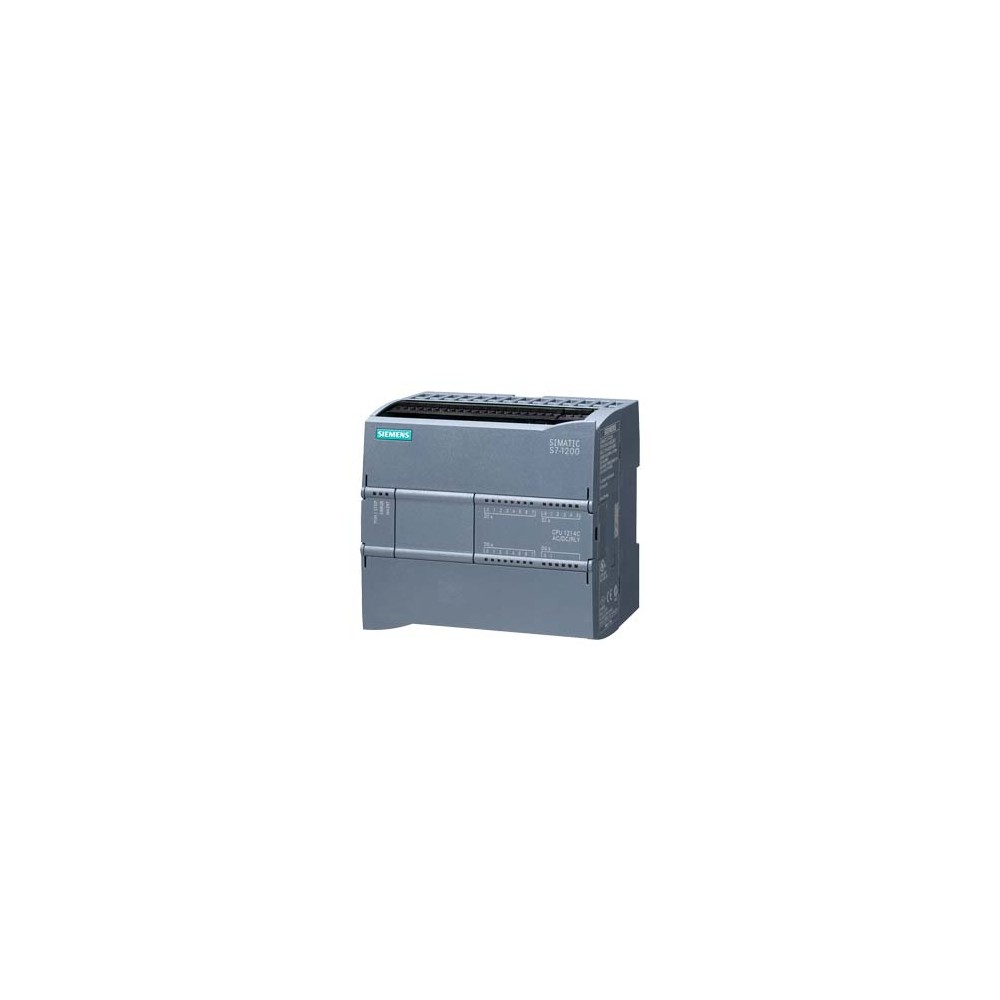

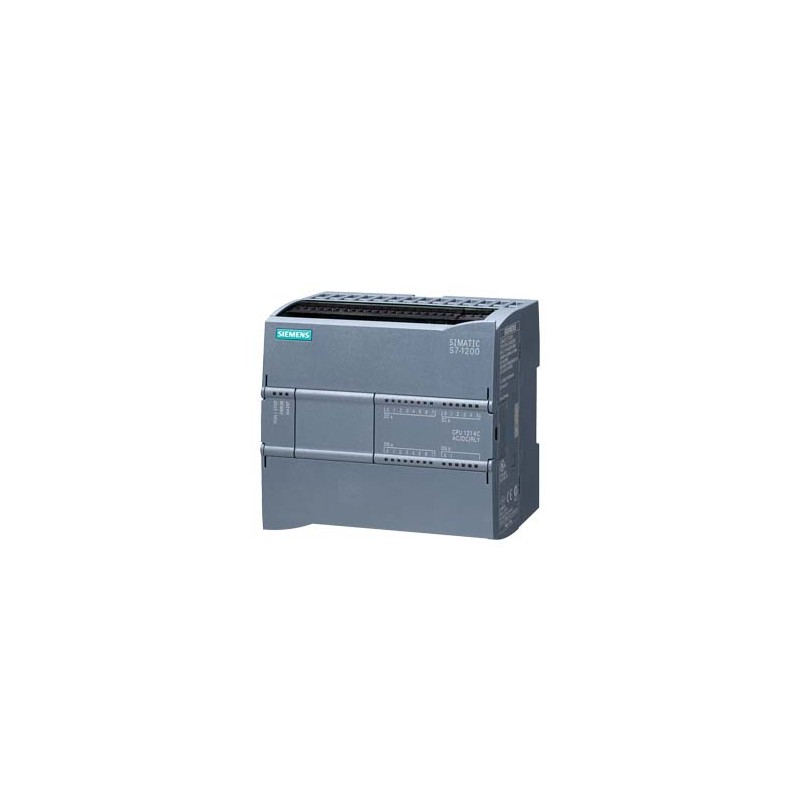

Siemens 6ES7214-1BG40-0XB0

SIMATIC S7-1200, CPU 1214C, compact CPU, AC/DC/relay, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC, power supply: AC 85-264 V AC at 47-63 Hz, program/data memory 150 KB

General information
Product type designation CPU 1214C AC/DC/relay
Firmware version V4.7
Engineering with
● Programming package STEP 7 V20 or higher
Supply voltage
Rated value (AC)
● 120 V AC Yes
● 230 V AC Yes
permissible range, lower limit (AC) 85 V
permissible range, upper limit (AC) 264 V
Line frequency
● permissible range, lower limit 47 Hz
● permissible range, upper limit 63 Hz
Input current
Current consumption (rated value) 100 mA at 120 V AC; 50 mA at 240 V AC
Current consumption, max. 300 mA at 120 V AC; 150 mA at 240 V AC
Inrush current, max. 20 A; at 264 V
I²t 0.8 A²·s
Output current
for backplane bus (5 V DC), max. 1 600 mA; Max. 5 V DC for SM and CM
Encoder supply
24 V encoder supply
● 24 V 20.4 to 28.8V
Power loss
Power loss, typ. 14 W
