6ES7212-1HE40-0XB0

Condition: New product

More info

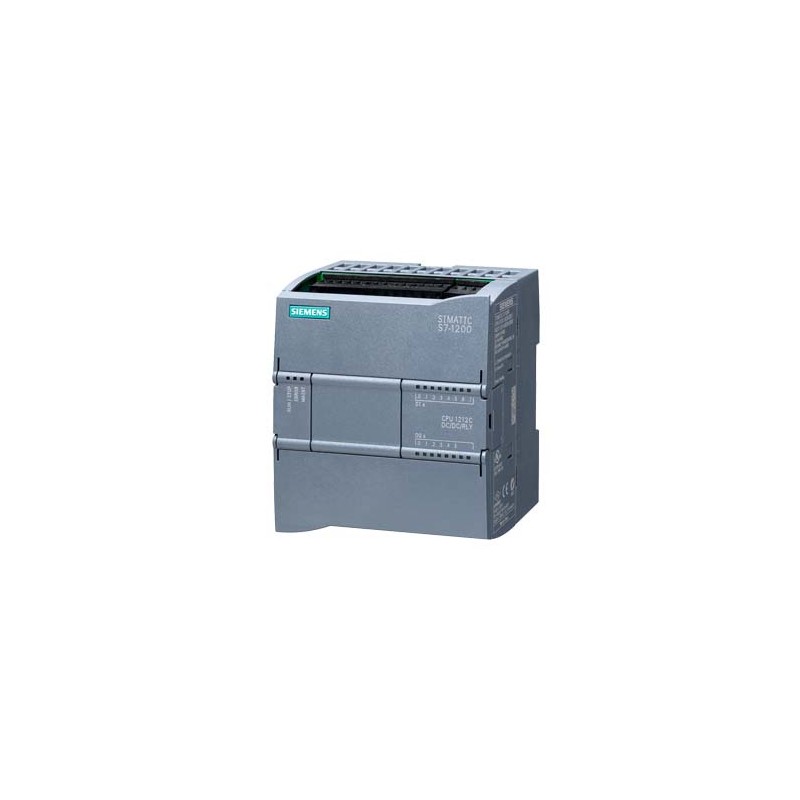

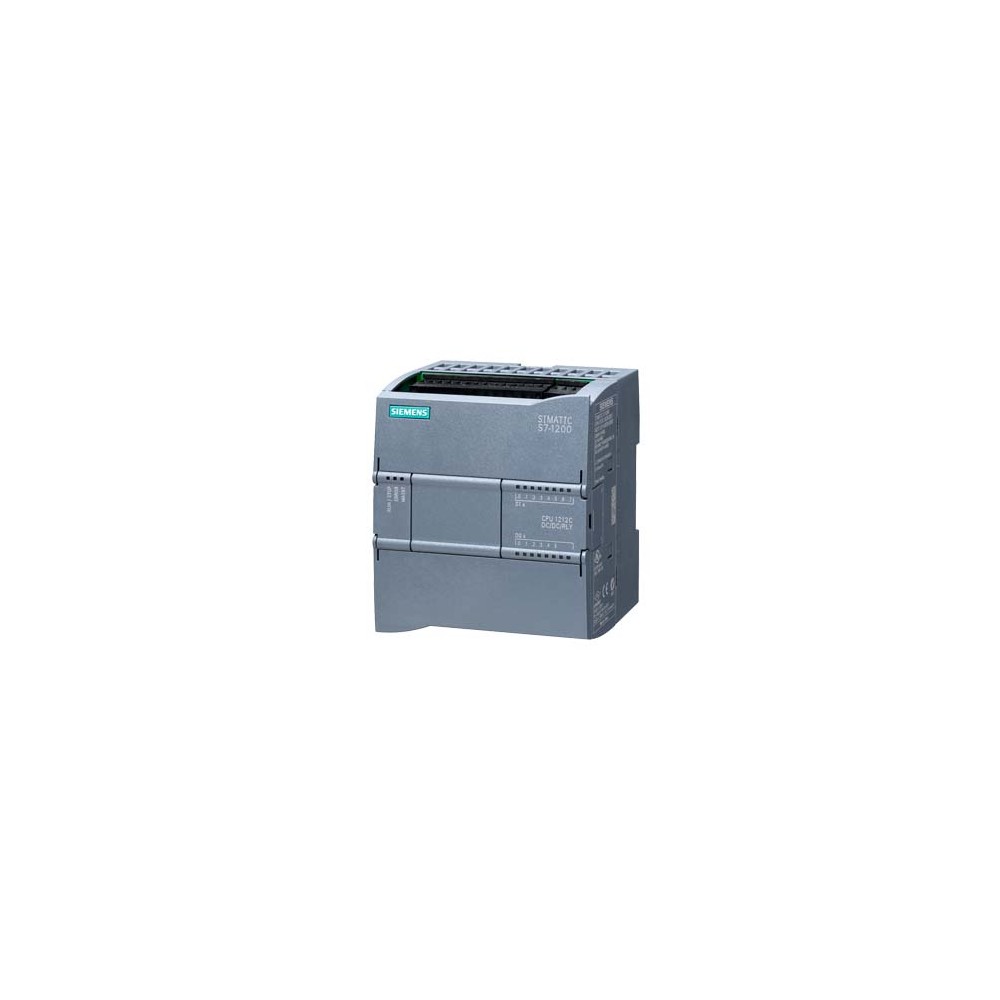

Siemens 6ES7212-1HE40-0XB0

SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/relay, onboard I/O: 8 DI 24 V DC; 6 DO relay 2 A; 2 AI 0-10 V DC, power supply: DC 20.4-28.8 V DC, program/data memory 100 KB

General information
Product type designation		CPU 1212C DC/DC/relay
Firmware version		V4.7
Engineering with
● Programming package		STEP 7 V20 or higher
Supply voltage
Rated value (DC)
● 24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Load voltage L+
● Rated value (DC)		24 V
● permissible range, lower limit (DC)		20.4 V
● permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		400 mA; CPU only
Current consumption, max.		1 200 mA; CPU with all expansion modules
Inrush current, max.		12 A; at 28.8 V
I²t		0.8 A²·s
Output current
for backplane bus (5 V DC), max.		1 000 mA; Max. 5 V DC for SM and CM
Encoder supply
24 V encoder supply
● 24 V		L+ minus 4 V DC min.
Power loss
Power loss, typ.		9 W
