6ES7212-1HF50-0XB0

Condition: New product

More info

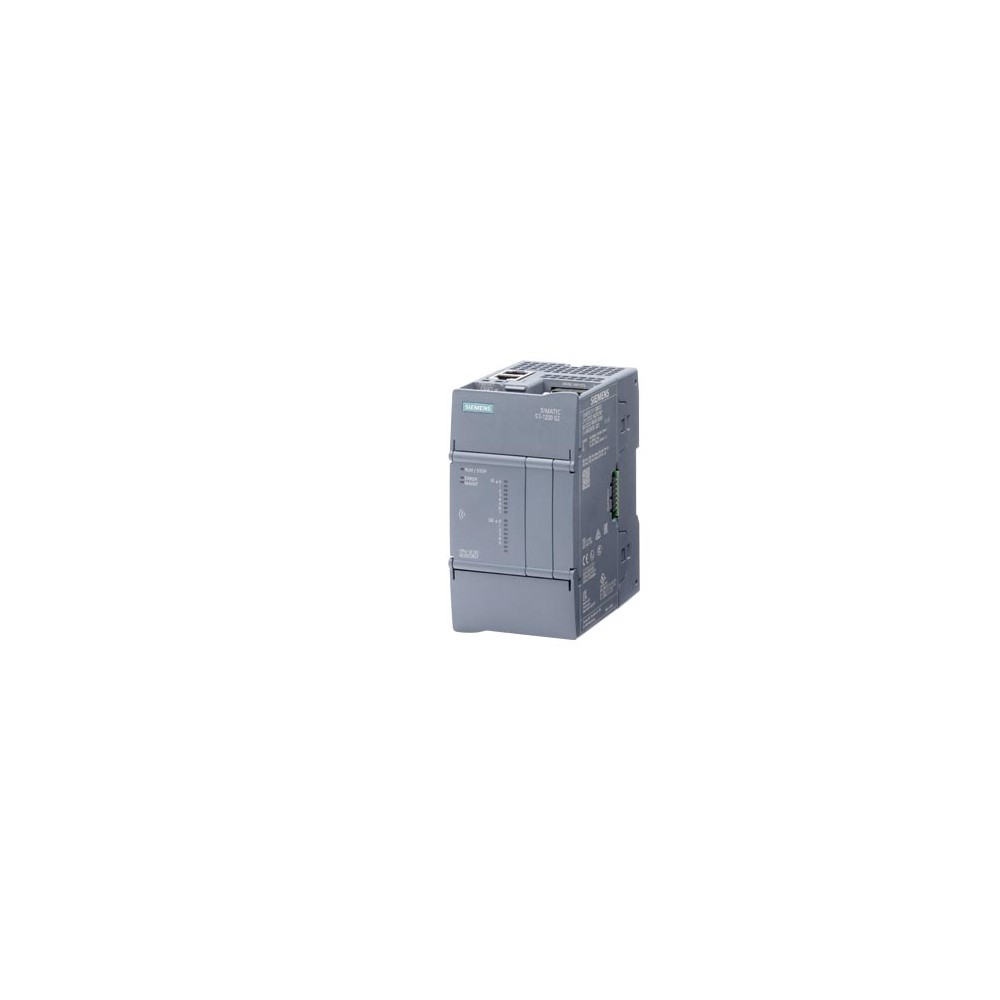

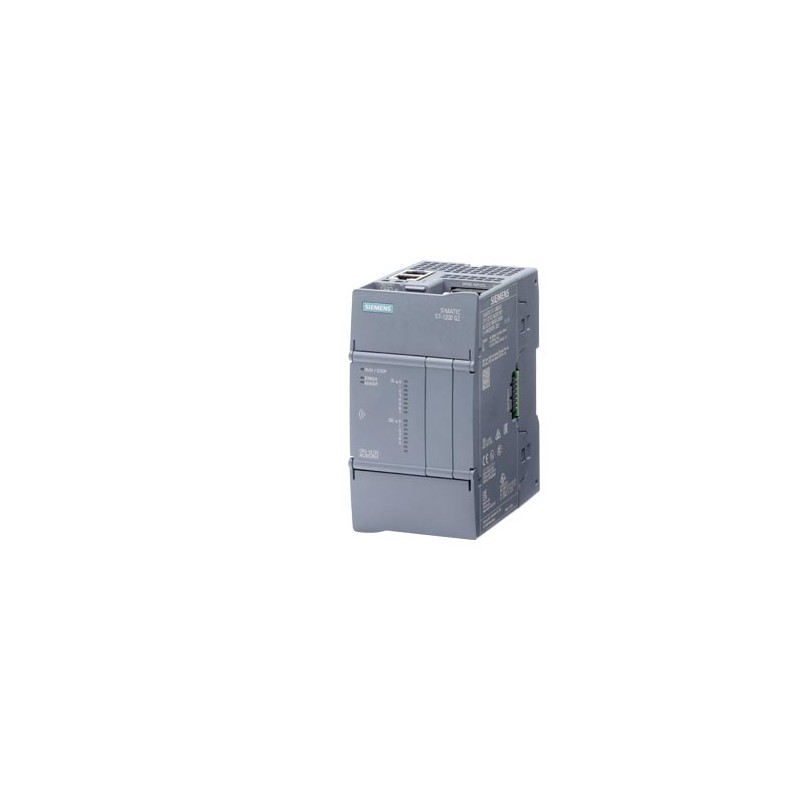

Siemens 6ES7212-1HF50-0XB0

SIMATIC S7-1200 G2: failsafe compact CPU 1212FC DC/DC/RLY; power supply: DC 20.4-28.8 V DC; onboard I/O: 8x DI 24 V DC; 6 DO relay 2 A; memory: program 200 KB data: 500 KB, retentivity: 20 KB

General information
Product type designation		CPU 1212FC DC/DC/Relay
Firmware version		V1.0
Product function
● I&M data		Yes; I&M0 to I&M3
● SysLog		Yes
Engineering with
● Programming package		STEP 7 V20 or higher
Supply voltage
Rated value (DC)
● 24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Input current
Current consumption (rated value)		185 mA; CPU only
Current consumption, max.		765 mA; CPU with all expansion modules
Inrush current, max.		12 A; at 28.8 V DC
I²t		0.5 A²·s
Output current
for backplane bus (5 V DC), max.		1 000 mA; Max. 5 V DC for SM and CM
Encoder supply
24 V encoder supply
● 24 V		Yes; L+ minus 4 V DC min.
● Short-circuit protection		Yes
● Output current, max.		300 mA
Power loss
Power loss, typ.		3 W
