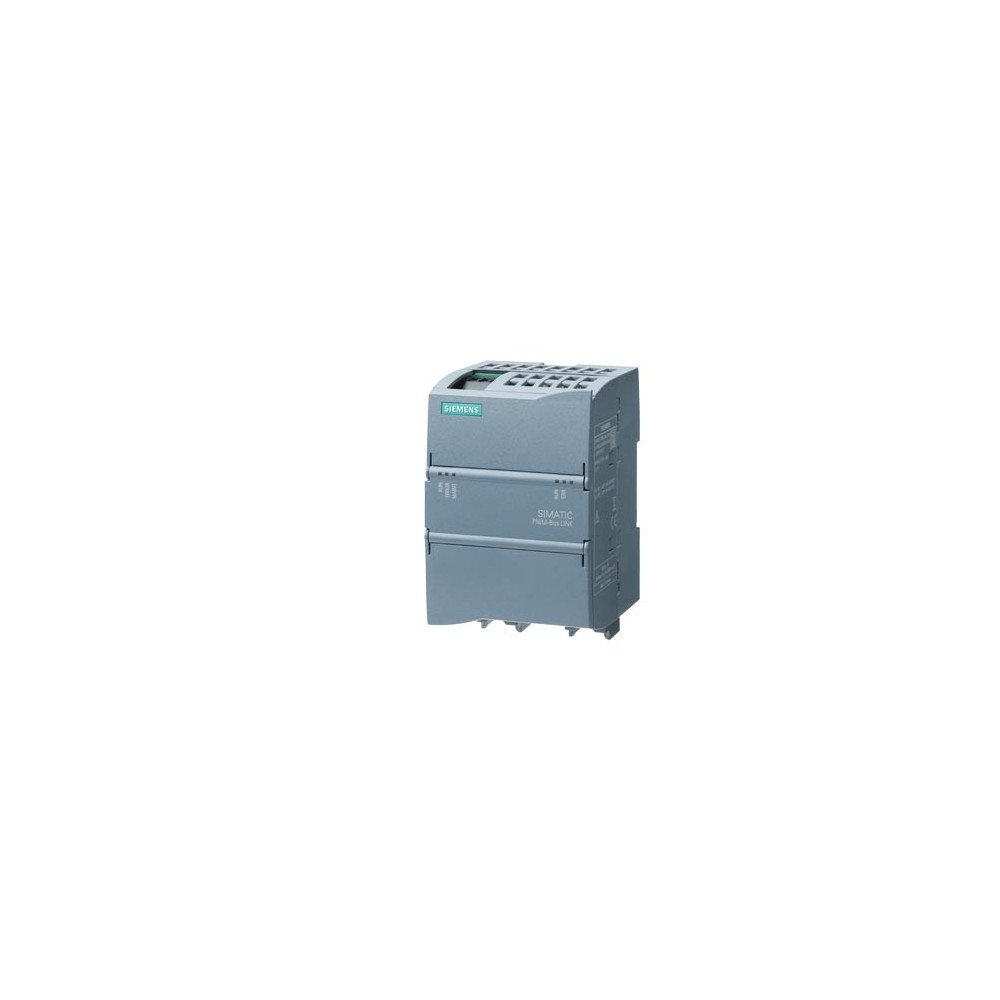

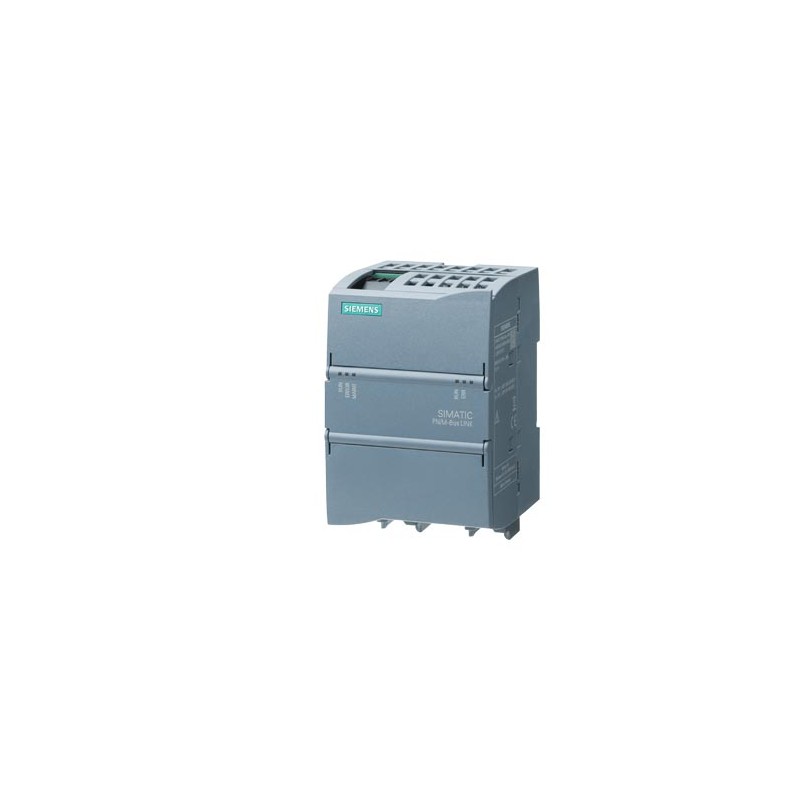

Siemens 6BK1622-0AA00-0AA0

SIMATIC PN/M-Bus LINK coupling module for Profinet to M-Bus Fieldbus, M-Bus Master, IP20

General information
Product type designation		PN/M-Bus LINK
Firmware version		V1.0.0
● FW update possible		Yes
Product function
● I&M data		Yes
● Isochronous mode		No
Engineering with
● STEP 7 TIA Portal configurable/integrated from version		STEP 7 V15 or higher
Installation type/mounting
Mounting		DIN rail, wall mounting, portrait mounting
Mounting position		any
Recommended mounting position		Horizontal
Rail mounting		Yes
Control cabinet installation		Yes
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Overvoltage protection		Yes
Short-circuit protection		Yes
Mains buffering
● Mains/voltage failure stored energy time		10 ms; PN side
Input current
Current consumption (rated value)		0.11 A; At 24 V and 5 loads
Current consumption, max.		0.4 A; At 20.4 V, 40 loads + 100 mA short-circuit current
Power loss
Power loss, typ.		2.4 W
Interfaces
Supports protocol for PROFINET IO
● automatic detection of transmission rate		No
● Transmission rate, max.		100 Mbit/s
● Number of RJ45 ports		2
● Number of FC (FastConnect) connections		2
PROFINET functions
● Assignment of the IP address, supported		Yes
● Assignment of the device name, supported		Yes
1. Interface
Interface type		M-Bus master
Isolated		No
Interface types
● Number of ports		1
● Design of the connection		3-wire screw-type terminal
M-Bus
● Bus voltage, typ.		36 V
● Transmission rate, min.		300 bit/s
● Transmission rate, max.		9 600 bit/s
● max. number of devices		40
● Short-circuit detection		Yes
● short-circuit proof		Yes
● Connectable conductor cross-section		1.5 mm²
● Cable length, max.		300 m
2. Interface
Interface type		PROFINET
Isolated		Yes; 1 500 V AC or 2 250 V DC
Interface types
● RJ 45 (Ethernet)		Yes
● Number of ports		2
● integrated switch		Yes
Protocols
● PROFINET IO Device		Yes
Interrupts/diagnostics/status information
Status indicator		Yes
Alarms		Yes
Diagnostics function		Yes
Diagnostics indication LED
● RUN LED		Yes
● ERROR LED		Yes
● MAINT LED		Yes
● LINK LED		Yes
● RX/TX LED		Yes
Potential separation
Potential separation exists		Yes
Degree and class of protection
IP degree of protection		IP20
