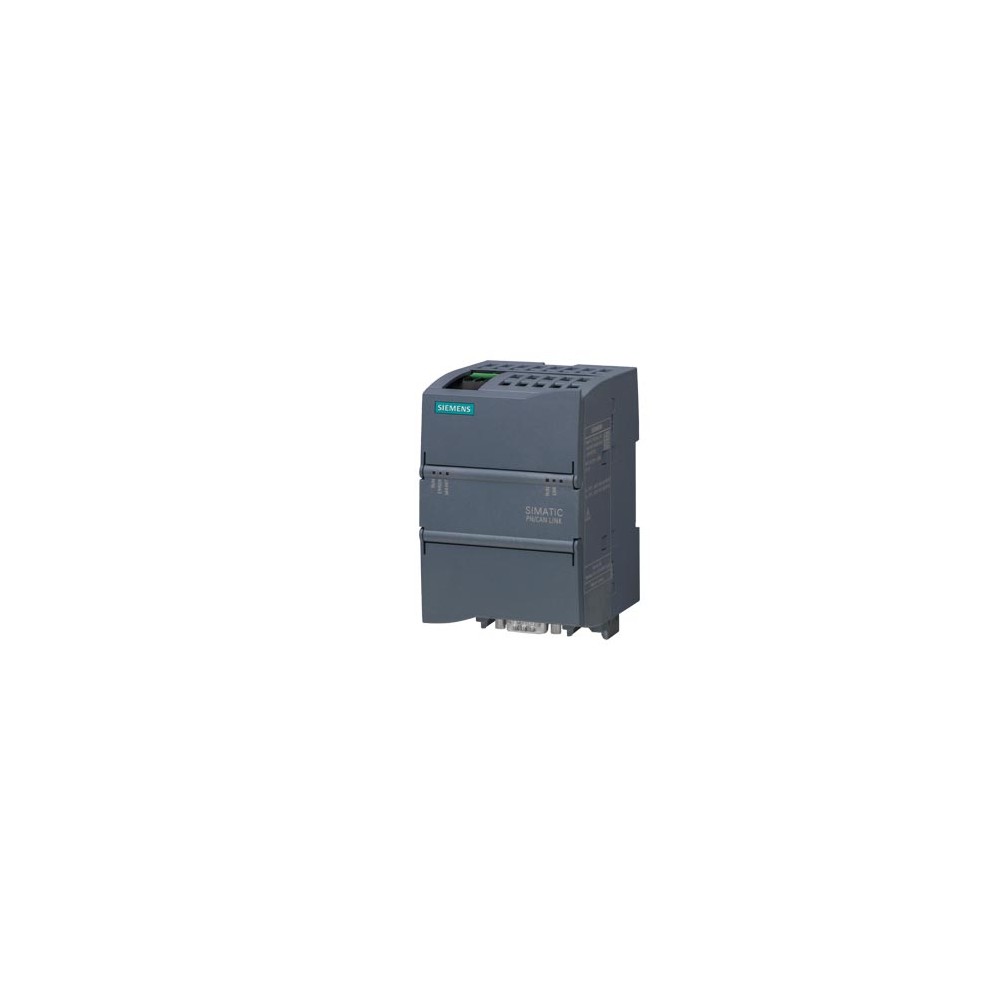

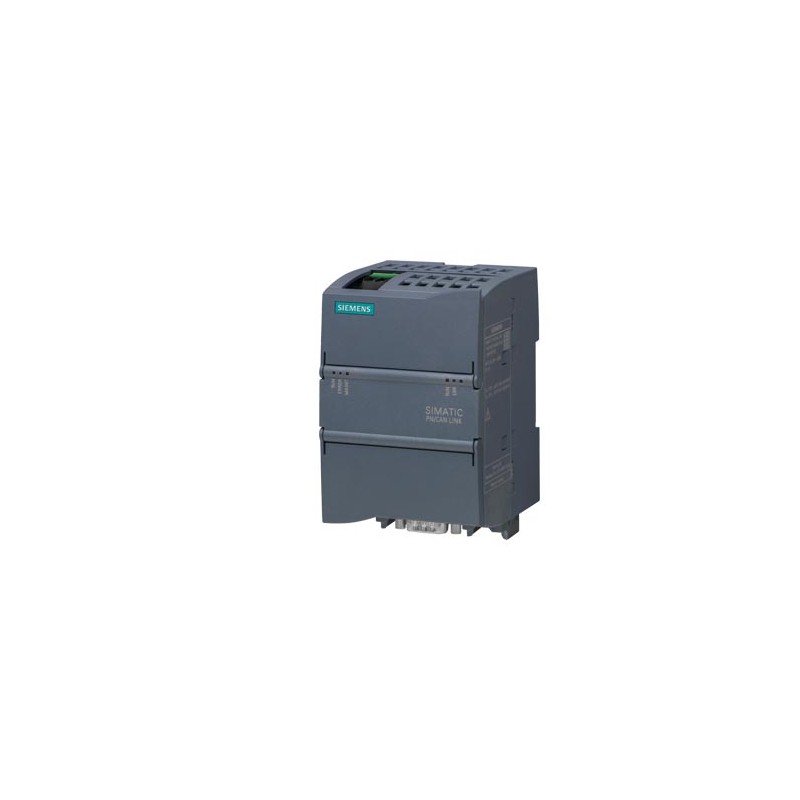

Siemens 6BK1620-0AA00-0AA0

SIMATIC PN/CAN LINK Gateway from Profinet to CAN or CANopen networks CAN 2.0A/B CANopen Manager to CiA301/302 CANopen Slave to CiA301/302 IP20

General information
Product type designation		PN/CAN Link
Firmware version		V2.2.0
● FW update possible		Yes
Vendor identification (VendorID)		ID 03 00 00 53h acc. to CiA
Product function
● I&M data		Yes; I&M0 to I&M3
● Isochronous mode		No
Engineering with
● STEP 7 TIA Portal configurable/integrated from version		STEP 7 V14 or higher
Installation type/mounting
Mounting		DIN rail, wall mounting, portrait mounting
Mounting position		any
Recommended mounting position		Horizontal
Rail mounting		Yes
Control cabinet installation		Yes
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Overvoltage protection		Yes
Short-circuit protection		Yes
Mains buffering
● Mains/voltage failure stored energy time		10 ms
Input current
Current consumption (rated value)		0.09 A
Current consumption, max.		0.11 A
Power loss
Power loss, typ.		2.2 W
Interfaces
Interfaces/bus type		2x Ethernet (RJ45), 1x Sub-D (9-pin)
Supports protocol for PROFINET IO
● automatic detection of transmission rate		No
● Transmission rate, max.		100 Mbit/s
● Number of RJ45 ports		2
● Number of FC (FastConnect) connections		2
PROFINET functions
● Assignment of the IP address, supported		Yes
● Assignment of the device name, supported		Yes
1. Interface
Interface type		CAN according to CiA 303-1
Isolated		Yes; 500 V AC or 707 V DC
Interface types
● Number of ports		1
● Design of the connection		9-pin sub D socket
CAN
● CAN operating modes		CAN Standard CAN 2.0A/B; CANopen Manager / Slave acc. to CiA
● Specification acc. to CiA		CiA 301 & CiA 302
● Transmission rate, min.		50 kbit/s
● Transmission rate, max.		1 000 kbit/s
● max. number of devices		126
● Number of SDOs in parallel		16; Parallel
● Number of PDOs		512; Send / receive
Services
— Node/life-guarding		Yes
— Heartbeat		Yes
— SYNC		Yes
2. Interface
Interface type		PROFINET
Isolated		Yes; 1 500 V AC or 2 250 V DC
Interface types
● RJ 45 (Ethernet)		Yes
● Number of ports		2
● integrated switch		Yes
Protocols
● PROFINET IO Device		Yes
Interrupts/diagnostics/status information
Status indicator		Yes
Alarms		Yes
Diagnostics function		Yes
Diagnostics indication LED
● RUN LED		Yes
● ERROR LED		Yes
● MAINT LED		Yes
● LINK LED		Yes
● RX/TX LED		Yes
Potential separation
Potential separation exists		Yes
Degree and class of protection
IP degree of protection		IP20
