6ES7232-4HD50-0XB0

Condition: New product

Siemens 6ES7232-4HD50-0XB0

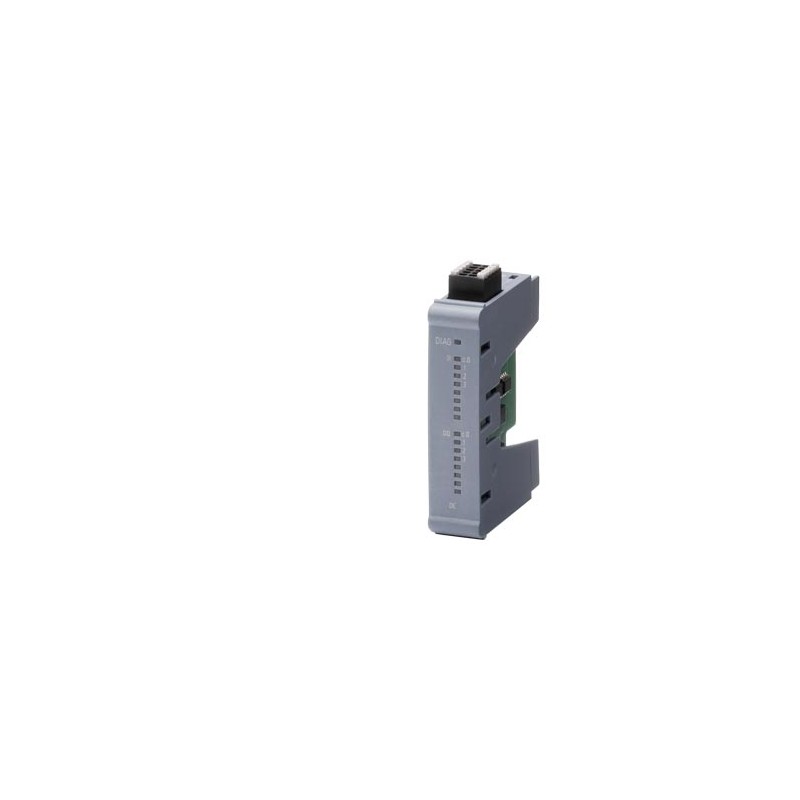

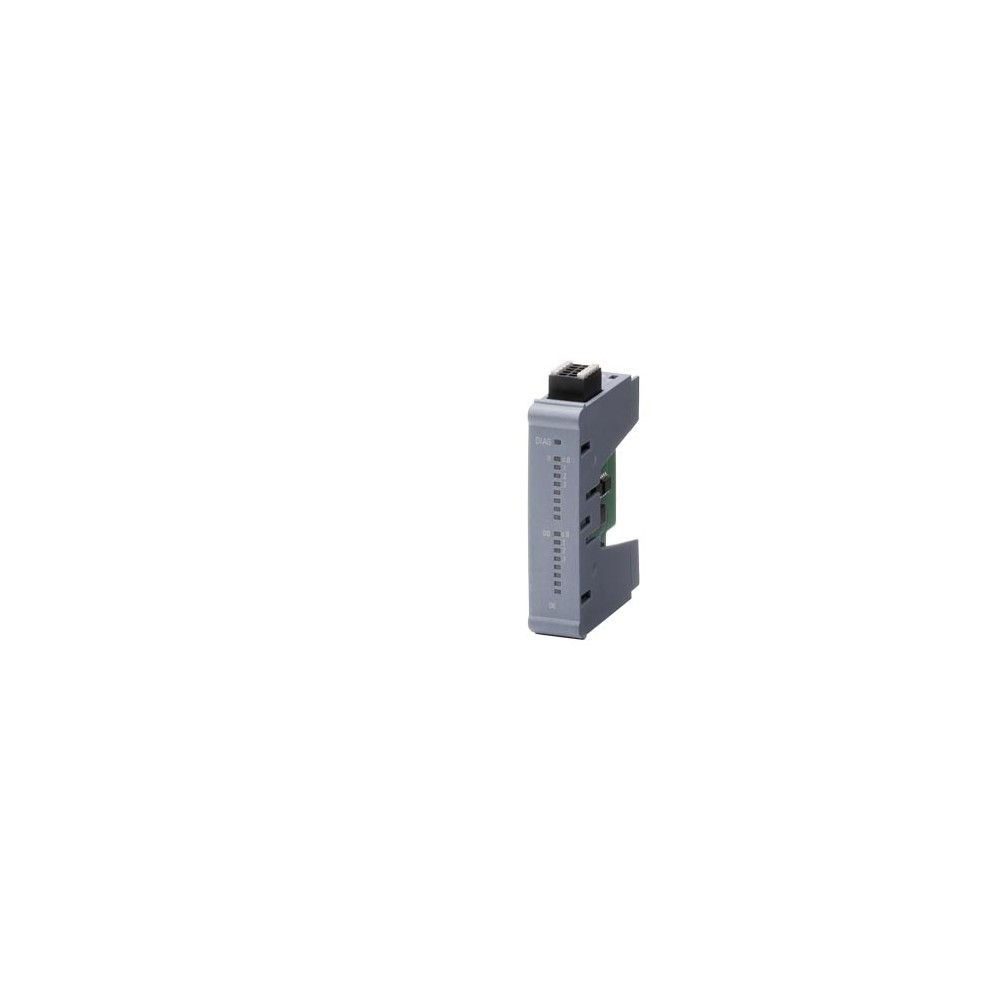

SIMATIC S7-1200 G2: SB 1232 analog output, 4 AO, outputs: 4 x AQ 14 bit DAC (+/-10 V, 0-20 mA or 4-20 mA)

General information
Product type designation		SB 1232, AQ 4x 14 bit
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption, typ.		30 mA
from backplane bus 5 V DC, typ.		25 mA
Power loss
Power loss, typ.		3 W
Analog outputs
Number of analog outputs		4; Current or voltage
Output ranges, voltage
● -10 V to +10 V		Yes
Output ranges, current
● 0 to 20 mA		Yes
● 4 mA to 20 mA		Yes
Load impedance (in rated range of output)
● with voltage outputs, min.		1 000 Ω
● with current outputs, max.		600 Ω
Cable length
● shielded, max.		100 m; shielded, twisted pair
Analog value generation for the outputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.		14 bit; Voltage: 14 bit; Current : 13 bit
Errors/accuracies
Temperature error (relative to output range), (+/-)		25 °C ±0.3 % / -20 °C to 60 °C ±0.6 % of the full-scale deflection
Basic error limit (operational limit at 25 °C)
● Voltage, relative to output range, (+/-)		0.3 %
● Current, relative to output range, (+/-)		0.3 %
Interrupts/diagnostics/status information
Diagnostics function		Yes
Alarms
● Diagnostic alarm		Yes
Diagnoses
● Monitoring the supply voltage		Yes
● Wire-break		Yes
● Short-circuit		Yes
Diagnostics indication LED
● DIAG LED		Yes
● for status of the outputs		Yes
Degree and class of protection
IP degree of protection		IP20
