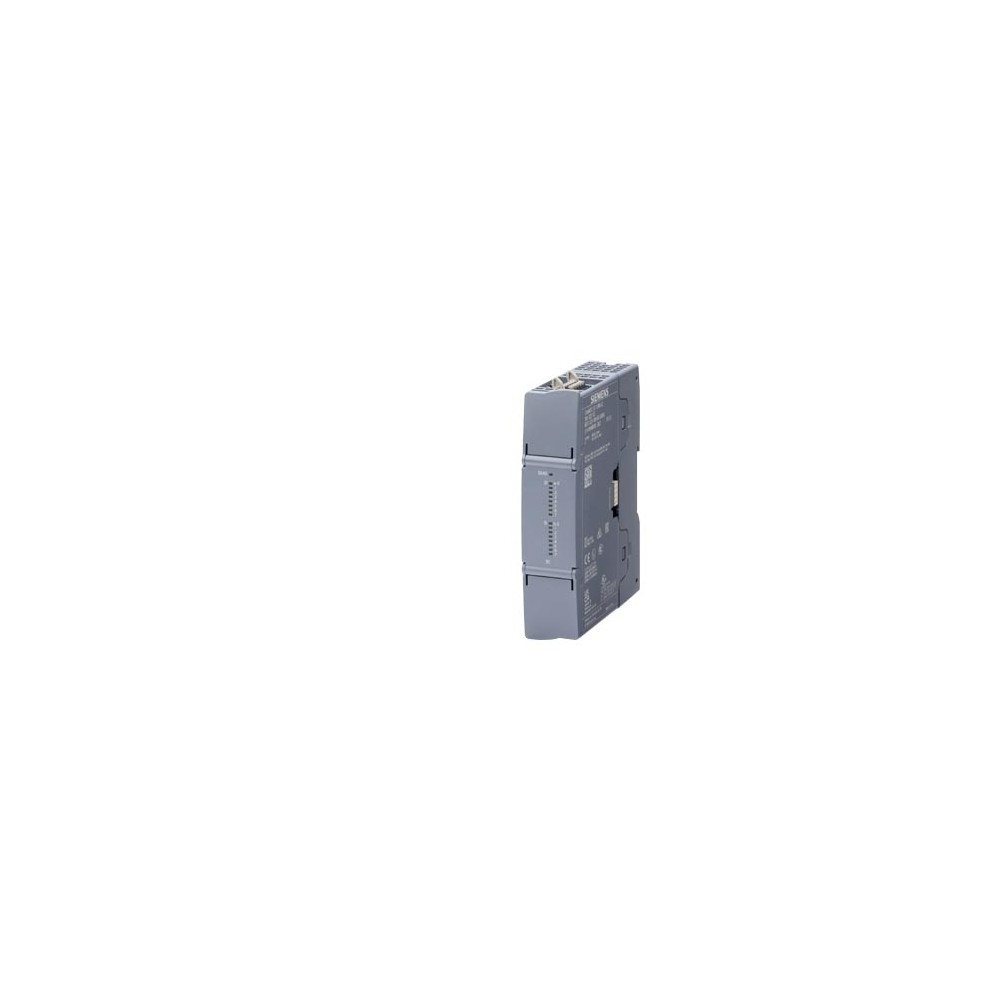

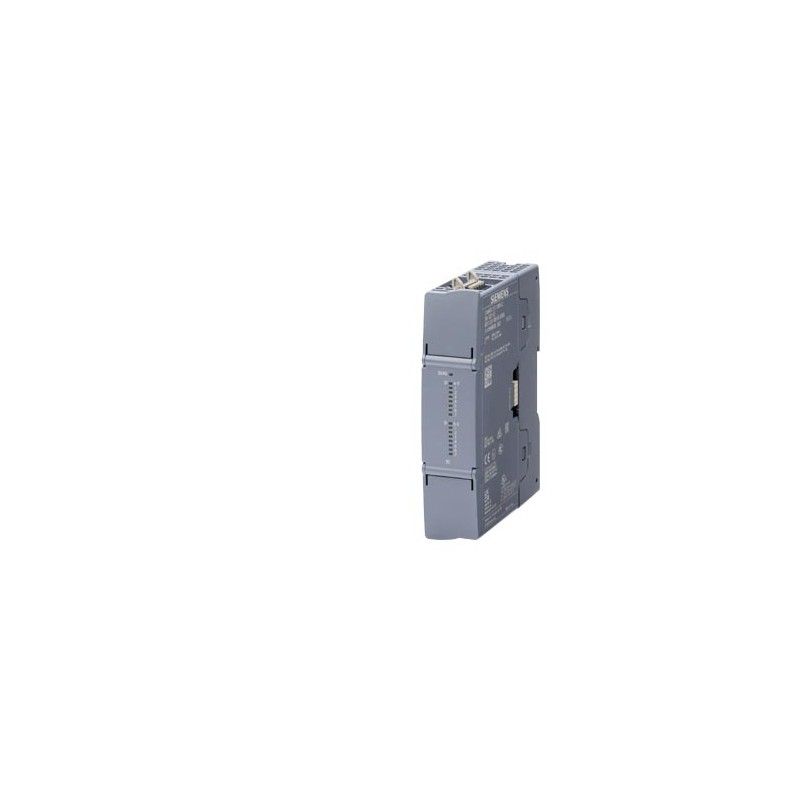

Siemens 6ES7223-5PH50-0XB0

SIMATIC S7-1200 G2: SM 1223 digital I/O, 8 DI/8 RLY; inputs: 8x DI 24 V DC sink/source; outputs: 8x DO relay 2 A

General information
Product type designation		SM 1223, DI 8x 24 V DC, DQ 8x relay
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
from backplane bus 5 V DC, max.		105 mA
Digital inputs
● from load voltage L+ (without load), max.		4.1 mA; per channel
Digital outputs
● from load voltage L+, max.		9 mA; per relay coil
Power loss
Power loss, typ.		4.8 W
Digital inputs
Number of digital inputs		8
● in groups of		4
Input characteristic curve in accordance with IEC 61131, type 1		Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max.		8
horizontal installation
— up to 40 °C, max.		8
— up to 50 °C, max.		8
vertical installation
— up to 40 °C, max.		8
Input voltage
● Type of input voltage		DC
● Rated value (DC)		24 V
● for signal "0"		5 V DC or 0.5 mA
● for signal "1"		15 V DC at 2.5 mA
Input current
● for signal "0", max. (permissible quiescent current)		1 mA
● for signal "1", min.		2.5 mA
● for signal "1", typ.		4 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable		Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
for interrupt inputs
— parameterizable		No
Cable length
● shielded, max.		500 m
● unshielded, max.		300 m
Digital outputs
Number of digital outputs		8
● in groups of		8
Short-circuit protection		No; to be provided externally
Switching capacity of the outputs
● with resistive load, max.		2 A
● on lamp load, max.		30 W with DC, 200 W with AC
Output voltage
● Rated value (DC)		5 V DC to 30 V DC
● Rated value (AC)		5 V AC to 250 V AC
Output current
● for signal "1" rated value		2 A
Output delay with resistive load
● "0" to "1", max.		10 ms
● "1" to "0", max.		10 ms
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max.		16 A; Current per mass
Relay outputs
● Number of relay outputs		8
● Rated supply voltage of relay coil L+ (DC)		24 V
● Number of operating cycles, max.		mechanically 10 million, at rated load voltage 100 000
Switching capacity of contacts
— with inductive load, max.		2 A
— on lamp load, max.		30 W with DC, 200 W with AC
— with resistive load, max.		2 A
Cable length
● shielded, max.		500 m
● unshielded, max.		150 m
Interrupts/diagnostics/status information
Diagnostics function		Yes
Alarms
● Diagnostic alarm		Yes
Diagnoses
● Monitoring the supply voltage		Yes
Diagnostics indication LED
● for status of the inputs		Yes
● for status of the outputs		Yes
● for maintenance		Yes
Potential separation
Potential separation digital inputs
● between the channels, in groups of		4
● between the channels and backplane bus		Yes; 707 V DC (type test)
Potential separation digital outputs
● between the channels		Relays
● between the channels, in groups of		8
● between the channels and backplane bus		Yes; 4 200 V DC (type test)
Isolation
Isolation tested with		1500 V AC (type test)
Degree and class of protection
IP degree of protection		IP20
