6ES7222-5BH50-0XB0

Condition: New product

More info

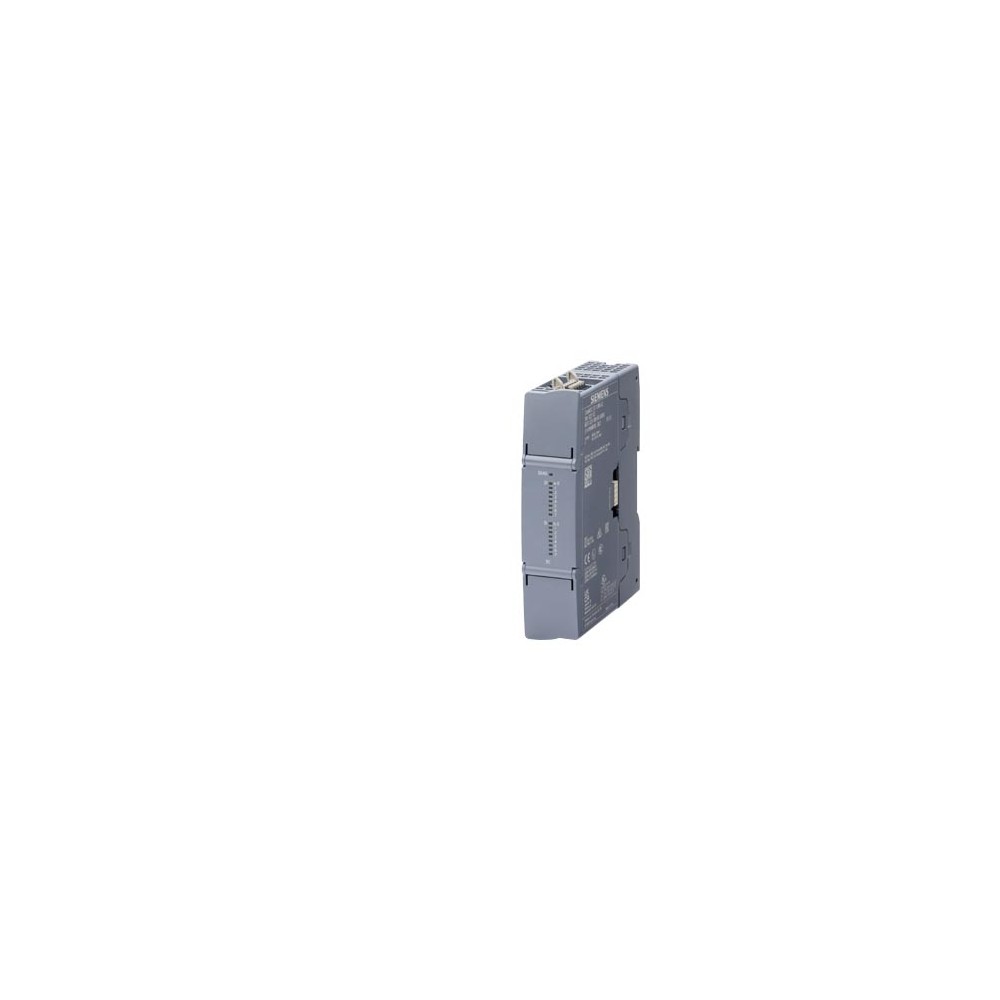

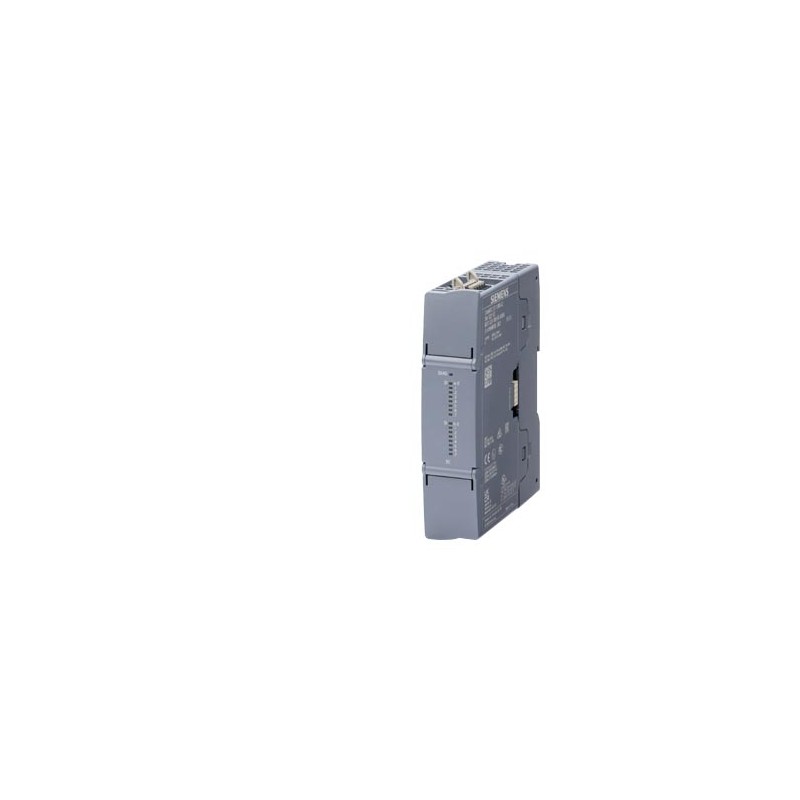

Siemens 6ES7222-5BH50-0XB0

SIMATIC S7-1200 G2: SM 1222 digital output, 16 DO; outputs: 16x DO, 24 V DC 0.5 A, sourcing transistor

General information
Product type designation		SM 1222, DQ 16x 24 V DC/0.5 A
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
from backplane bus 5 V DC, max.		120 mA
Digital outputs
● from load voltage L+, max.		45 mA
Power loss
Power loss, typ.		3.5 W
Digital outputs
Number of digital outputs		16
● in groups of		8
Short-circuit protection		No; to be provided externally
Limitation of inductive shutdown voltage to		typ. (L+) -40 V, 1 W dissipation
Switching capacity of the outputs
● with resistive load, max.		0.5 A
● on lamp load, max.		5 W
Output voltage
● Rated value (DC)		24 V
● for signal "0", max.		0.1 V; with 10 kOhm load
● for signal "1", min.		L+ (-0.5 V)
Output current
● for signal "1" rated value		0.5 A
● for signal "0" residual current, max.		10 µA
Output delay with resistive load
● "0" to "1", max.		50 µs
● "1" to "0", max.		200 µs
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max.		4 A; Current per mass (Group of 8)
Cable length
● shielded, max.		500 m
● unshielded, max.		150 m
Interrupts/diagnostics/status information
Diagnostics function		Yes
Alarms
● Diagnostic alarm		Yes
Diagnoses
● Monitoring the supply voltage		Yes
Diagnostics indication LED
● DIAG LED		Yes
● for status of the outputs		Yes
Potential separation
Potential separation digital outputs
● between the channels, in groups of		8
● between the channels and backplane bus		707 V DC (type test)
Isolation
Isolation tested with		707 V DC (type test)
Degree and class of protection
IP degree of protection		IP20
