6ES7221-1BH50-0XB0

Condition: New product

More info

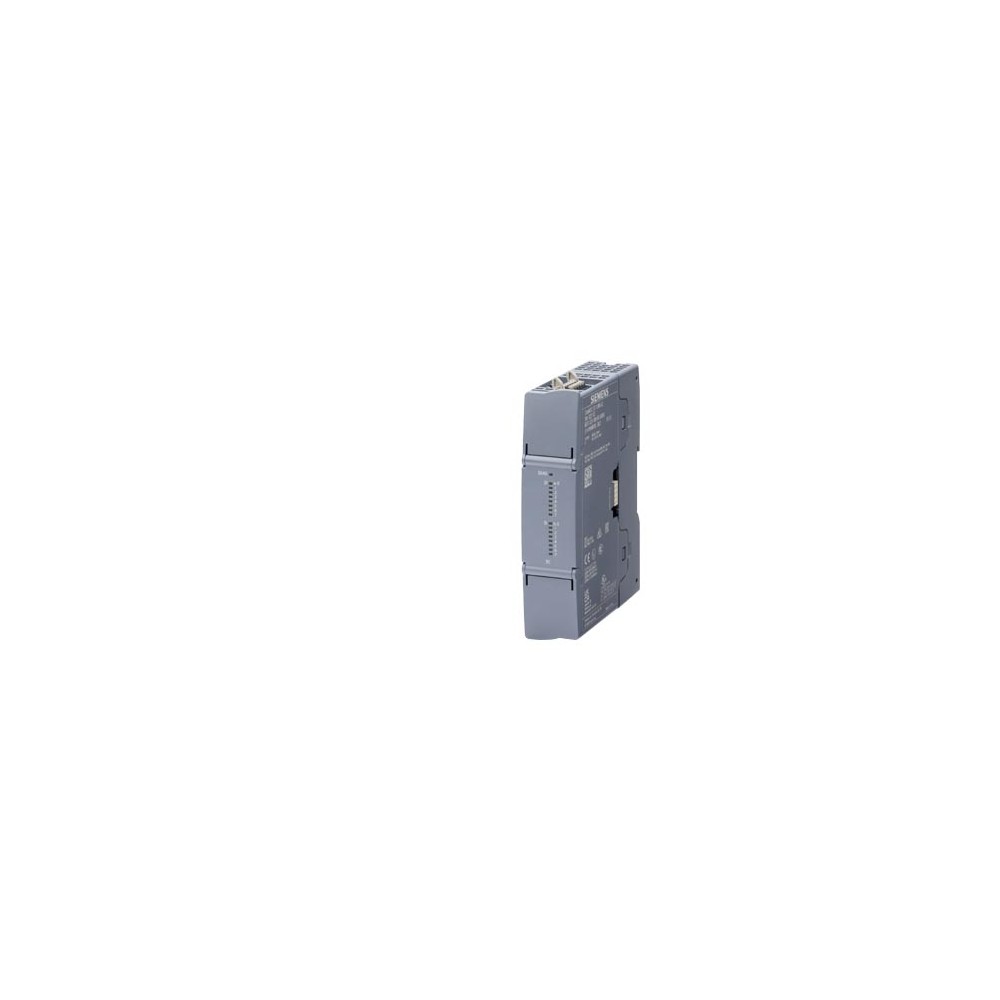

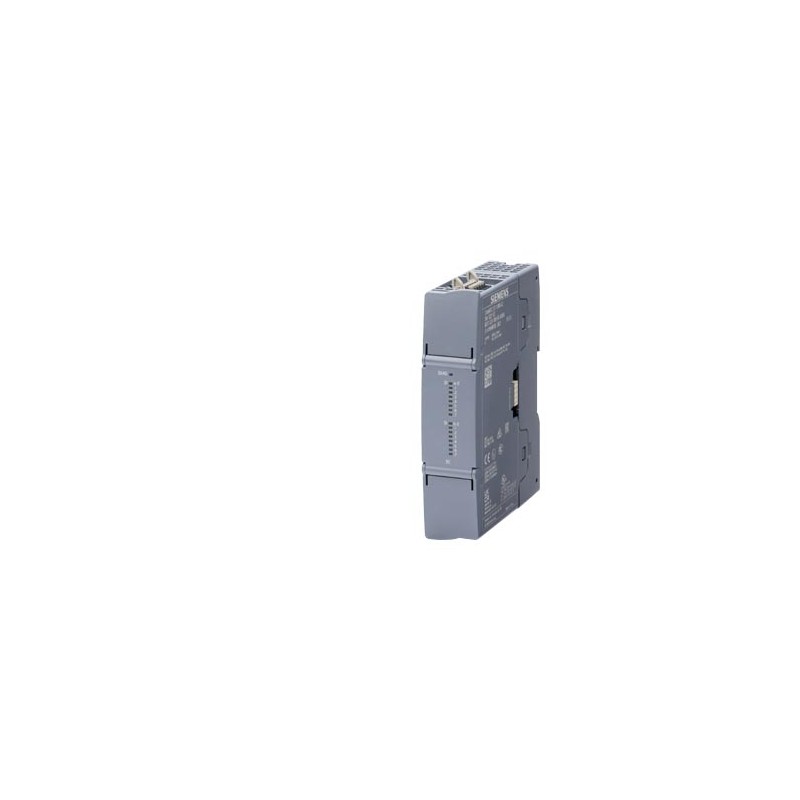

Siemens 6ES7221-1BH50-0XB0

General information
Product type designation		SM 1221, DI 16x 24 V DC
Input current
from backplane bus 5 V DC, max.		90 mA
Digital inputs
● from load voltage L+ (without load), max.		4.1 mA; per channel
Power loss
Power loss, typ.		3.2 W
Digital inputs
Number of digital inputs		16
● in groups of		4
Input characteristic curve in accordance with IEC 61131, type 1		Yes
Number of simultaneously controllable inputs
horizontal installation
— up to 40 °C, max.		16
— up to 50 °C, max.		16
vertical installation
— up to 40 °C, max.		16
Input voltage
● Rated value (DC)		24 V
● for signal "0"		5 V DC or 0.5 mA
● for signal "1"		15 V DC at 2.5 mA
Input current
● for signal "0", max. (permissible quiescent current)		0.5 mA
● for signal "1", min.		2.5 mA
● for signal "1", typ.		4.1 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable		Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
for interrupt inputs
— parameterizable		No
Cable length
● shielded, max.		500 m
● unshielded, max.		300 m
Interrupts/diagnostics/status information
Diagnostics function		Yes
Alarms
● Diagnostic alarm		No
Diagnoses
● Monitoring the supply voltage		No
Diagnostics indication LED
● for status of the inputs		Yes
● for maintenance		Yes
Potential separation
Potential separation digital inputs
● between the channels, in groups of		4
● between the channels and backplane bus		Yes; 707 V DC (type test)
Isolation
Isolation tested with		707 V DC (type test)
Degree and class of protection
IP degree of protection		IP20
