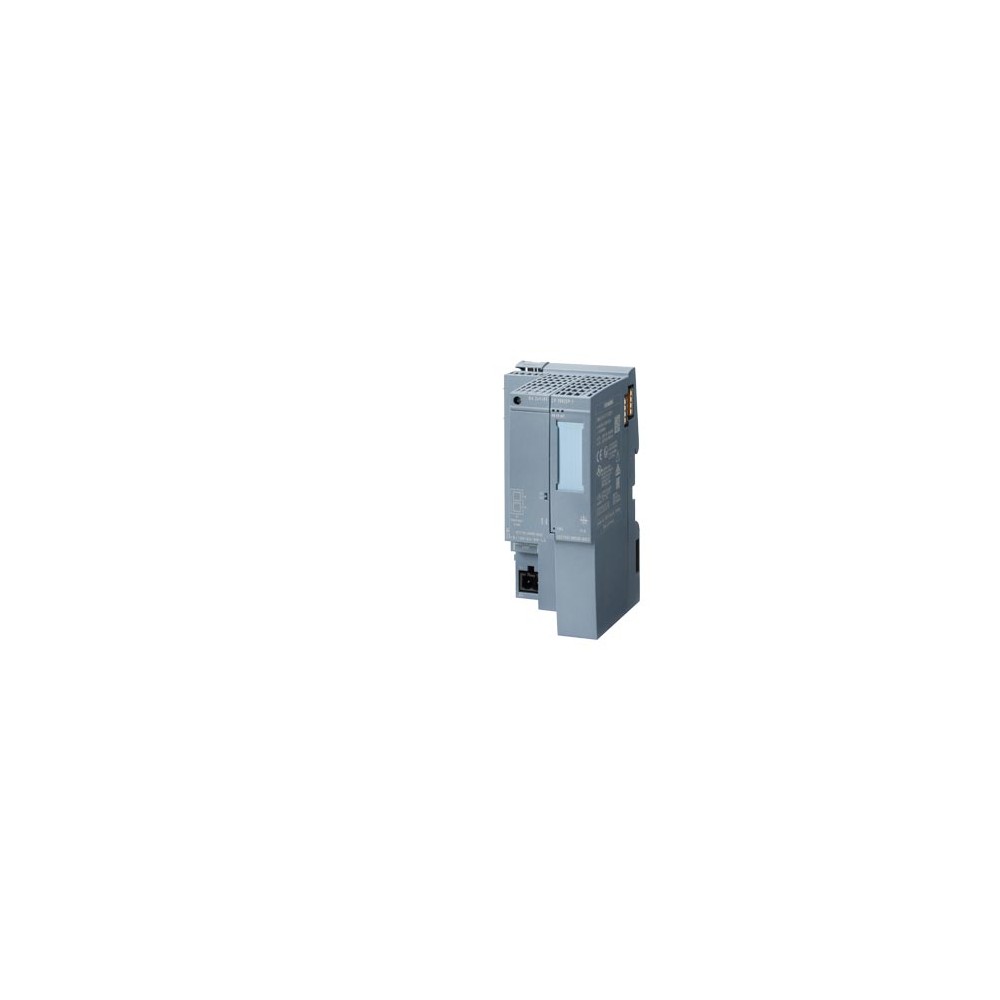

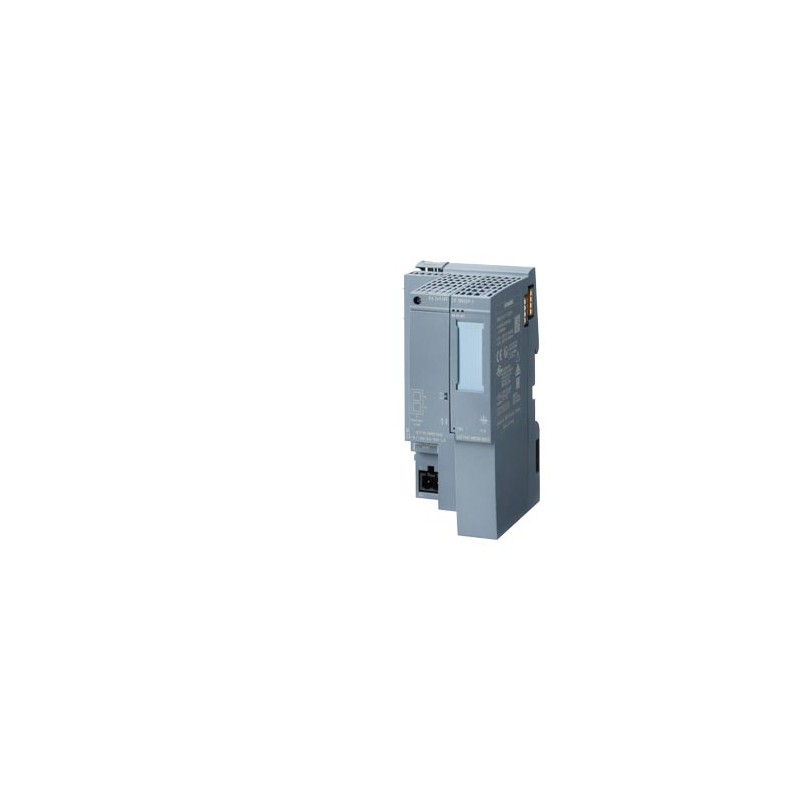

Siemens 6GK7543-6WX00-0XE0
| product type designation | CP 1543SP-1 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK7543-6WX00-0XE0 | |
| transfer rate | ||
| transfer rate | ||
| ● at the 1st interface | 10 ... 100 Mbit/s | |
| interfaces | ||
| number of interfaces / according to Industrial Ethernet | 1 | |
| number of electrical connections | ||
| ● at the 1st interface / according to Industrial Ethernet | 2 | |
| type of electrical connection | ||
| ● at the 1st interface / according to Industrial Ethernet | via ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage | 24 V | |
| supply voltage | 19.2 ... 28.8 V | |
| power loss [W] | 6 W | |
| ambient conditions | ||
| ambient temperature | ||
| ● for vertical installation / during operation | -30 ... +50 °C | |
| ● for horizontally arranged busbars / during operation | -30 ... +60 °C | |
| ● during storage | -40 ... +70 °C | |
| ● during transport | -40 ... +70 °C | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
