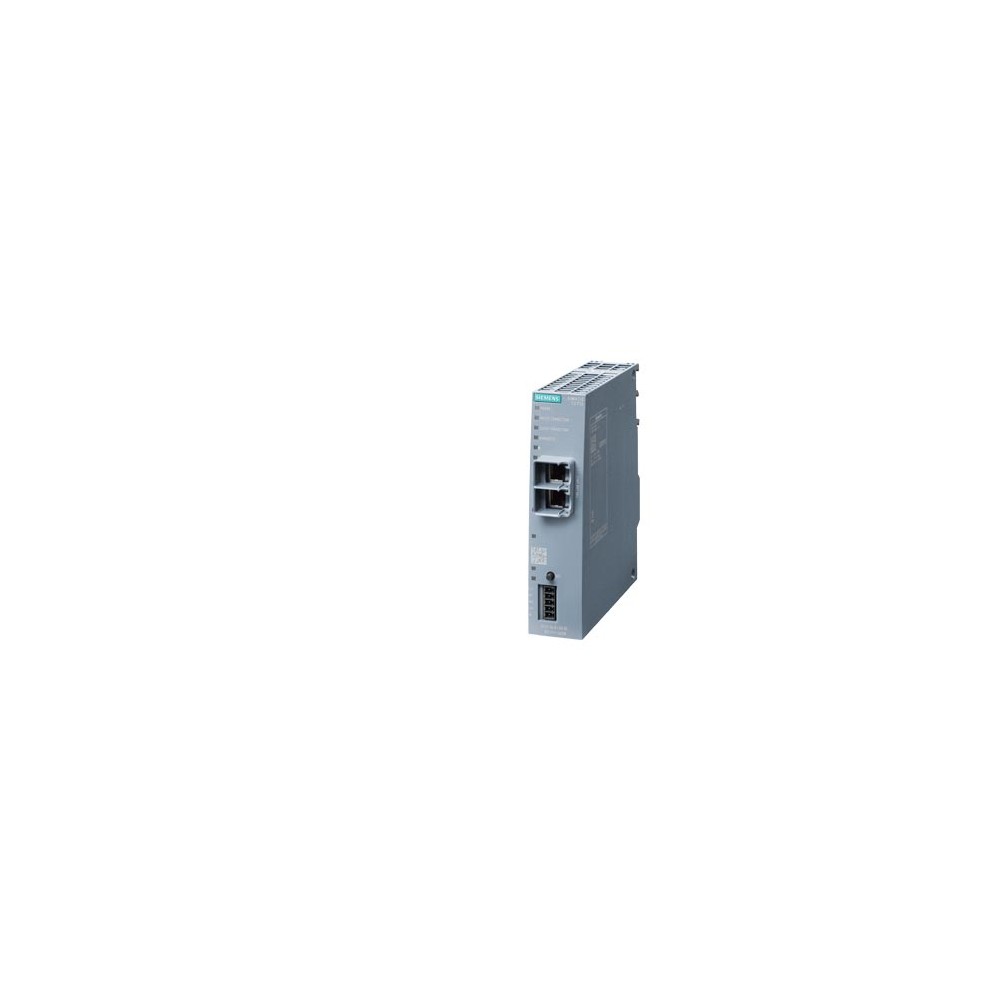

Siemens 6GK1411-1AC00
| product type designation | Simatic CC712 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1411-1AC00 | |
| transfer rate | ||
| transfer rate | ||
| ● at the 1st interface | 10 ... 1000 Mbit/s | |
| ● at the 2nd interface | 10 ... 1000 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| ● at the 1st interface / according to Industrial Ethernet | 1 | |
| ● at the 2nd interface / according to Industrial Ethernet | 1 | |
| ● for power supply | 2 | |
| type of electrical connection | ||
| ● at the 1st interface / according to Industrial Ethernet | RJ45 port | |
| ● at the 2nd interface / according to Industrial Ethernet | RJ45 port | |
| type of electrical connection | ||
| ● for power supply | 5-pin terminal strip | |
| design of the removable storage | ||
| ● CLP | Yes | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage | 24 V | |
| supply voltage / external | 10.8 ... 28.8 V | |
| supply voltage / external / at DC / rated value | 24 V | |
| consumed current | ||
| ● from external supply voltage / at 24 V DC | ||
| — in communication mode / typical | 180 mA | |
| power loss [W] | 4.3 W | |
| ambient conditions | ||
| ambient temperature | ||
| ● for vertical installation / during operation | 0 ... 40 °C | |
| ● for horizontally arranged busbars / during operation | 0 ... 60 °C | |
| ● during storage | -40 ... +40 °C | |
| ● during transport | -40 ... +70 °C | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
