New
6GK5998-3GS01-2AC2
New product

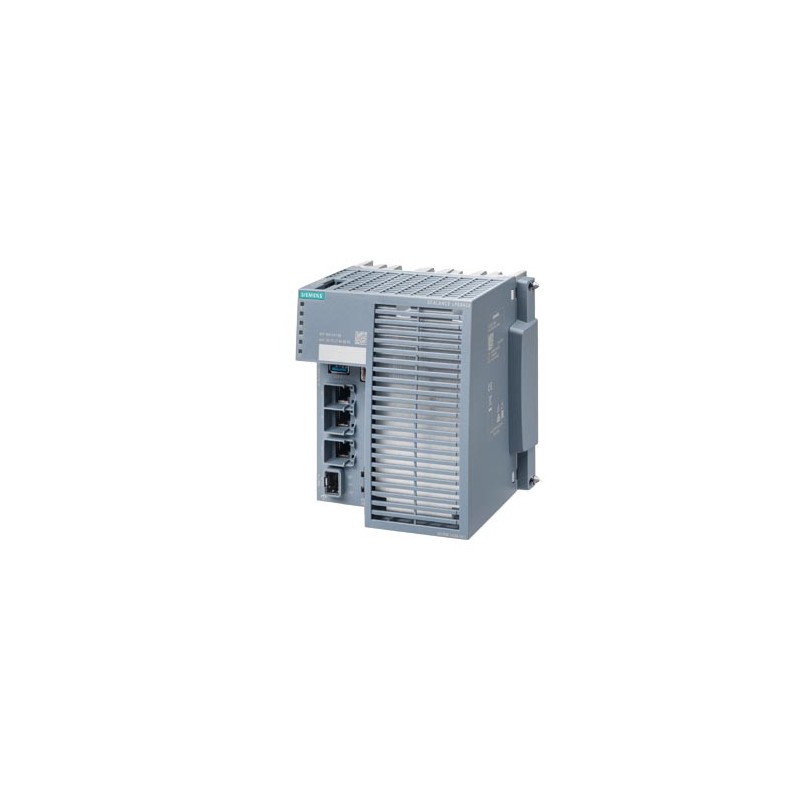

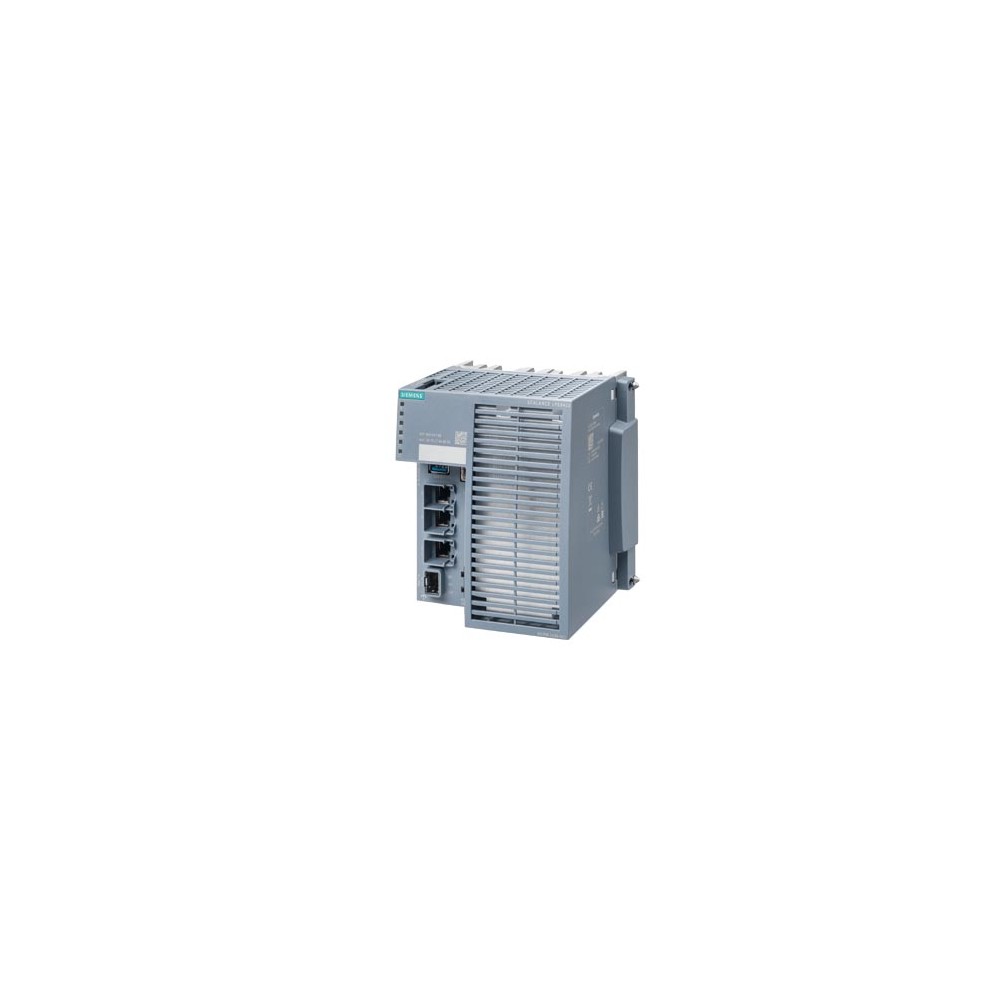

Siemens 6GK5998-3GS01-2AC2
| product brand name | SCALANCE | |
| product type designation | LPE9413 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5998-3GS01-2AC2 | |
| hardware configuration | ||
| design of the processor | 64Bit ARMv8 A53, 4 core | |
| processor clock frequency | 1.4 GHz | |
| design of the drive/storage medium / solid-state disk | Yes; eMMC (pSLC) | |
| storage capacity / on solid-state disk | 38 Gibyte | |
| storage capacity / of the RAM | 4 Gibyte | |
| operating system / pre-installed | Siemens Industrial Edge | |
| product component / operating system / docker | Yes | |
| transfer rate | ||
| transfer rate | 10, 100, 1000 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of 10/100/1000 Mbit/s RJ45 ports / integrated / with securing collar | 3 | |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 1; 100 or 1000 Mbit/s SFP plug-in transceiver | |
| interfaces / other | ||
| number of interfaces / according to USB | 2 | |
| number of USB-A ports | 1 | |
| number of USB-B ports | 1 | |
| design of the removable storage / CLP | Yes | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| supply voltage / 1 / rated value | 24 V | |
| power loss [W] / 1 / rated value | 16 W | |
| power loss [W] / at DC / at 24 V / typical | 10.56 W | |
| consumed current / at DC / at 24 V / typical | 0.4 A | |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 | |
| consumed current / 1 / maximum | 0.66 A | |
| product component / 1 / fusing at power supply input | Yes | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +60 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
