6GK7543-1AX10-0XE0
New product

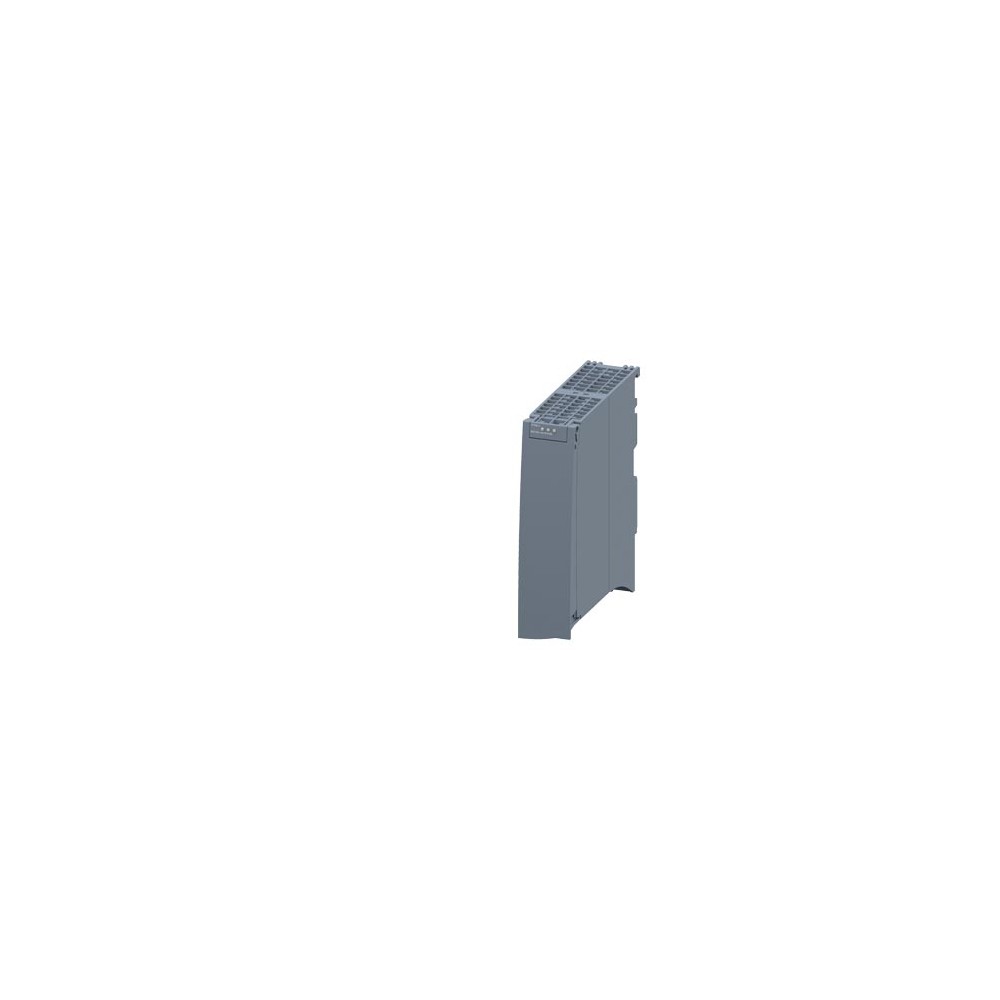

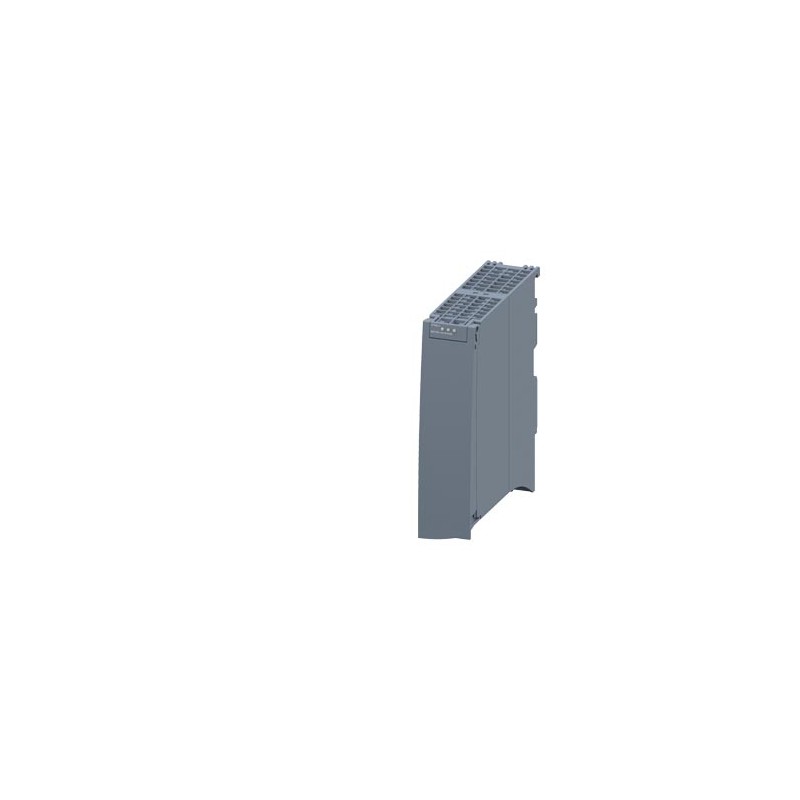

Siemens 6GK7543-1AX10-0XE0
| product type designation | CP 1543-1 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK7543-1AX10-0XE0 | |
| transfer rate | ||
| transfer rate | ||
| ● at the 1st interface | 10 ... 1000 Mbit/s | |
| interfaces | ||
| number of interfaces / according to Industrial Ethernet | 1 | |
| number of electrical connections | ||
| ● at the 1st interface / according to Industrial Ethernet | 1 | |
| type of electrical connection | ||
| ● at the 1st interface / according to Industrial Ethernet | RJ45 port | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / 1 / from backplane bus | 15 V | |
| relative symmetrical tolerance / at DC | ||
| ● at 15 V | 3 % | |
| consumed current | ||
| ● from backplane bus / at DC / at 15 V / typical | 0.25 A | |
| power loss [W] | 3.75 W | |
| ambient conditions | ||
| ambient temperature | ||
| ● for vertical installation / during operation | -30 ... +40 °C | |
| ● for horizontally arranged busbars / during operation | -30 ... +60 °C | |
| ● during storage | -40 ... +70 °C | |
| ● during transport | -40 ... +70 °C | |
| ● note | without condensation or icing | |
| installation altitude / at height above sea level / maximum | 5000 m | |
| ambient condition / relating to ambient temperature - air pressure - installation altitude | restrictions for installation altitudes > 2 000 m, see manual | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
