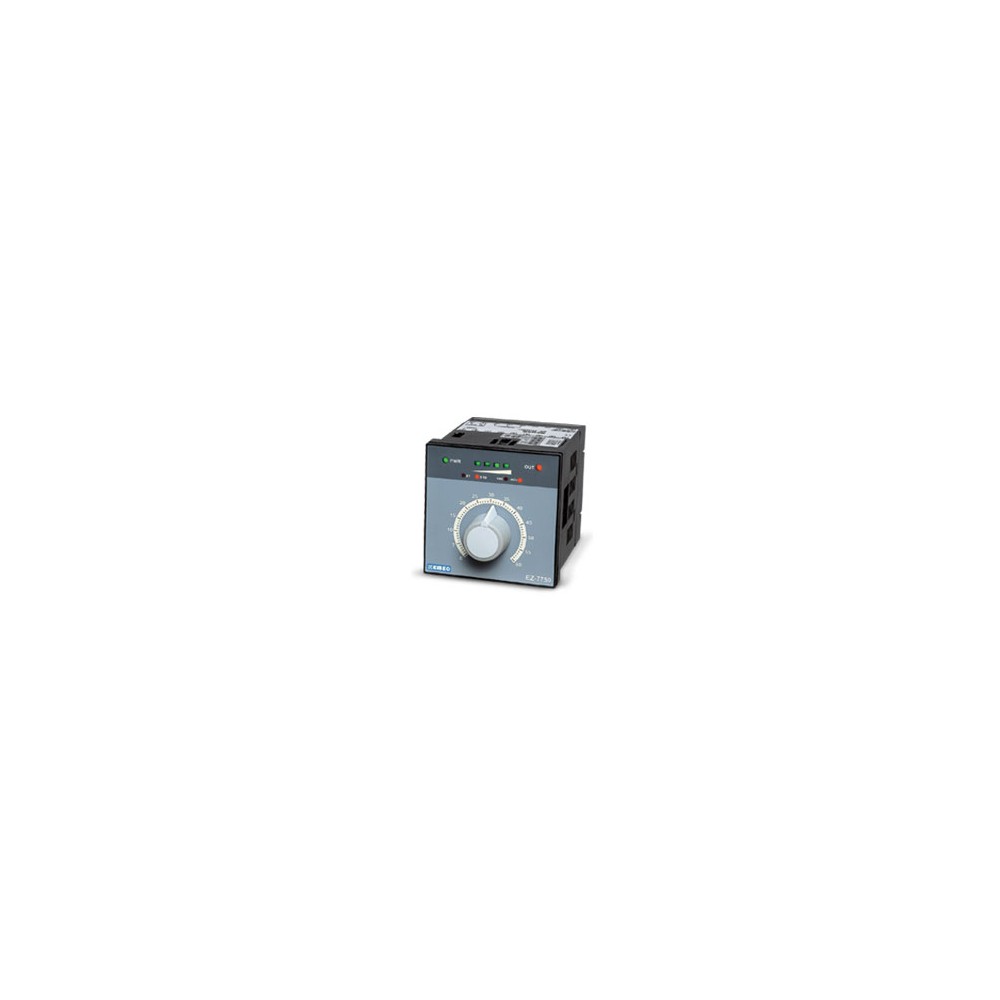

EZ-7750 Analogue Scale Timer
New product
EZ-7750
Analogue Scale Timer
- Selectable Analogue Scale ((0...60) or (0...600)) with DIP Switch - Selectable Time Base (Second or Minute) with DIP Switch - Selectable Operation Form with DIP Switch (On Delay or Off Delay) - Selectable Automatic or Manual Reset Function with DIP Switch
Housing&Mounting : 72mm x 72mm x 104mm DIN Size 43700 plastic housing for panel mounting. Panel cut-out is 9x69mm.
Protection Class : NEMA 4X (IP65 at front, IP20 at rear).
Weight : Approximately 0.30 Kg.
Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.
Storage/Operating Temperature : -40 C to +85 C / 0 C to +50 C
Storage/Operating Humidity : 90 % max. (None condensing)
Installation : Fixed installation
Overvoltage Category : II
Pollution Degree : II, office or workplace, none conductive pollution
Operating Conditions : Continuous
Supply Voltage and Power : 230V V (±15%) 50/60 Hz. 4VA, 115V V (±15%) 50/60 Hz. 4VA
24V V (±15%) 50/60 Hz. 4VA
Resolution of Set Point : ± 0.2% of full scale
Accuracy of Set Point : ±1%
Relay Output : 5A@250V V (Electrical Life : 100.000 Operation (Full Load))
Transistor Output : Maximum 50mA@12V Z NPN
LED Indicators : PWR (Green) , OUT (Red) ,Sec (Second)(Red) , Min(Minute) (Red) , X1 (Red) , X10 (Red) ,
Expired Time Leds : 4 pieces of led (Green)
