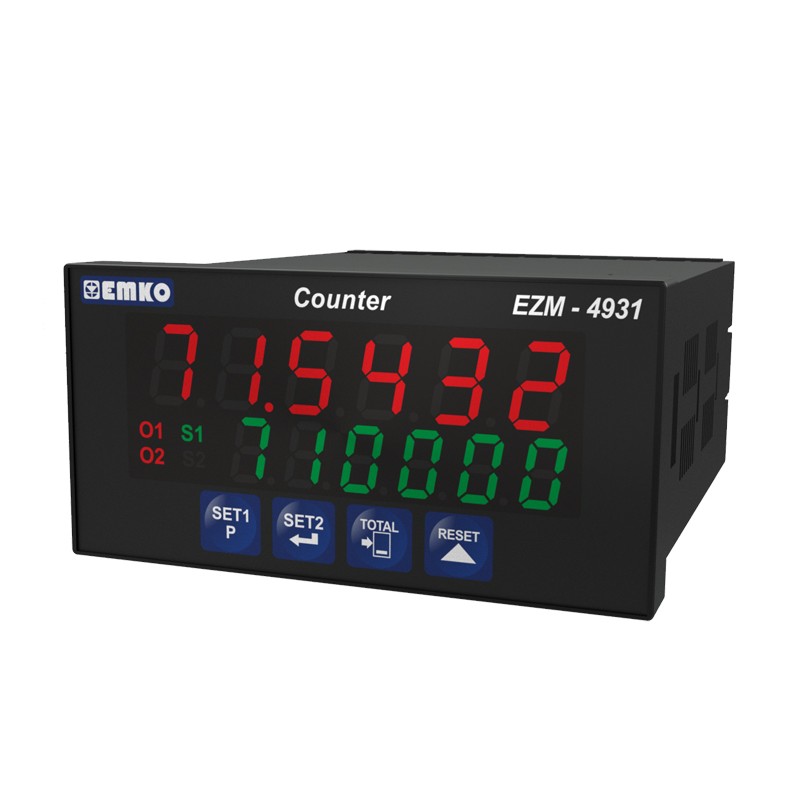

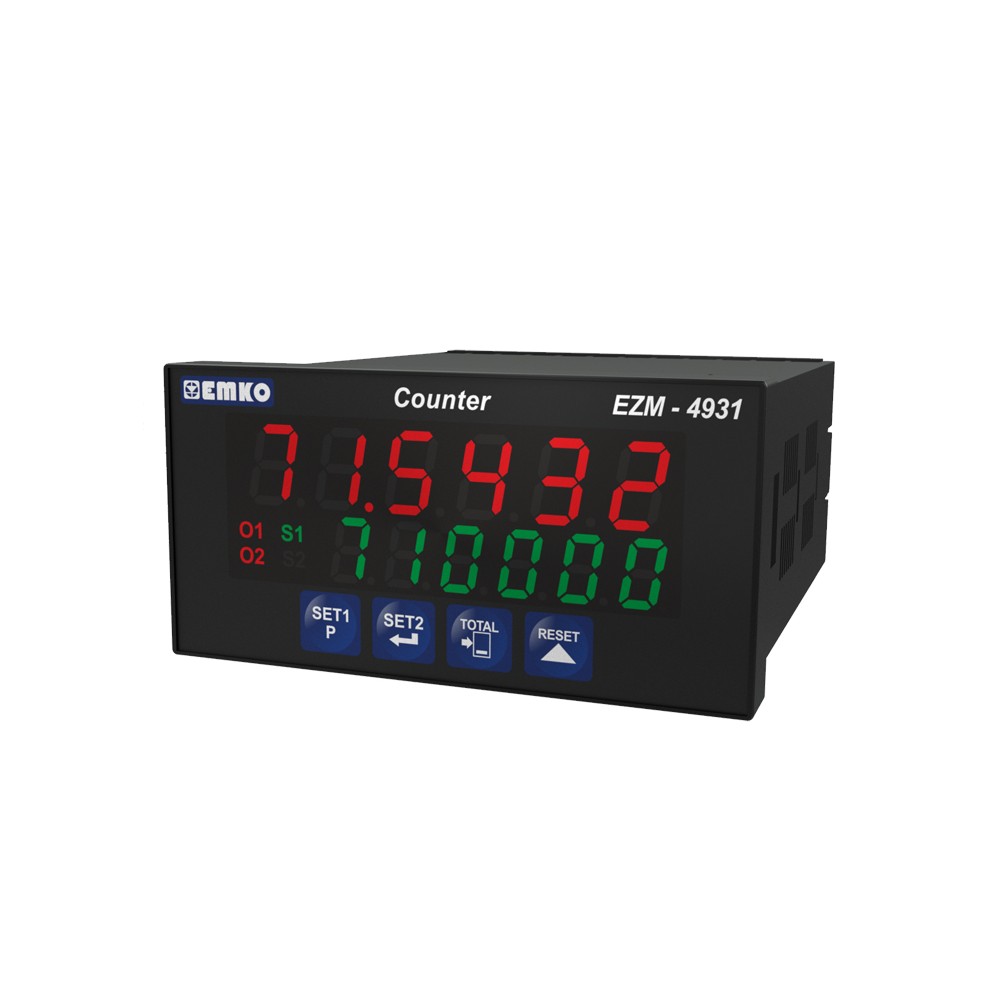

EZM-4931 200 KHZ Programmable High Speed Counter
New product
EZM-4931
200 KHZ Programmable High Speed Counter
EZM-49X31 Series Programmable Counter can be used in package machines, production and quality control rollers, in cutting and processing machine of glass, plastic, marble, sheet, iron, fabric all measuring and controlling of dimension, productivity, and can be adapted easily to all mechanical construction and automation system. Application fields; Package machines, Quality Control rollers, Filling Systems, Measuring Dimension and Control Automation, Cutting and Processing machine of glass, plastic, marble, sheet, iron and fabric, Production bands, Tool Benchs.
| Display and Front Panel | |
| Buttons | Set, Reset, P, direction and enter buttons |
| Led Indicators | S1 (Set1 value), S2 (Set2 value), Q1, O2 (Control or Alarm output) LEDs |
| Actual Value Display | 13,2 mm Red 6 digits LED display |
| Set Display | 8 mm Green 6 digits LED display |
| Body | |
| Physical Features | 96 mm x 48 mm 86,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.29 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power |
230 V ~ (-15%,+10%) 50/60 Hz. 6 VA 230 V ~ (-15%,+10%) 50/60 Hz 6 VA |
| Digital Inputs |
Rated Voltage 16Vdc@5mA Maximum continous permissable voltage 30 Vdc Logic 1 minimum level 3 Vdc Logic 0 maximum level 2 Vdc |
| Sensor Supply Voltage | 14 V ± 35% maximum 50 mA (230 V) |
| 12 V ± 40% maximum 50 mA (115 V) | |
| Maximum Input Frequency | 200 kHz for Pro-02= 0 |
| 100 kHz for Pro-02= 1 | |
| 50 kHz for Pro-02= 2 | |
| 25 kHz for Pro-02= 3 | |
| 12 kHz for Pro-02= 4 | |
| Outputs | |
| Relay Output (2x) | 5A@250V |
| SSR Output (Optional) | Max 10mA@5V |
| Optional Communication | RS-232 Communication |
| Communication Protocol | MODBUS-RTU |
| Quality Standarts | |
| Approvals | GOST-R, CE |
