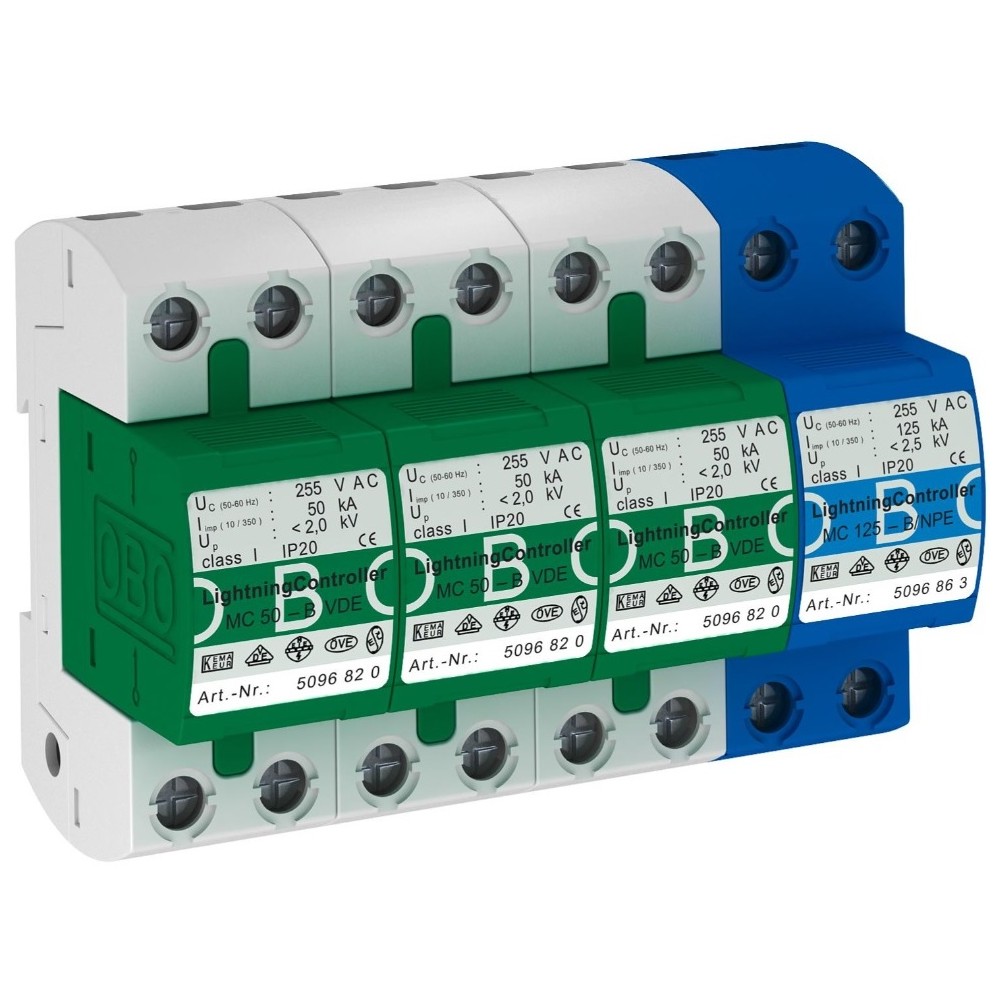

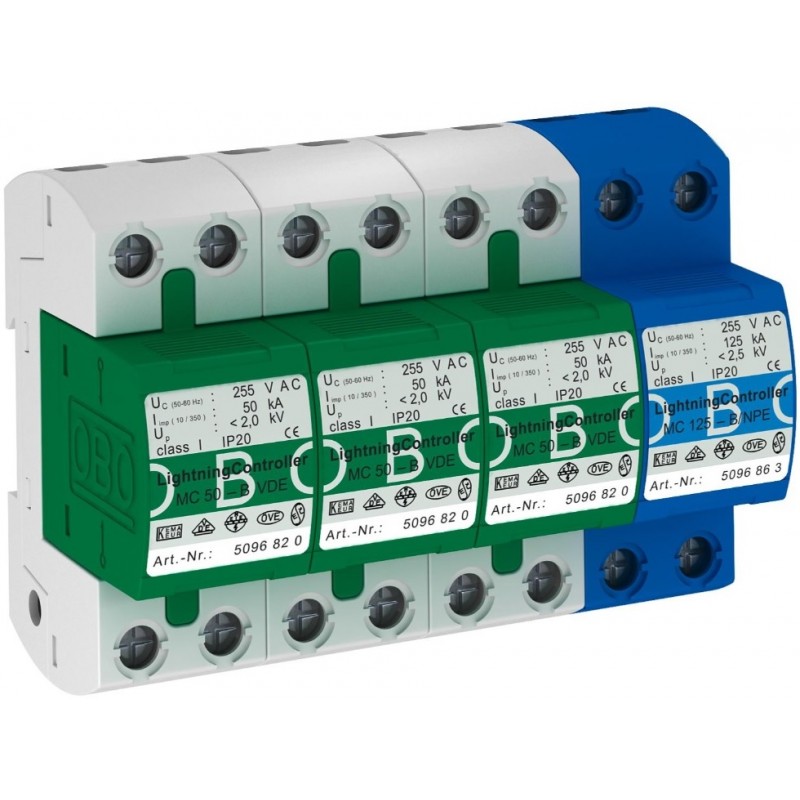

OBO 5096878 Lightning current arrester, 3-pole + NPE
| Arrester surge current (8/20 µs) [total] | 125 kA |
|---|---|
| Blow-out | no |
| Cable type for surge protection devices | Power cable AV |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 50 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 10 mm² |
| Dimension | 255V |
| Explosion-tested version | no |
| Follow current quenching capacity (eff) [N-PE] | 10 kA |
| Height | 69 mm |
| Installation type | DIN rail 35 mm |
| Length | 100 mm |
| Lightning protection zone LPZ | 0→1 |
| Lightning surge current (10/350 μs) | 50 kA |
| Lightning surge current (10/350) | 125 kA |
| Max. mains-side overcurrent protection | 500 |
| Maximum back-up fuse | 500 A |
| Maximum continuous voltage AC | 255 V |
| Network form | Other |
|---|---|
| Nominal discharge current (8/20 µs) | 50 kA |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Pole version | 3+N/PE |
| Protection rating | IP20 |
| Remote signalling | no |
| Response time | <100 ns |
| Short-circuit resistance | 25 kA |
| Short-circuit resistance for max. mains-side overcurrent protection | 25 kA |
| Signalling on device | None |
| SPD to EN 61643-11 | Type 1 |
| SPD to IEC 61643-1 | Class I |
| Test class, type 1 | yes |
| Version for | 3+NPE |
| Width | 140 mm |
