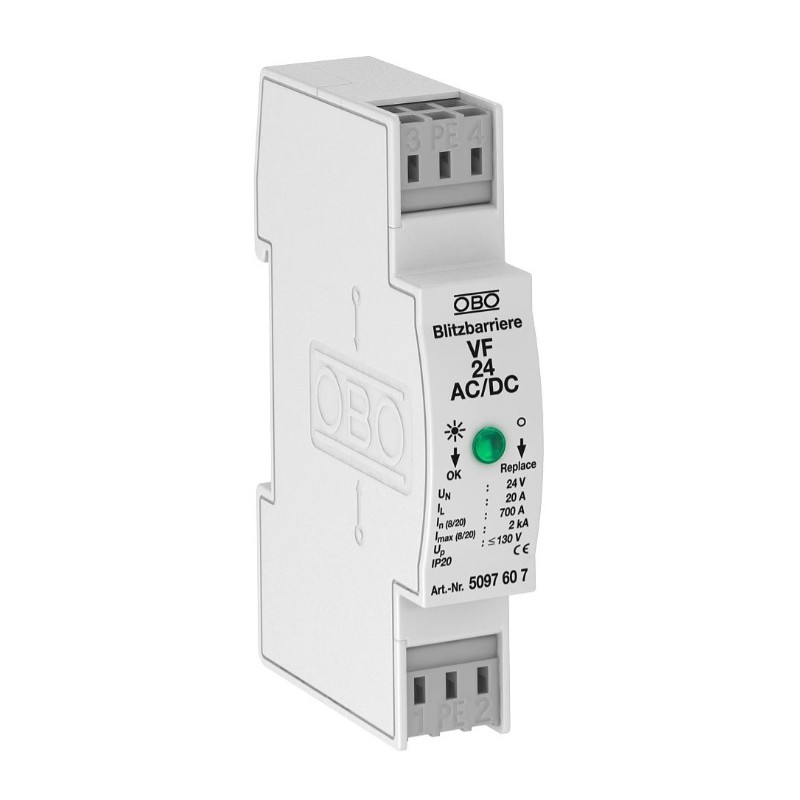

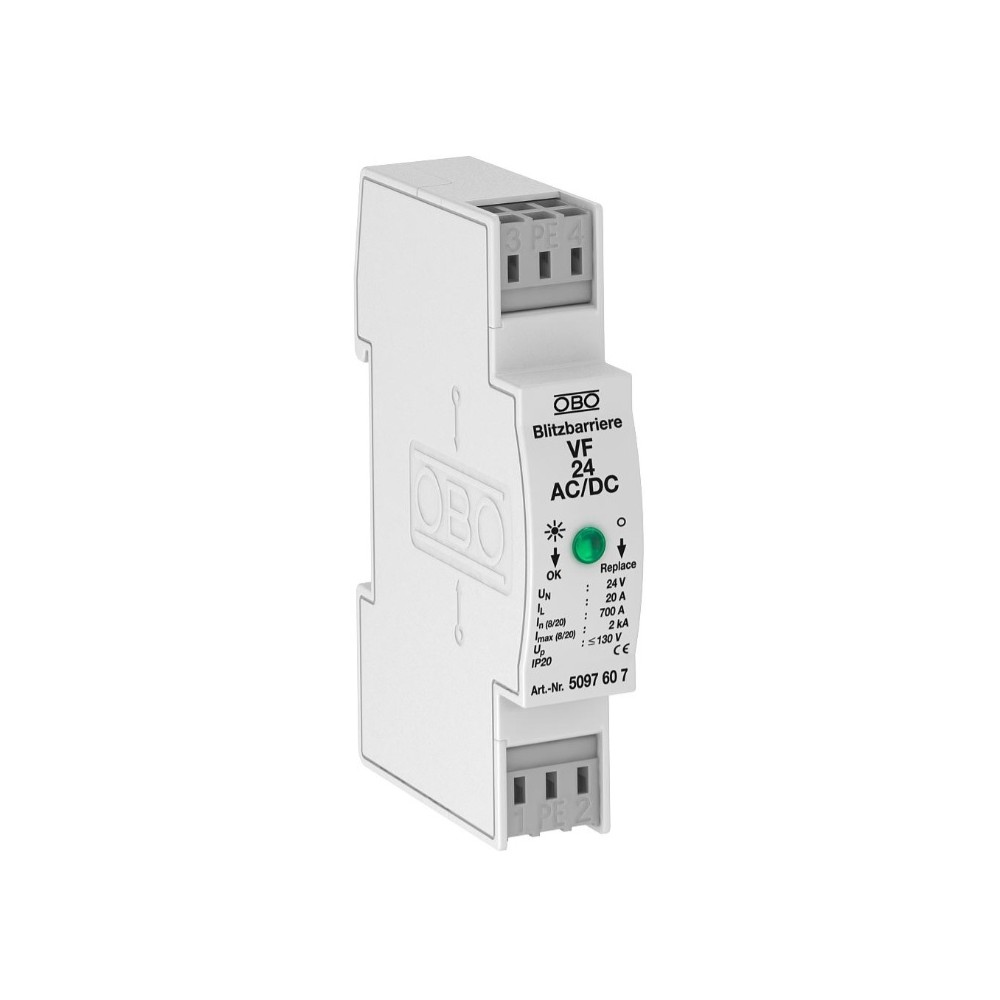

OBO 5097607 MCR protection for 2-pole for power supply, 24 V
| Blow-out | no |
|---|---|
| Cable type for surge protection devices | Power cable AV |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4051 kg CO2e / 1 Piece |
| Conductor cross-section, flexible (fine-wire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,14 mm² |
| Dimension | 24V AC |
| Explosion-tested version | no |
| Installation type | DIN rail 35 mm |
| Lightning protection zone LPZ | 2→3 |
| Max. mains-side overcurrent protection | 20 |
| Maximum back-up fuse | 20 A |
| Maximum continuous voltage AC | 34 V |
| Maximum continuous voltage DC | 46 V |
| Maximum discharge current (8/20 μs) | 2 kA |
| Network form | Other |
| Nominal discharge current (8/20 µs) | 0,7 kA |
| Nominal voltage AC (50/60 Hz) | 24 V |
|---|---|
| OBO_Nominal load current (input/output terminal) | 20 A |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Pole number | 3 |
| Pole version | 2 |
| Protection level wire-earth | <1200 V |
| Protection level wire-wire | <130 V |
| Protection rating | IP20 |
| Remote signalling | no |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 3 |
| SPD to IEC 61643-1 | Class III |
| Test class, type 3 | yes |
| Version for | 24 V version |
