R2D101 - R2DAAOOKG/US/CAN
New product

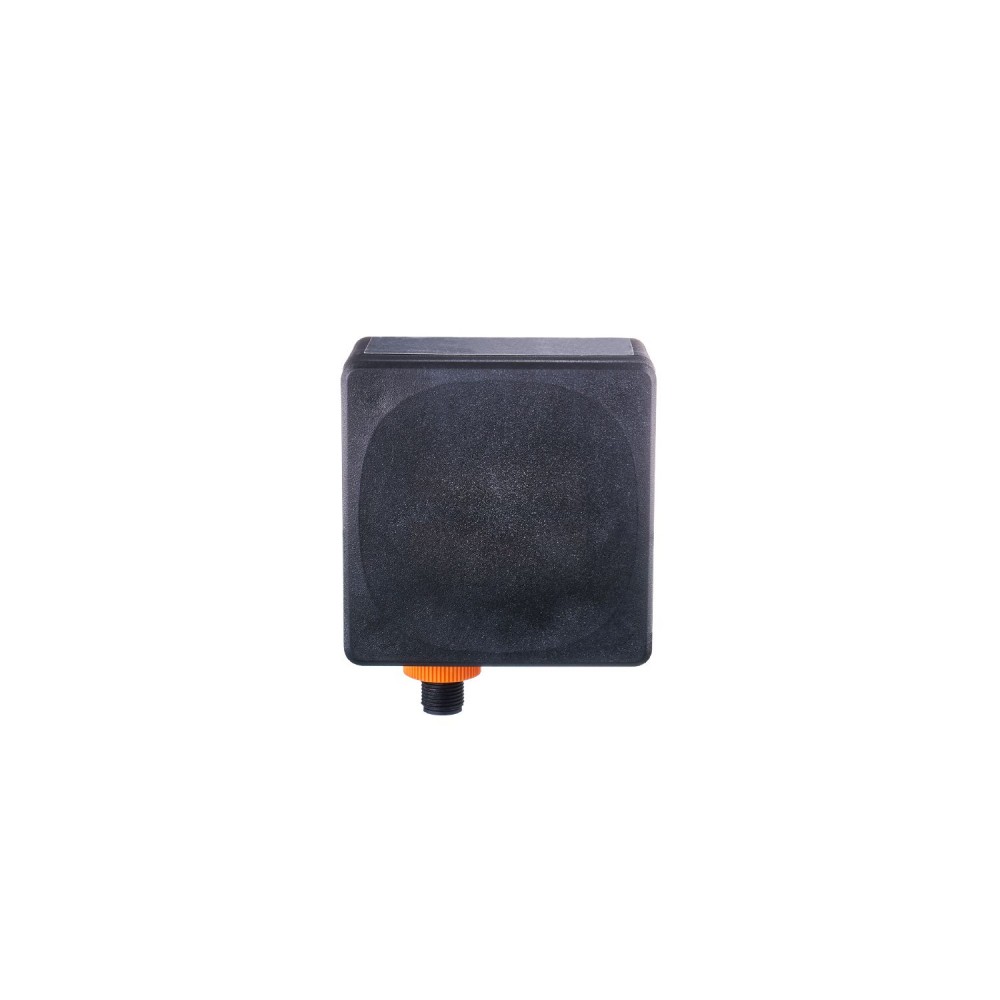

ifm R2D101 - R2DAAOOKG/US/CAN
Product characteristics
| Communication interface | CAN |
| Housing | rectangular |
| Dimensions[mm] | 80 x 80 x 45 |
Application
| Radio approval for | EU/RED; Great Britain; Argentina; Australia; Namibia; New Zealand; South Africa; Mexico | |
| Note on radio approval |
|
Electrical data
| Operating voltage[V] | 9...32 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) |
| Current consumption[mA] | < 300; (mean value: 150 mA) |
| Power consumption[W] | 9; (maximum) |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] | 1000 |
| Operating frequency [GHz] |
|
|
| Mean power spectral density EIRP [dBm/MHz] |
|
|
| Mean radiated power EIRP [dBm] |
|
Detection zone
| Range[m] | 0.1...50; (referred to E23014) | ||||
| Angle of aperture cylindrical[°] |
|
||||
| Note | static objects in the range < 1 m are not stably detected in area mode |
Measuring/setting range
| Measuring range[m] | 0.1...50; (see diagram:) |
| Sampling rate[Hz] | 20 |
