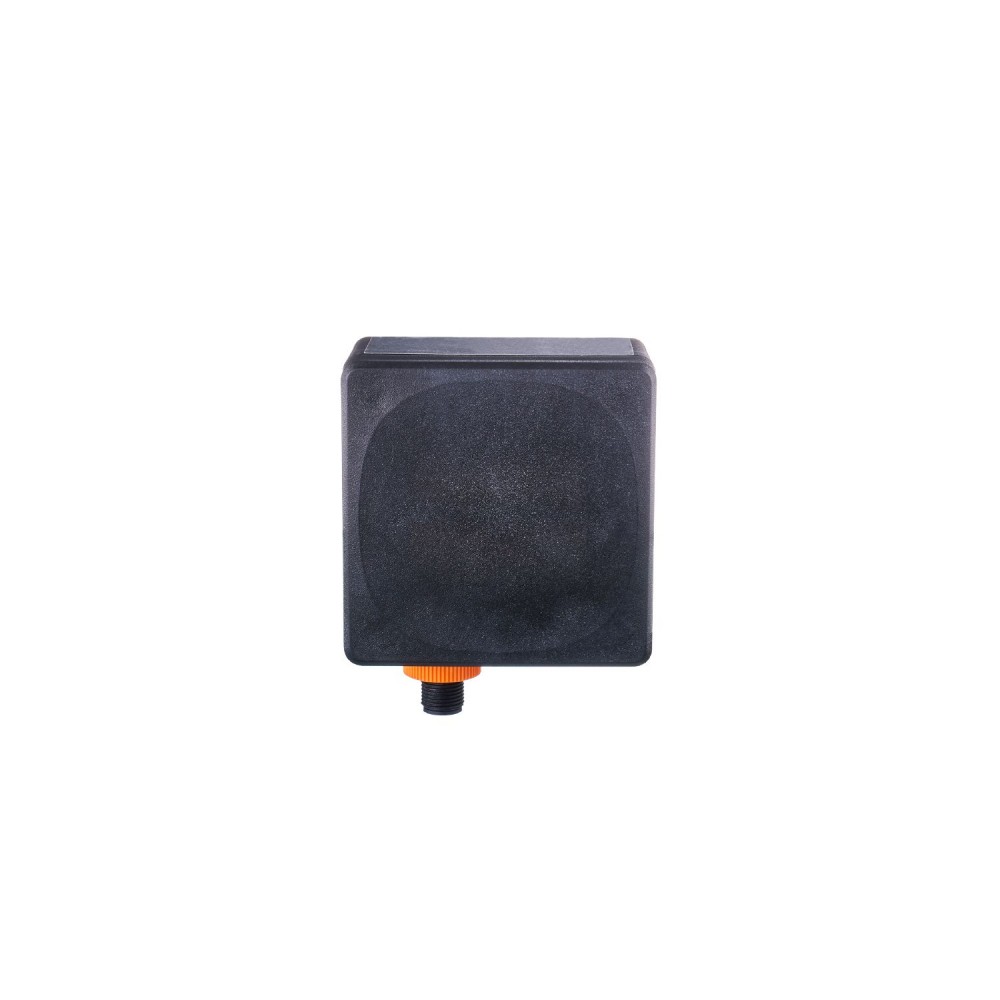

ifm R2D201 - R2DBAOOKG/US/CAN
Product characteristics
| Communication interface |
CAN |
| Housing |
rectangular |
| Dimensions[mm] |
80 x 80 x 45 |
Application
| Radio approval for |
EU/RED; USA; Canada; Great Britain; Australia; Chile; Mexico; Namibia; New Zealand; South Africa |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
Electrical data
| Operating voltage[V] |
9...32 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) |
| Current consumption[mA] |
< 300; (mean value: 150 mA) |
| Power consumption[W] |
9; (maximum) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time[ms] |
1000 |
| Operating frequency [GHz] |
|
| Maximum radiated average power spectral density EIRP [dBm/MHz] |
|
| Radiated peak power EIRP [dBm] |
|
Detection zone
| Range[m] |
0.1...50; (referred to E23014) |
| Angle of aperture cylindrical[°] |
| horizontal |
140 |
| vertical |
30 |
|
| Note |
static objects in the range < 1 m are not stably detected in area mode |
Measuring/setting range
| Measuring range[m] |
0.1...50; (see diagram:) |
| Sampling rate[Hz] |
20 |
