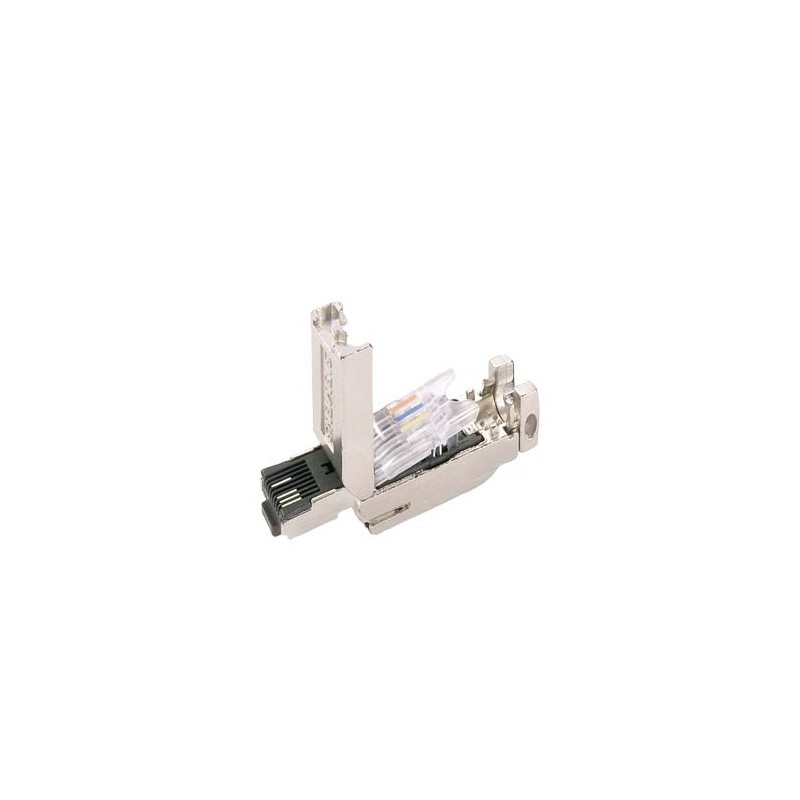

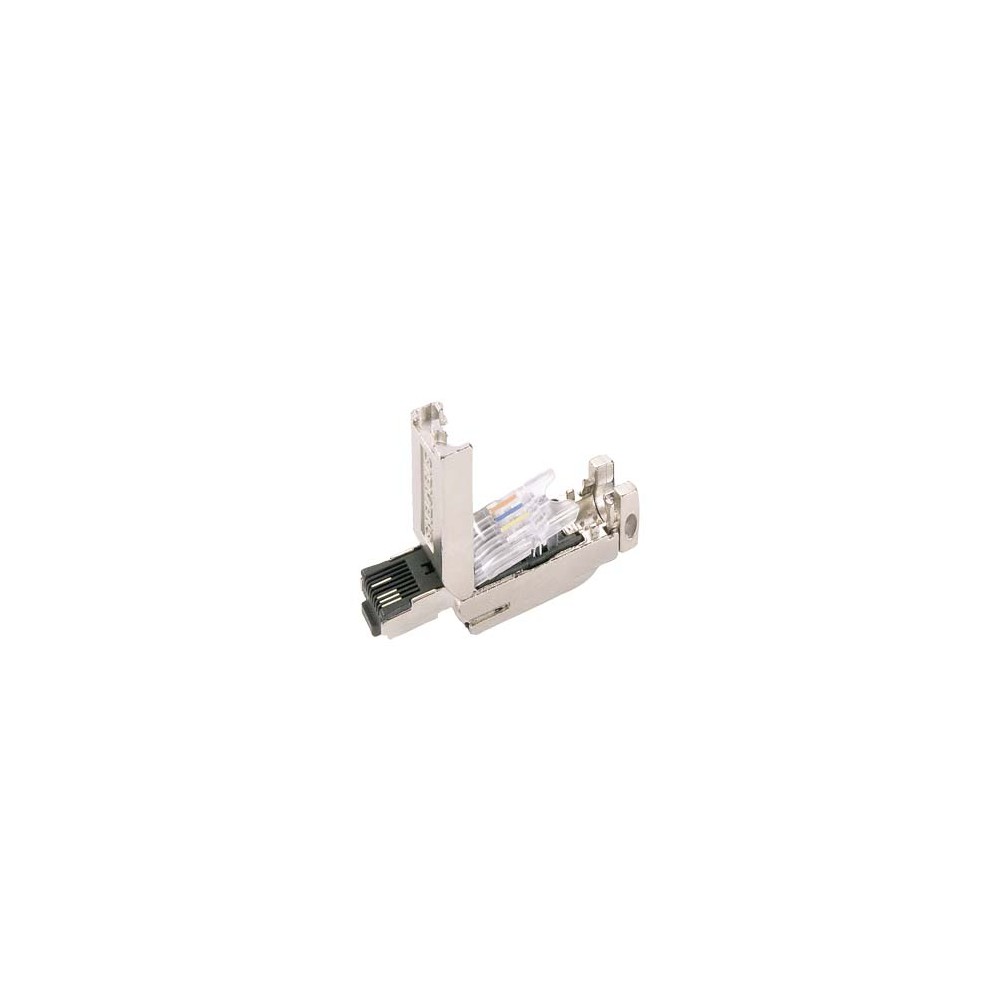

Siemens 6GK1901-1BB10-2AB0
| product type designation | IE FC RJ45 Plug 180 (2x2) | |
| product description | RJ45 data connector | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1901-1BB10-2AB0 | |
| suitability for use | For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system | |
| transfer rate | ||
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| ● for Industrial Ethernet FC TP cables | 4 | |
| ● for network components or terminal equipment | 1 | |
| type of electrical connection | ||
| ● for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 | |
| ● for network components or terminal equipment | RJ45 connector | |
| type of electrical connection / FastConnect | Yes | |
| mechanical data | ||
| material / of the enclosure | metal | |
| number of reuses | 10 | |
| locking mechanism design | other | |
| design, dimensions and weights | ||
| type of cable outlet | 180° cable outlet | |
| width | 13.7 mm | |
| height | 16 mm | |
| depth | 55 mm | |
| net weight | 35 g | |
| connectable cable cross-section | 6.5 ... 6.5 mm | |
| connectable conductor cross-section | 0.33 mm² | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +85 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| product features, product functions, product components / general | ||
| product feature | ||
| ● PoE capability | Yes | |
| ● PoE+ capability | Yes | |
| ● silicon-free | Yes | |
| product component | ||
| ● strain relief | Yes | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| ● RoHS conformity | Yes | |
| ● UL approval | Yes | |
| ● cULus approval | Yes | |
| ● railway application in accordance with EN 50155 | No | |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 | |
| standard for structured cabling | Cat5 | |
