6AG1901-1BB10-7AA0
New product

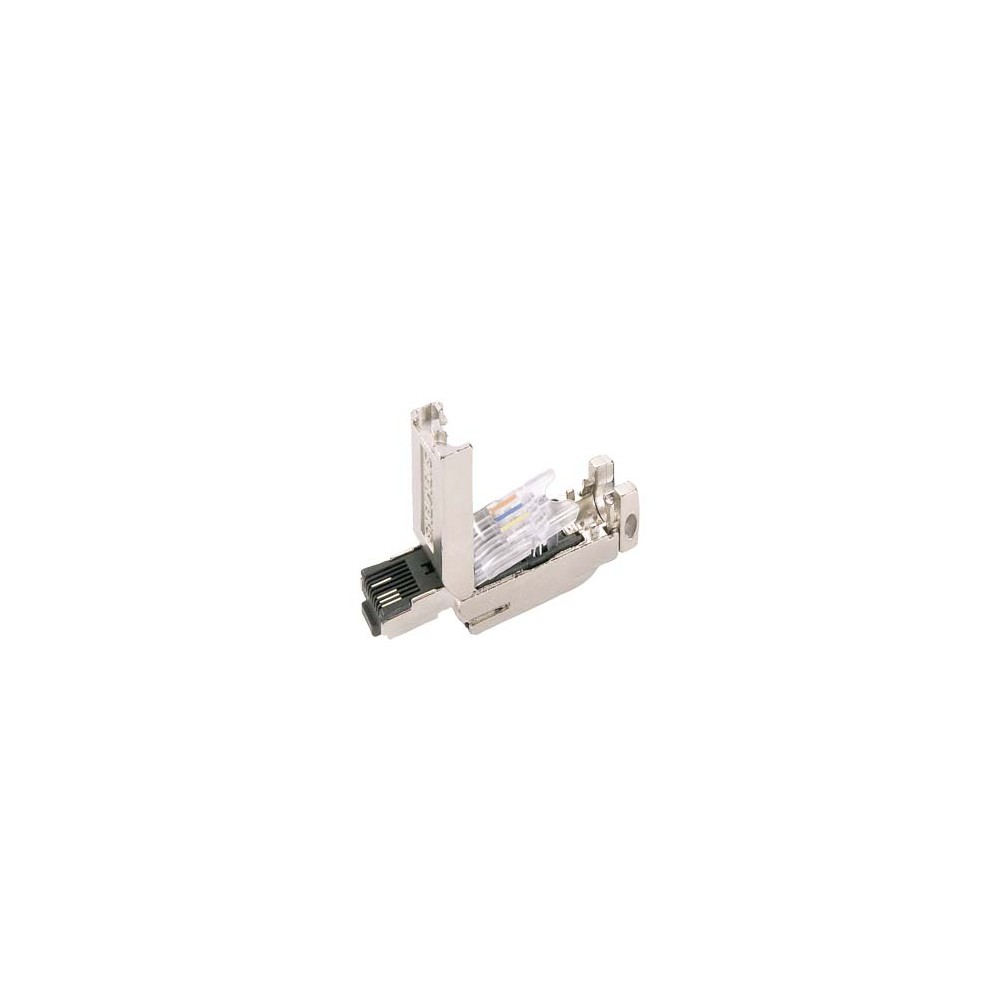

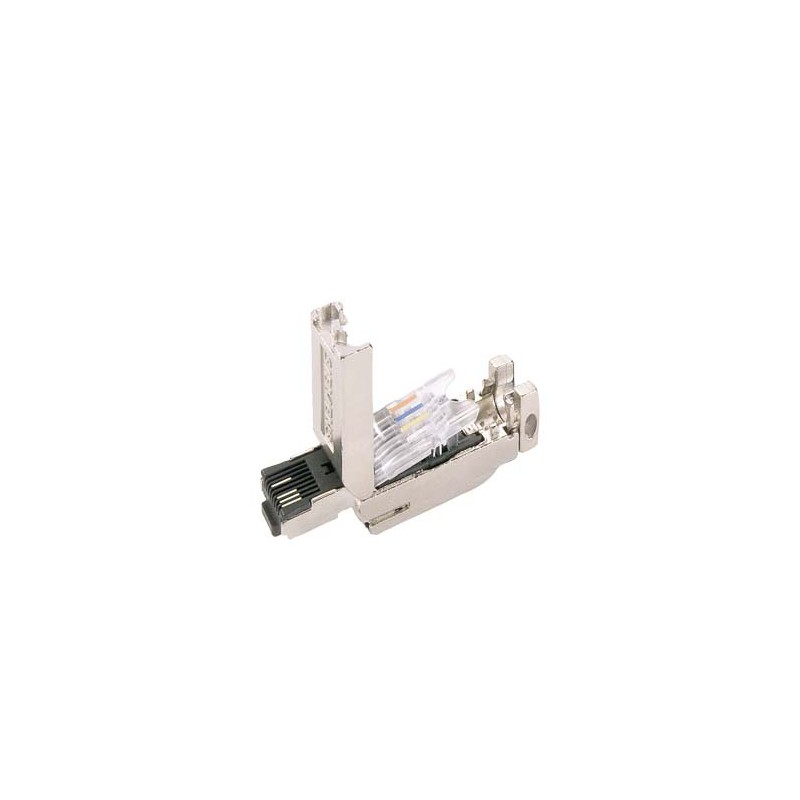

Siemens 6AG1901-1BB10-7AA0
product type designation |
RJ45 plug-in connector | |
| Technical Product Detail Page | https://i.siemens.com/1P6AG1901-1BB10-7AA0 | |
| transfer rate | ||
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| ● for Industrial Ethernet FC TP cables | 4 | |
| type of electrical connection | ||
| ● for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable | |
| ambient conditions | ||
| ambient temperature | ||
| ● in horizontal mounting position / during operation | 70 ... -40 °C | |
| ● during storage and transport | 70 ... -40 °C | |
| relative humidity | ||
| ● with condensation / according to IEC 60068-2-38 / maximum | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation | |
| type of coating | ||
| ● for electronic devices in railway applications according to EN 50155 | Yes; protective coating of the Class PC2 according to EN 50155:2018 | |
| standards, specifications, approvals | ||
| standard for structured cabling | Cat5 | |
