6ES7147-5JD01-0BA0
New product

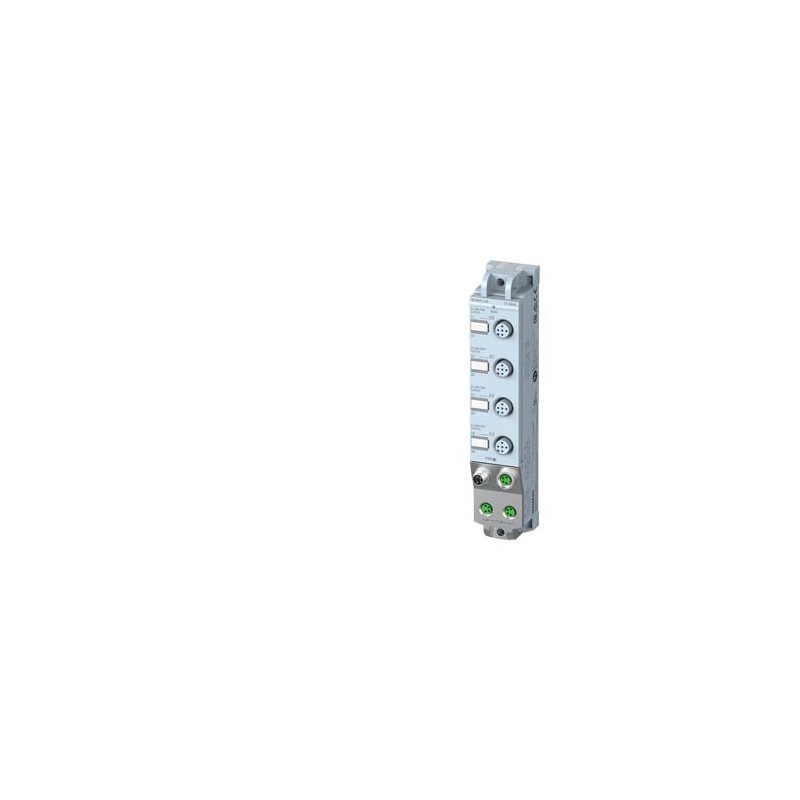

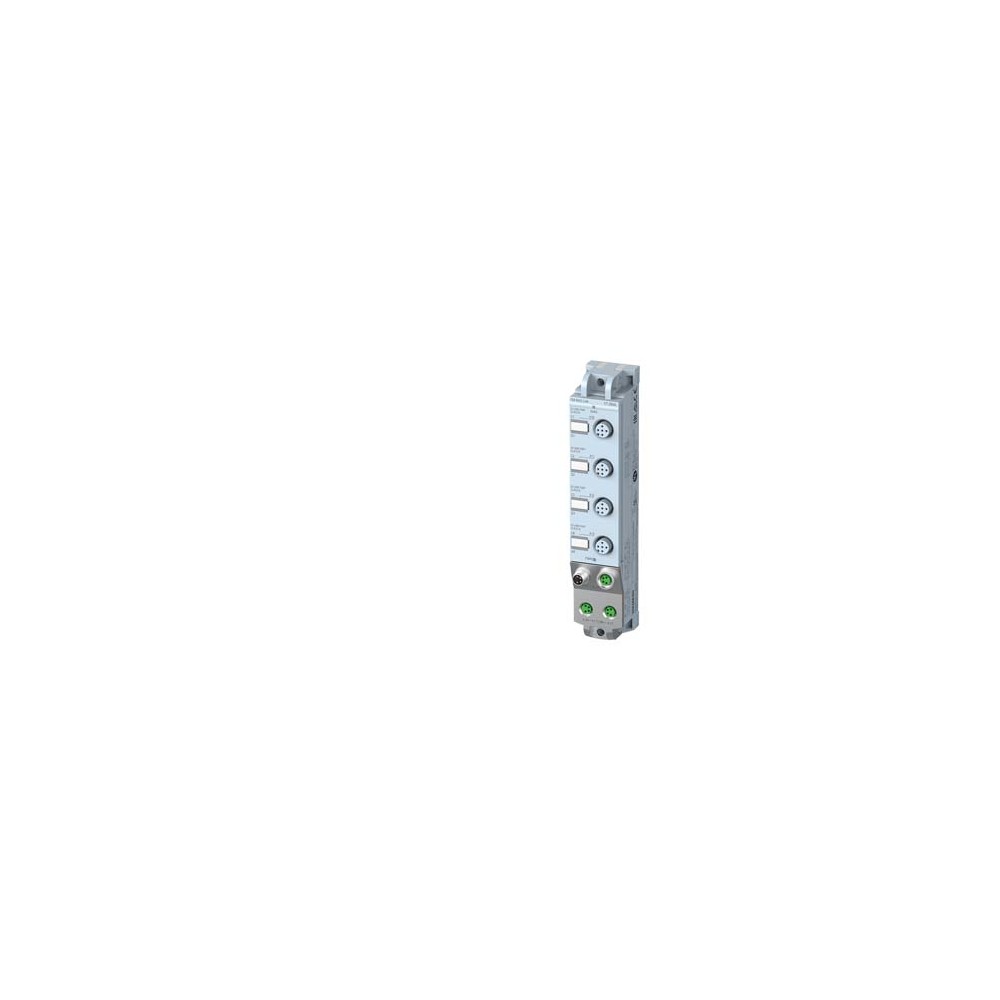

Siemens 6ES7147-5JD01-0BA0
| General information | ||
| Product type designation | CM 4x IO-Link | |
| HW functional status | FS01 | |
| Firmware version | V2.0.0 | |
| Product function | ||
| ● I&M data | Yes; I&M0 to I&M4 | |
| Engineering with | ||
| ● STEP 7 TIA Portal configurable/integrated from version | STEP 7 V18 or higher | |
| ● STEP 7 configurable/integrated from version | STEP 7 V5.7 or higher SP1 or higher | |
| ● PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 | |
| ● PROFINET from GSD version/GSD revision | GSDML V2.4.x | |
| Operating mode | ||
| ● IO-Link | Yes | |
| ● DI | Yes | |
| ● DQ | Yes; max. 100 mA | |
| Supply voltage | ||
| power supply according to NEC Class 2 required | No | |
| Load voltage 1L+ | ||
| ● Rated value (DC) | 24 V | |
| ● permissible range, lower limit (DC) | 20.4 V | |
| ● permissible range, upper limit (DC) | 28.8 V | |
| ● Reverse polarity protection | Yes; against destruction | |
| Load voltage 2L+ | ||
| ● Rated value (DC) | 24 V | |
| ● permissible range, lower limit (DC) | 20.4 V | |
| ● permissible range, upper limit (DC) | 28.8 V | |
| ● Reverse polarity protection | Yes; Against destruction; actuator power supply outputs applied with reversed polarity | |
| Input current | ||
| Current consumption (rated value) | 30 mA; without load | |
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value | |
| from load voltage 2L+, max. | 4 A; Maximum value | |
| Encoder supply | ||
| Number of outputs | 4 | |
| 24 V encoder supply | ||
| ● Short-circuit protection | Yes; per channel, electronic | |
| ● Output current, max. | 4 A; total current of all ports, max. 2 A per channel | |
| Power loss | ||
| Power loss, typ. | 3 W | |
