New
6ES7137-6BD00-0BA0
New product

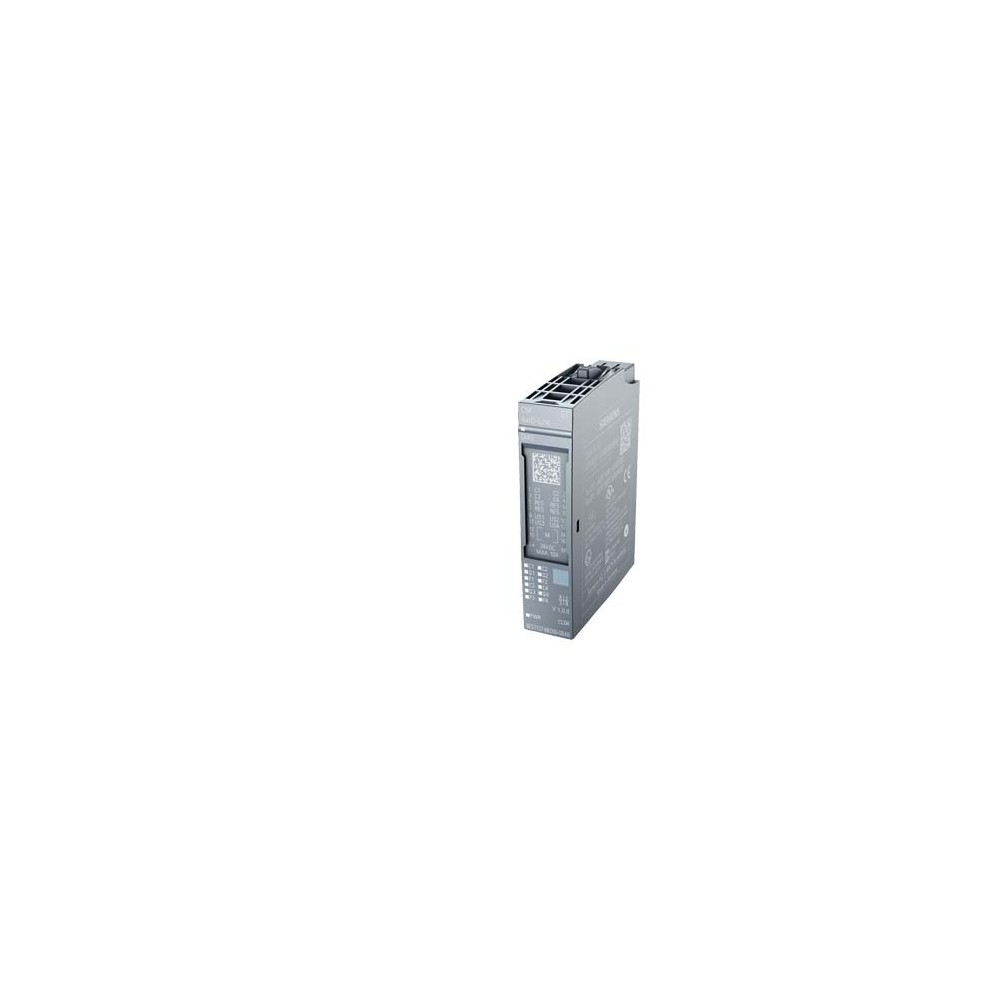

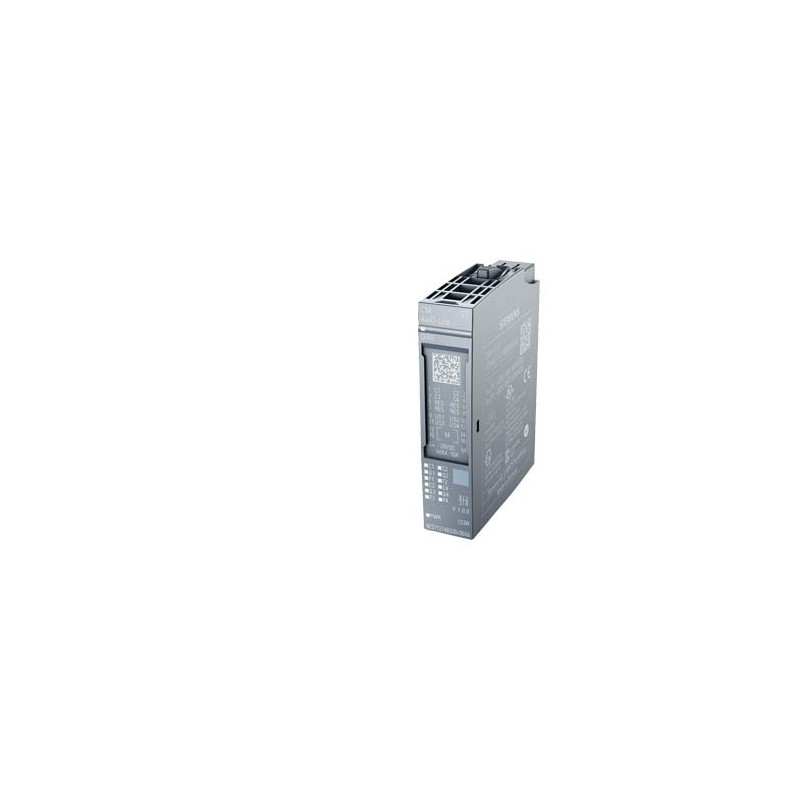

Siemens 6ES7137-6BD00-0BA0
| General information | ||
| Product type designation | CM 4 x IO-Link ST | |
| HW functional status | FS20 | |
| Firmware version | V2.2.2 | |
| ● FW update possible | Yes | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC04 | |
| Product function | ||
| ● I&M data | Yes; I&M0 to I&M3 | |
| ● Isochronous mode | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 | |
| Engineering with | ||
| ● STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 or higher | |
| ● STEP 7 configurable/integrated from version | STEP 7 V5.5 or higher | |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| ● IO-Link | Yes | |
| ● DI | Yes | |
| ● DQ | Yes; max. 100 mA per channel | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| power supply according to NEC Class 2 required | No | |
| Input current | ||
| Current consumption, max. | 45 mA; without load | |
| Encoder supply | ||
| Number of outputs | 4 | |
| Output current | ||
| ● Rated value | 700 mA; Per channel | |
| 24 V encoder supply | ||
| ● Short-circuit protection | Yes | |
| ● Output current, max. | 2.1 A | |
| Power loss | ||
| Power loss, typ. | 1 W | |
