6ES7547-1JF00-0AB0
New product

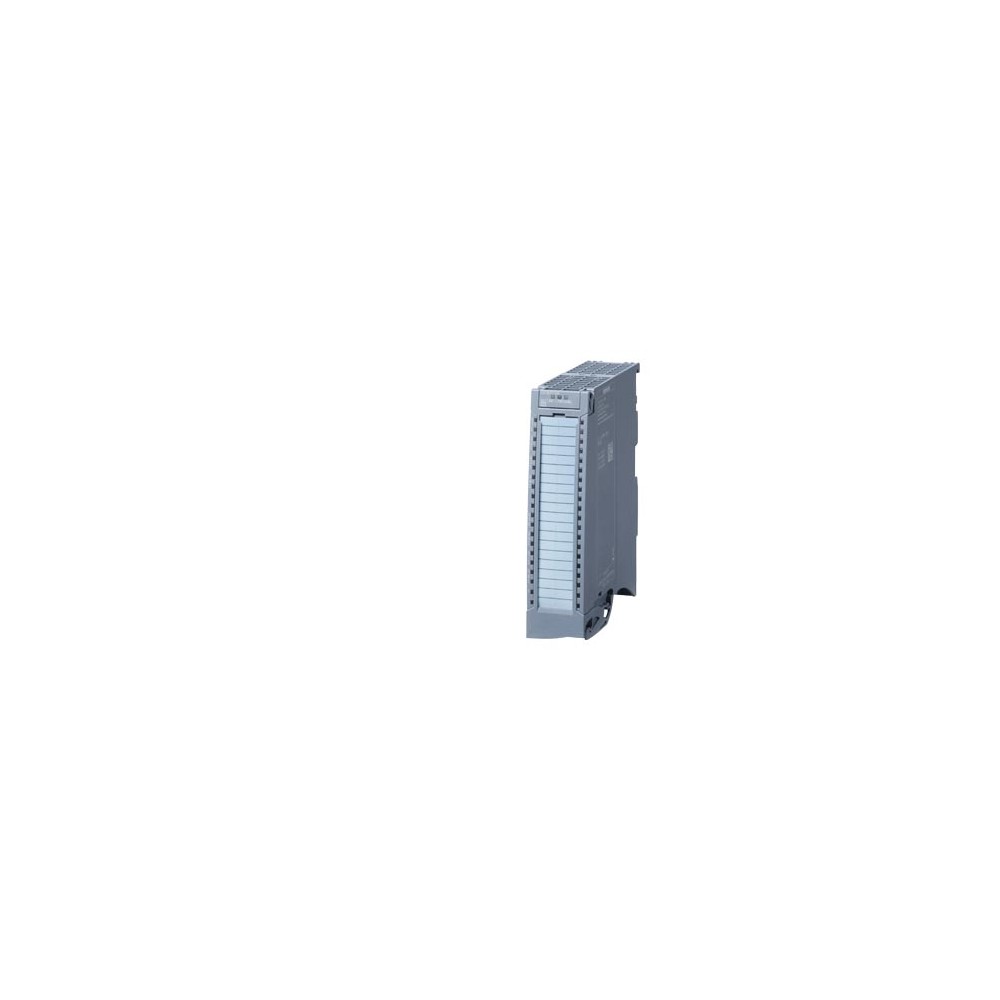

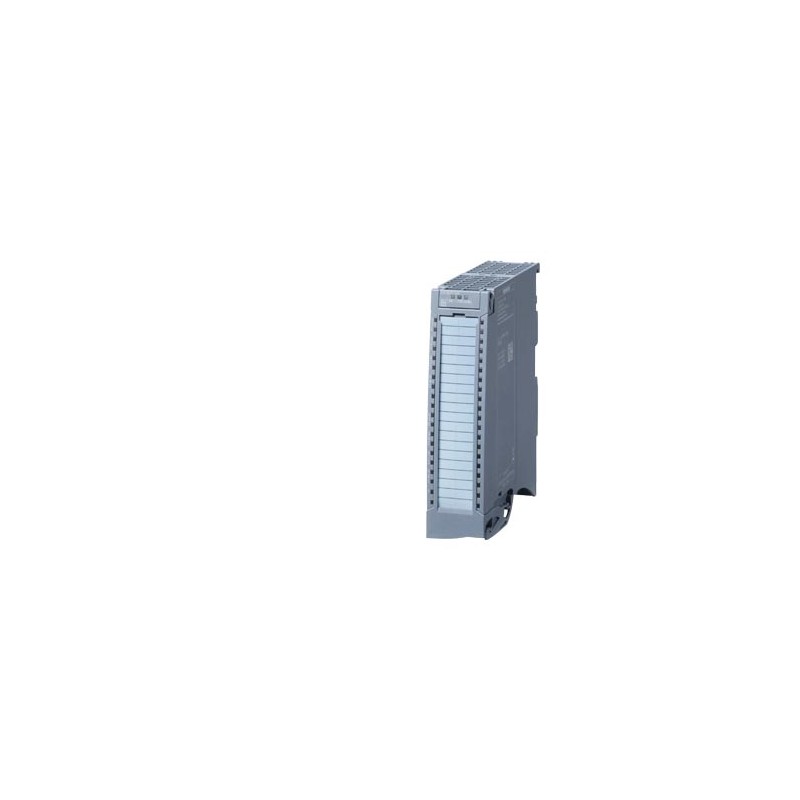

Siemens 6ES7547-1JF00-0AB0
| General information | ||
| Product type designation | CM 8xIO-Link | |
| HW functional status | FS04 | |
| Firmware version | V1.0.2 | |
| ● FW update possible | Yes | |
| Product function | ||
| ● I&M data | Yes; I&M0 to I&M3 | |
| ● Isochronous mode | No | |
| Engineering with | ||
| ● STEP 7 TIA Portal configurable/integrated from version | V15.1 with HSP 274 | |
| ● STEP 7 configurable/integrated from version | Configurable via GSD file | |
| ● PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 | |
| ● PROFINET from GSD version/GSD revision | GSDML V2.34 | |
| Operating mode | ||
| ● IO-Link | Yes | |
| ● DI | Yes | |
| ● DQ | No | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 50 mA; without load | |
| Encoder supply | ||
| Number of outputs | 8 | |
| Output current | ||
| ● Rated value | 1 A; 4 A total current per module | |
| 24 V encoder supply | ||
| ● Short-circuit protection | Yes; per channel, electronic | |
| Power | ||
| Power consumption from the backplane bus | 1.1 W | |
