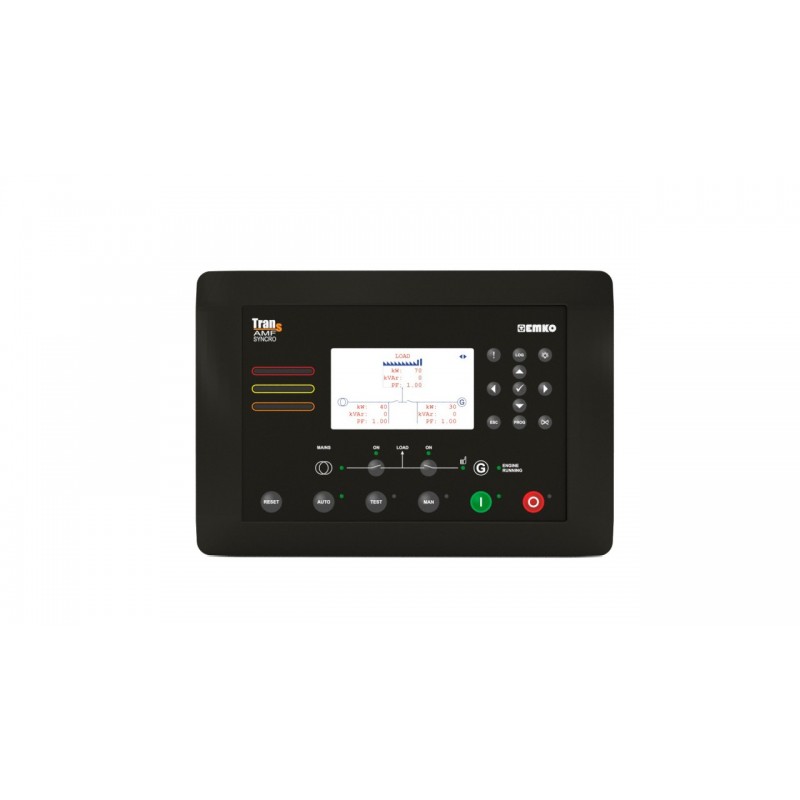

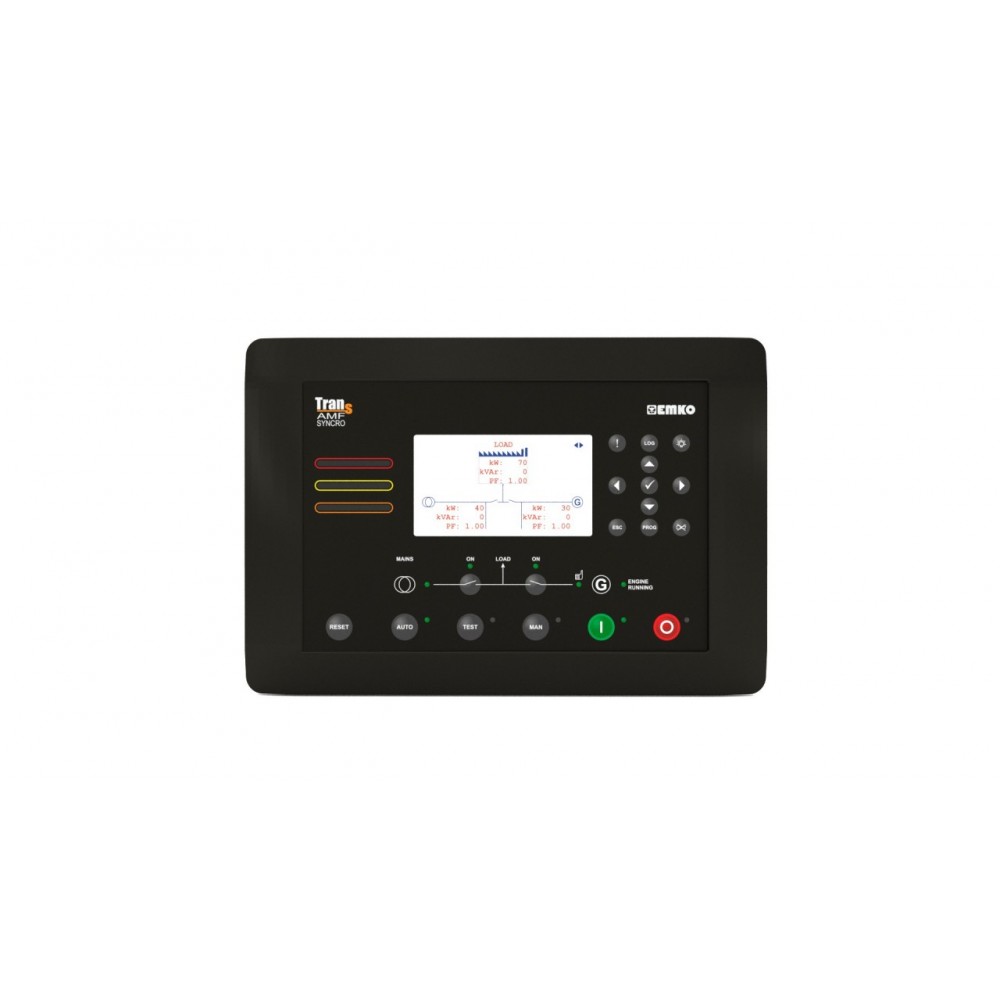

TRANS AMF SYNCRO Automatic Gen-Set Controller with Transfer Switching & Load Sharing

New product

TRANS AMF SYNCROAutomatic Gen-Set Controller with Transfer Switching & Load SharingMains voltages and frequency measurements
Generator voltages and frequency measurements
Peak lopping (mains or genset)
Power export to mains
Mains de-coupling protection with R.O.C.O.F and vector shift methods
Manual voltage/frequency adjustment
Direct/Reverse Governor andAVRcontrol
Synchroscope display
Logic Controller functionality for PLC

Features Descriptions
LCD Languages English, Turkish
Inputs 13x Configurable digital, 4x resistive configurable input, Magnetic Pickup,
Charge Alternator D+(WL) inputs
Outputs Configurable 2x Relays, 7x Transistors, GBR outputs
Current Measurement 3 phases CT inputs for Load Current, 1x CT input for Earth Current
3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics.
Voltage Measurement 3 phase mains, 3 phase generator
3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics.
Case
Dimensions 276 mm x 189 mm x 45 mm.
Protection Class IP65 at front side
Operating Range
DC Battery Supply range 8 to 32Vdc, max.operating current is 860mA
Sender Measurement 0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm
Cabin.Temp.Measuremet
Operating / Storage Temp. -20°C with +70°C / -40°C with +80°C
Expansions
Internal USB programming and communication port, Ethernet, RS485
GPRS Optional
Embedded WEB server Optional
Serial ModBus
Approvals CE, GOST-R
