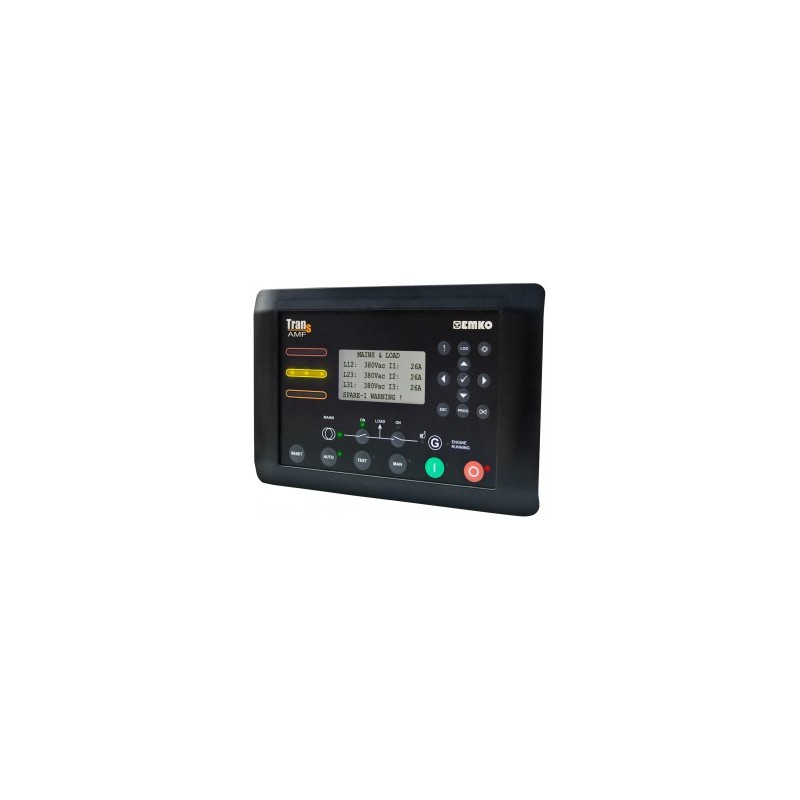

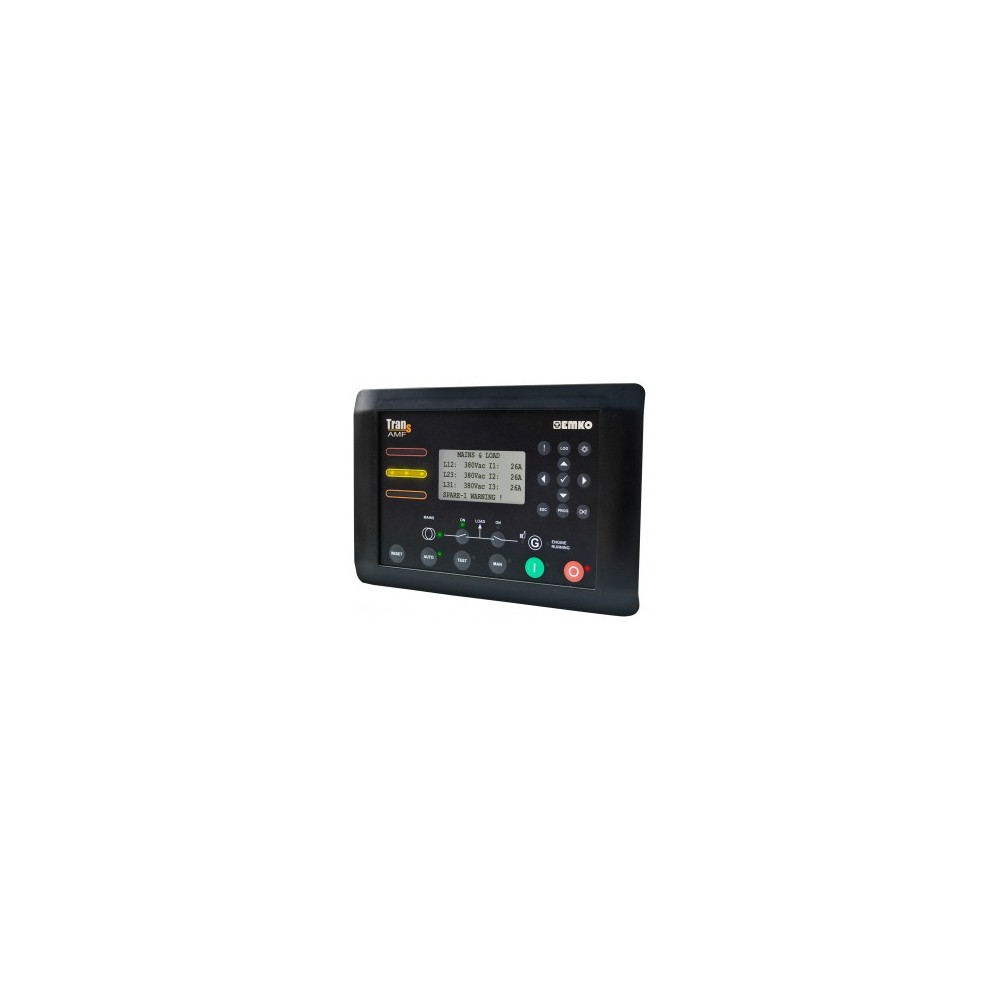

Trans-AMF Automatic Genset Controller with Transfer Switching

New product

Trans-AMFAutomatic Genset Controller with Transfer SwitchingCanBus J1939 ECU communication
Selectable second language
Log last 50 events & alarm information with measured values
Statistics records
Mains and Generator phase sequence control
Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc.
Automatic transfer switching control and engine control
SPN, FMI and OC values reading from engines via J1939

Features Descriptions
LCD Languages English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian
English / Ukrainian, English / Polish
Inputs 6x Configurable digital, 4x Analogue senders, 1x Cabinet temperature, Magnetic Pickup, Charge Alternator D+(WL) inputs
Outputs Configurable 2x Relays, 4x Transistors, MBR and GBR outputs
Current Measurement 3 phases CT inputs for Load Current, 1x CT input for Earth Current
Voltage Measurement 3 phase mains, 3 phase generator
Case
Dimensions 229mm x 152mm x 41mm
Protection Class NEMA 4X IP65 at front side
Operating Range
DC Battery Supply range 8 to 32Vdc, max.operating current is 360mA
Sender Measurement 0 ... 1300 ohm, Accuracy: 1%FS, resolution: 1 ohm
Cabin.Temp.Measuremet -50 ... +100 ºC, Accuracy: 1 % FS, resolution: 1 ºC.
Operating / Storage Temp. -20°C ... +70°C / -30°C ... +80°C
Expansions
Internal RS-485 Communication
GPRS Trans-GPRS , Trans-Web_GPRS
Embedded WEB server Trans-Web_Ethernet
Serial ModBus Trans-Messenger.485 module with
Approvals CE, GOST-R
