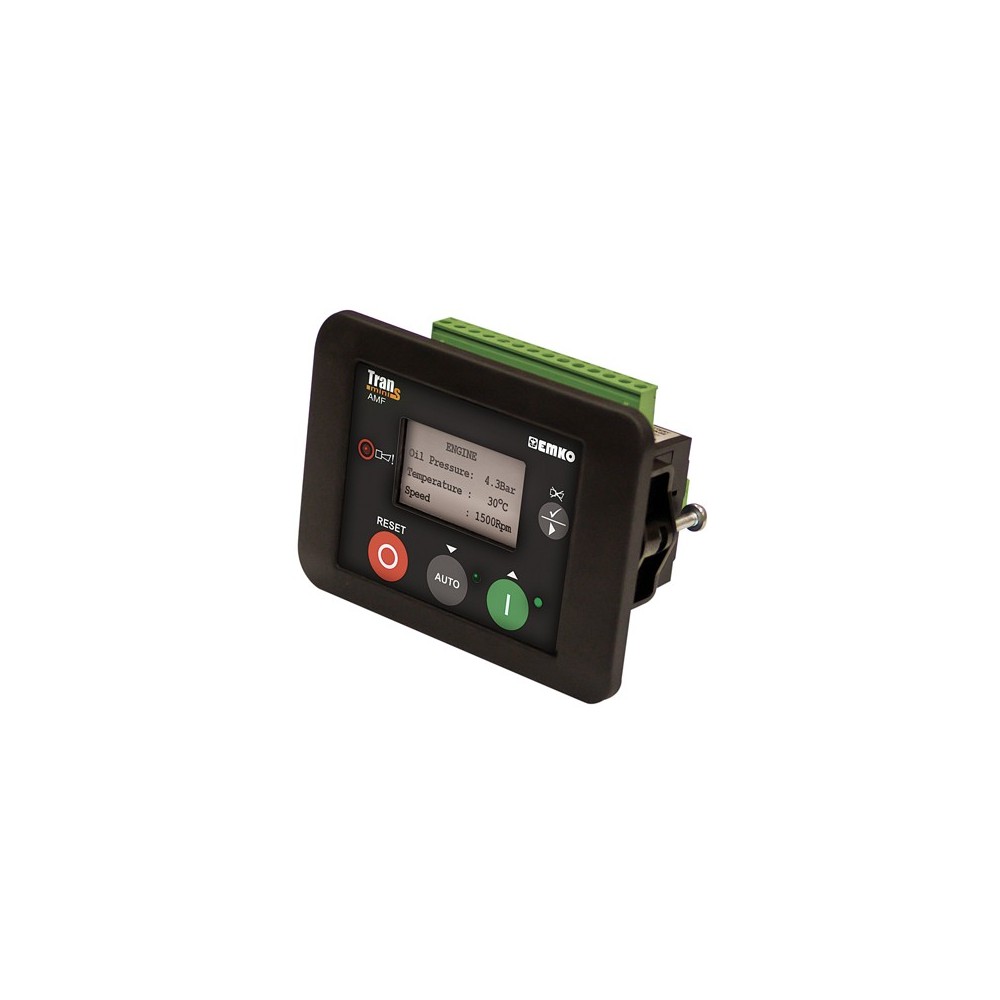

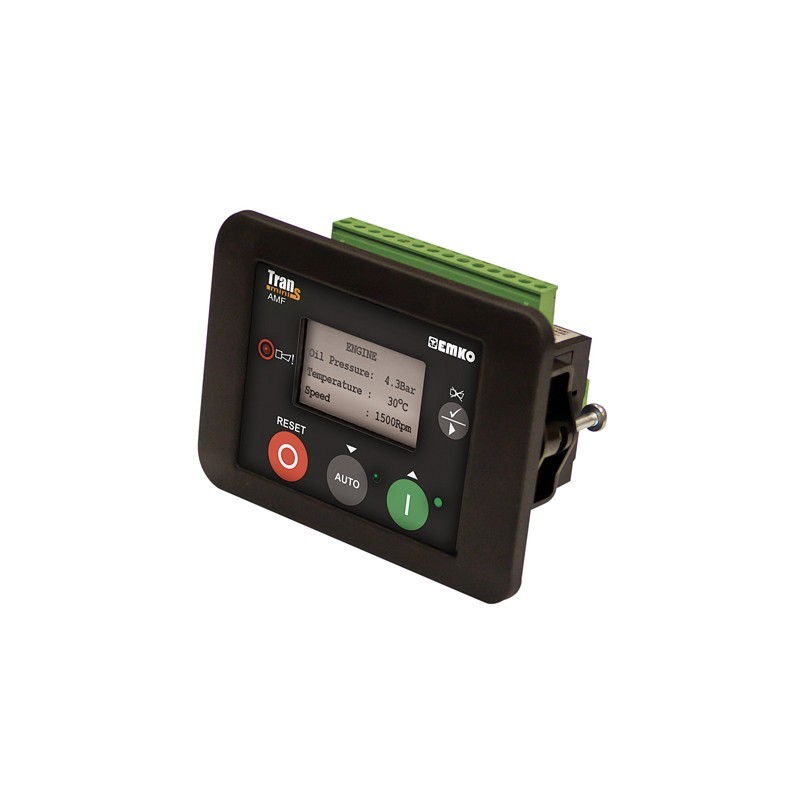

Trans-MiniAMF Automatic Genset Controller with Transfer Switching

Condition: New product

More info

Trans-MiniAMFAutomatic Genset Controller with Transfer SwitchingCanBus J1939 ECU communication
Remote Start/Stop, Speed and Idle mode control via J1939
Power factor measurement for 1 phases
Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc...
Speed sensing from alternator voltage or magnetic pickup
SPN, FMI and OC values reading from engines via J1939

Features	Descriptions
LCD Languages	English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian
Inputs	3x Configurable digital, 3x Analogue senders, Magnetic Pickup, Charge Alternator D+(WL) input
Outputs	6x Configurable Transistor, Mains and Generator Contactor Outputs
Current Measurement	1 phases CT inputs for Load Current, 1x CT input for Earth Current
Voltage Measurement	3 phases for Mains, 1 phases for Alternator
Case
Dimensions	111mm x 81mm x 61mm
Protection Class	NEMA 4X IP65 at front side
Operating Range
DC Battery Supply range	8 to 32Vdc, max.operating current is 360mA
Sender Measurement	0 ... 1300 ohm, Accuracy: 1%FS, resolution: 1 ohm
Cabin.Temp.Measuremet
Operating / Storage Temp.	-20°C ... +70°C / -30°C ... +80°C
Expansions
Internal	Parameter configuration via RS-232 serial communication
GPRS
Embedded WEB server
Serial ModBus
Approvals	CE, GOST-R
