SM62DMHTS1C100A000 SM6-36 DM1A-T
New

SM62DMHTS1C100A000 SM6-36 DM1A-T

New product

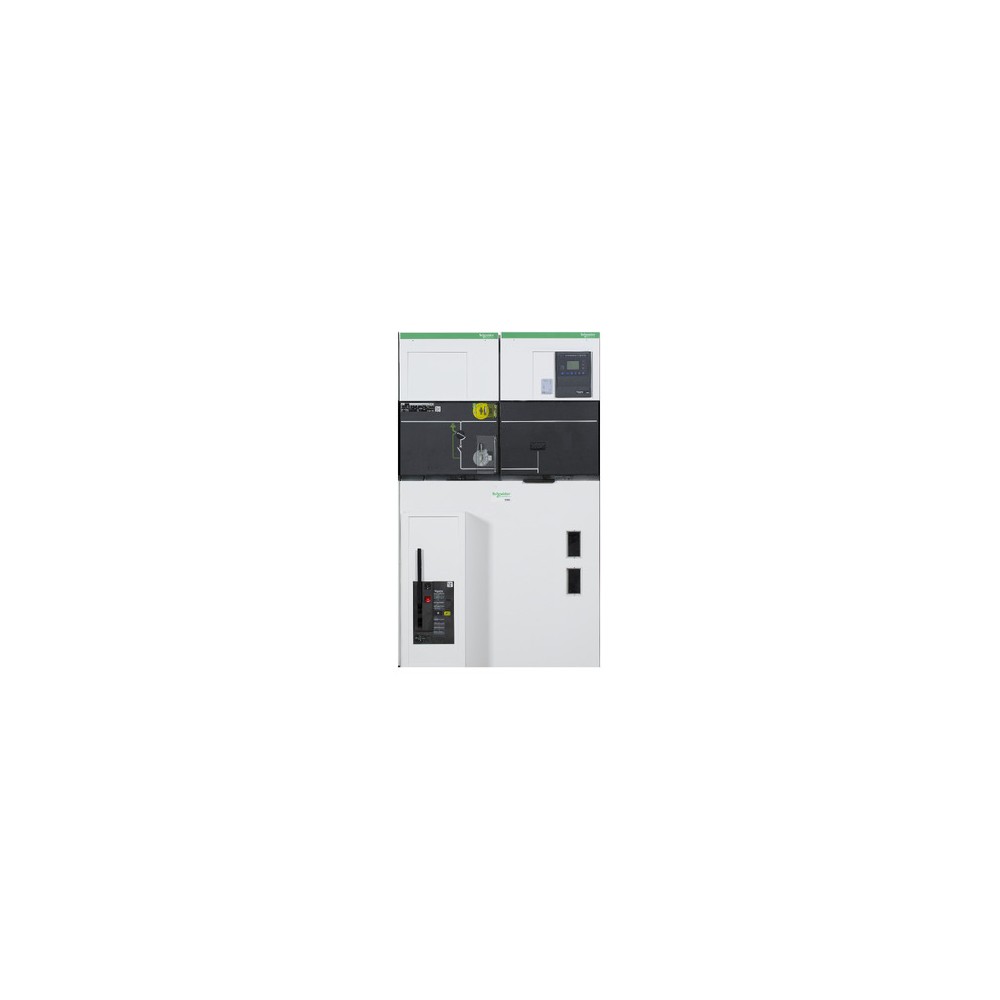

Schneider SM62DMHTS1C100A000 SM6-36 DM1A-T Air Insulated Modular Switchgears

Product line SM6
Technology Type Air insulated switchgear
SF1
Product Group DM1A line/toroid
Product or Component Type Cell
Internal arch classification A-FL bottom gas outlet
Exhaust gas Gas outlet bottom
Internal arc protection 16 kA 1 s
network frequency 50/60Hz
dielectric test voltage 36 kV
[Icw] rated short-time withstand current 170 kV peak
[Uimp] rated impulse withstand voltage 70 kV rms 50 Hz for 1 min
Rated continuous current (Ir) 630 A
[Icw] rated short-time withstand current 16 kA rms 1 sec
Standards IEC 62271-200
IEC 62271-100:2012

Complement
Primary current transformer 100 A
Secondary current transformer 5 A 5 VA at class 10P, 10
busbar nominal current 630 A
operator type CS
Spring-loaded RI type on/off button breaker
rated supply voltage of auxiliary and control circuits (Ua) 24 V DC motor
24 V DC opening coil
24 V DC closing coil
type of key lock Recessed lock
device editing Thermal sensor TH110 (integrated)
Protection Type Cutter
CB name SF1 type 1
CB setup Separable
CB operating position From the left (B1)
Mass 600 kg
Width 1000mm
Depth 1400mm

Environment
ambient air temperature for operation -5…40 °C
Storage Environmental Conditions -40…70 °C
IP protection degree IP3x
vibration resistance 0.5 gn horizontal
0.4 gn vertical
Working Height <= 1000m

Schneider, Schneider sale, Schneider dıstributor, Schneider partner

SM6-36 Catalogue
