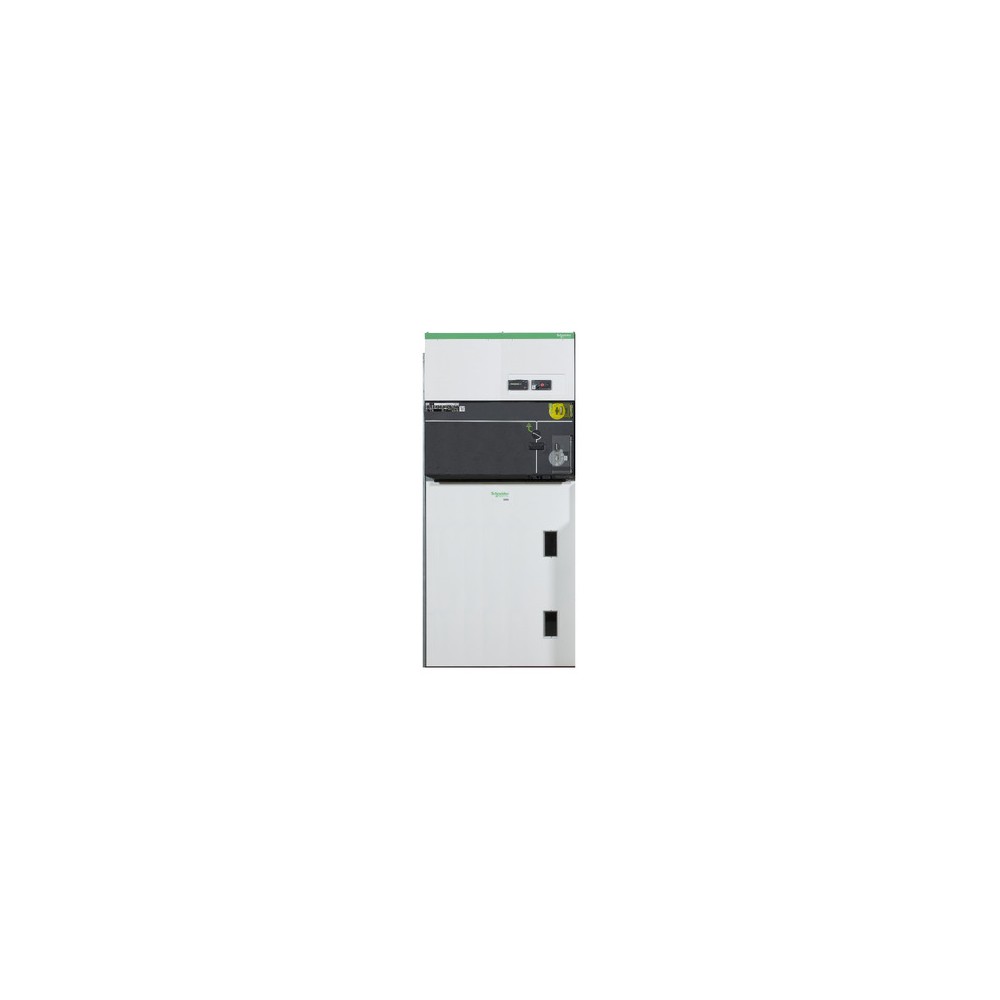

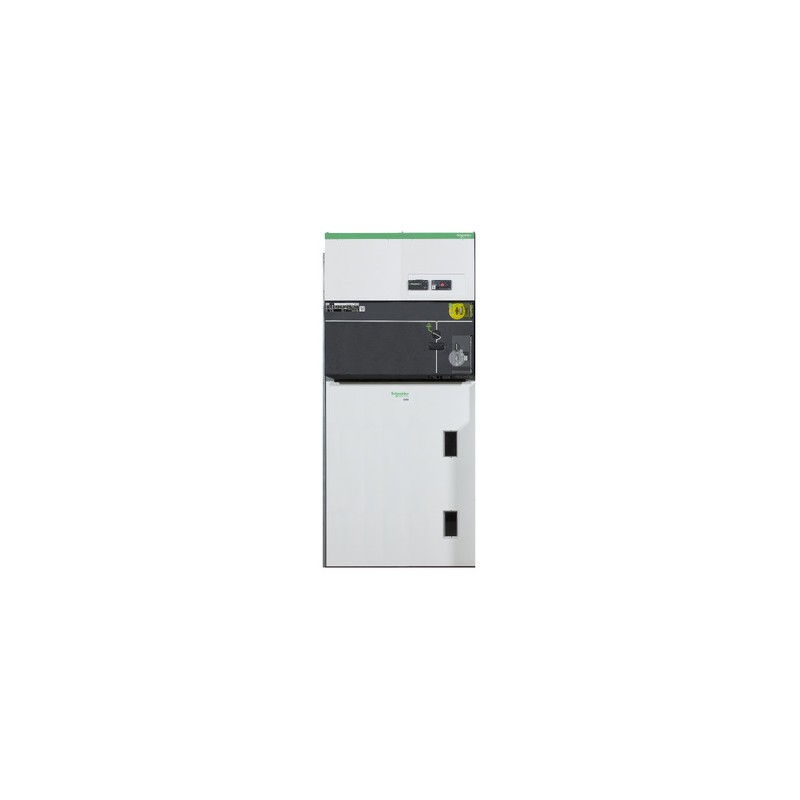

Schneider SM62CMC11MX0000000 SM6-36 CM750C Air Insulated Modular Switchgears

Product line SM6
Technology Type Air insulated cell
Product Group CMC
Product or Component Type Measurement
Internal arch classification A-FL downward gas outlet
Exhaust gas Gas outlet downwards
Internal arc protection 16 kA 1 s
network frequency 50/60Hz
dielectric test voltage 36 kV
[Icw] rated short-time withstand current 170 kV peak
[Uimp] rated impulse withstand voltage 70 kV rms 50 Hz for 1 min
Rated continuous current (Ir) 630 A
[Icw] rated short-time withstand current 16 kA rms 1 sec
Standards IEC 62271-200

Complement
Primary voltage transformer 34.5 kV/V3
busbar nominal current 630 A
operator type FENCE
rated supply voltage of auxiliary and control circuits (Ua) 24...220 V DC opening coil
24...220 V DC closing coil
control circuit voltage limits DIN 2.5A
Mass 590 kg
Width 1000mm
Depth 1400mm

Environment
ambient air temperature for operation -5…40 °C
IP protection degree IP3x
vibration resistance 0.5 gn horizontal class 2
0.4 gn vertical class 2
Working Height <= 1000m
