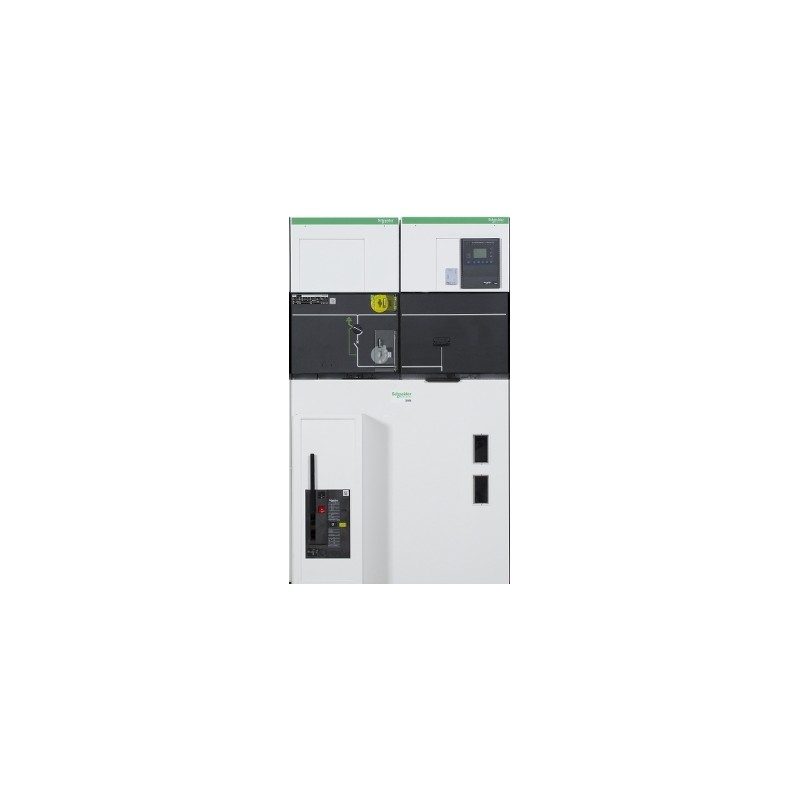

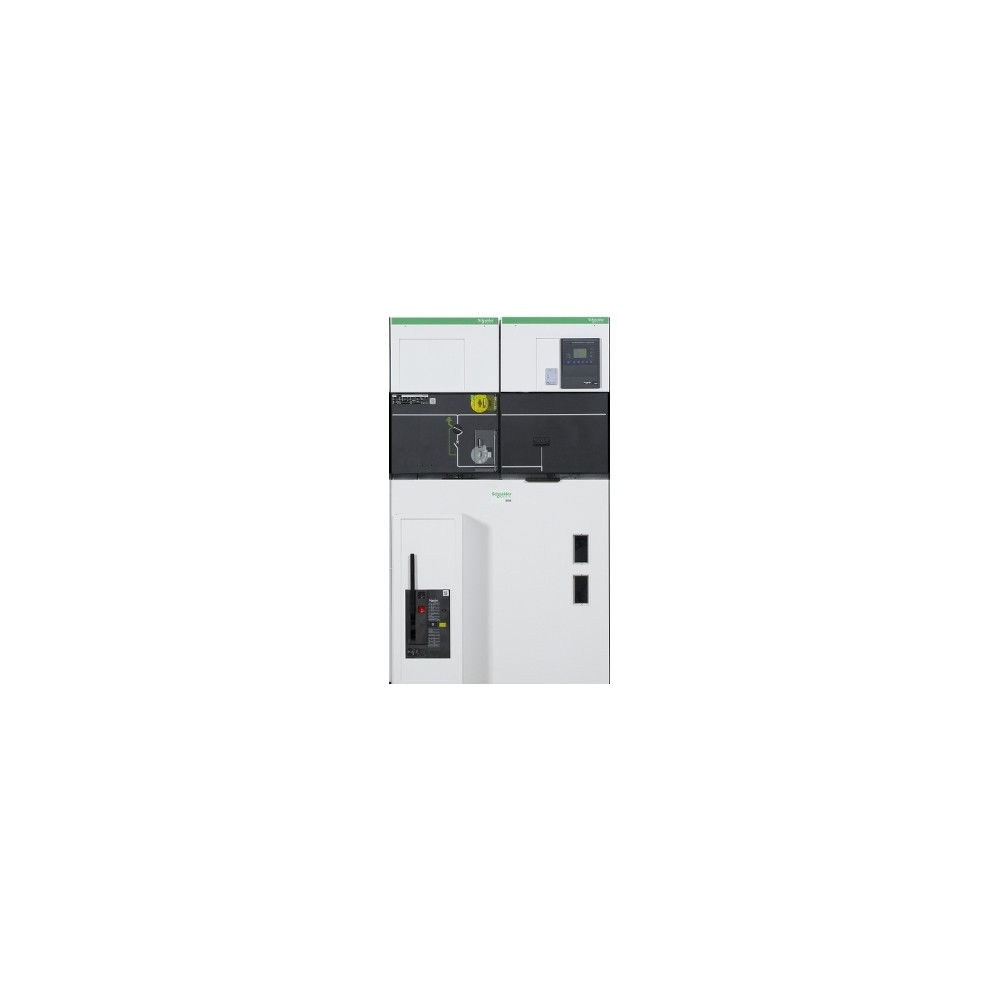

Schneider SM62DS36I4D206CR01 SM6-36 DM1A IAC16kA 1s 36kV 16kA1s 630A SEPAM 50-100ACT cubicle

Condition: New product

range of product	SM6
technology type	Air insulated switchgear SF6 gas
device short name	DM1A
product or component type	Cubicle
Internal arc protection	16 kA 1 s
network type	AC
Rated frequency (fr)	50/60 Hz
Rated voltage (Ur)	36 kV
Rated lightning impulse withstand voltage (Up)	195 kV peak
Rated short-duration power-frequency withstand voltage (Ud)	50 kV rms 50 Hz for 1 min
Rated continuous current (Ir)	630 A
Rated short-time withstand current (Ik)	16 kA rms 1 s
standards	IEC 62271-100
