REL15013 PowerLogic P1 Protection Relays

Condition: New product

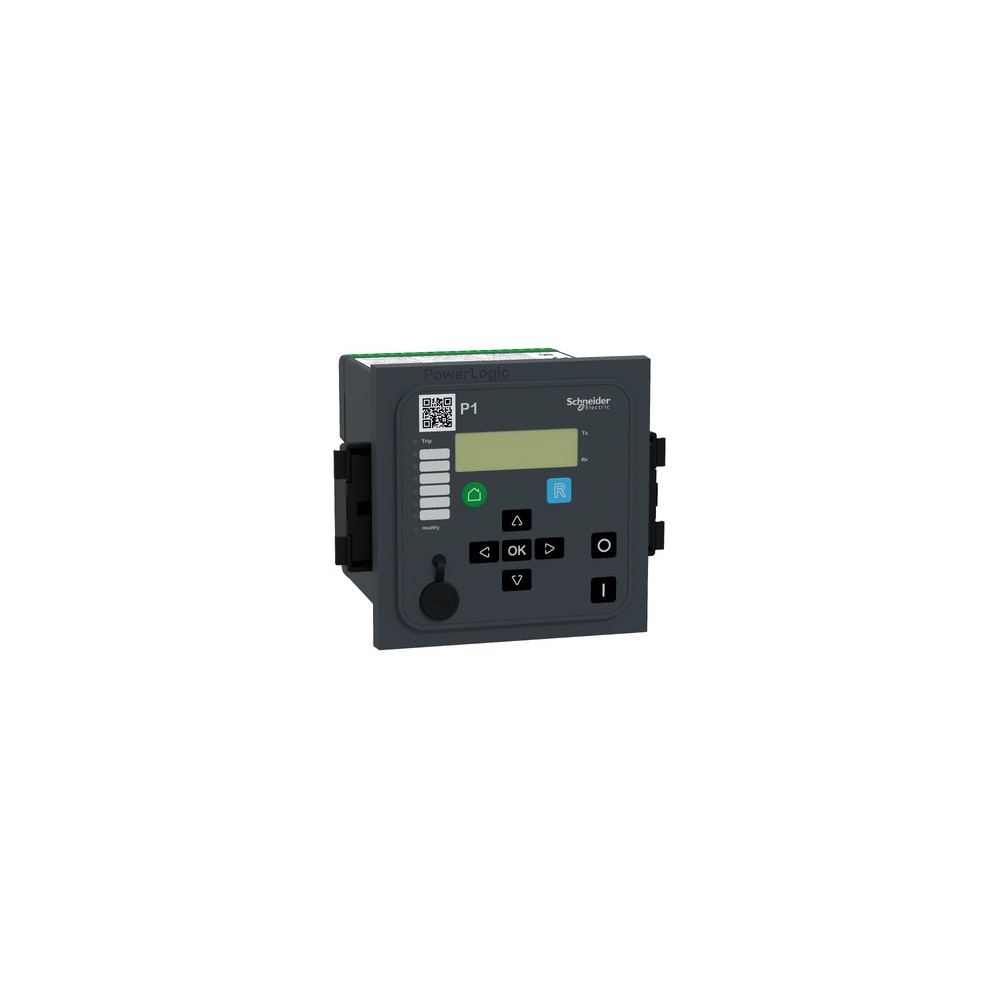

Schneider REL15013 PowerLogic P1 Protection Relays

Product line	PowerLogic
Product or Component Type	Protection relay
Relay application	Feeder
product reference	P1
Device Installation	Under plaster
Mounting Support	Fixing kit
Mounting Type	Flush mounted
power supply	90...240V AC 90...250V DC
measuring inputs	Phase current for 4 1/5 A CT
number of Digital Inputs (DI)	4
number of Digital Outputs (DO)	8 DO 1 watchdog
type of temperature module connection	1 twisted shielded pair
communication ports	1 RS485 on rear 1 USB type mini B on front
communication protocols	CEI 60870-5-103 Modbus RTU
Cyber Security	Password protection
protection functions	Breaker fault 50BF Phase overcurrent 50/51 Earth fault overcurrent 50N/51N Lockout relay 86 Thermal overload protection 49 Cold load trip Switch ON to fault (SOTF) Inrush detection
communication port protocol	No
measurement functions	Current 3-phase Current RMS Current peak Current inrush Frequency Temperature overload
control functions	Local/remote control I/O push-button Digital Using serial port
monitoring functions	Circuit breaker monitoring Trip circuit supervision 74 Event counters Relay self-monitoring
logs and records	Event logging Interrupt logging Opening scope information
switchgear diagnostic type	Open circuit supervision ANSI code: TCS
connections - terminals	Snap-on fixed Screw clamp terminals fixed

Complement
Power consumption in W	13.5W AC 4W DC
software name	ESetup Easergy Pro: Device setup
screen type	Graphic display terminal
number of keys	9
local signaling	6 x LED red/orange programmable 1 x LED red relay opening indicator 1 x LED green watchdog
device connection	Serial port 1 shielded twisted pair
communication compatibility	IEC 60870-5-103 Modbus RTU
Standards	EN 60255-26:2009 EN 60255-1:2010 EN 60255-27:2005
Product Certificates	CE
height	Built-in: 101.5 mm Total: 116.5 mm
width	Built-in: 101.5 mm Total: 116.5 mm
depth	Built-in: 108 mm Total: 119 mm
product weight	0.8 kg maximum
