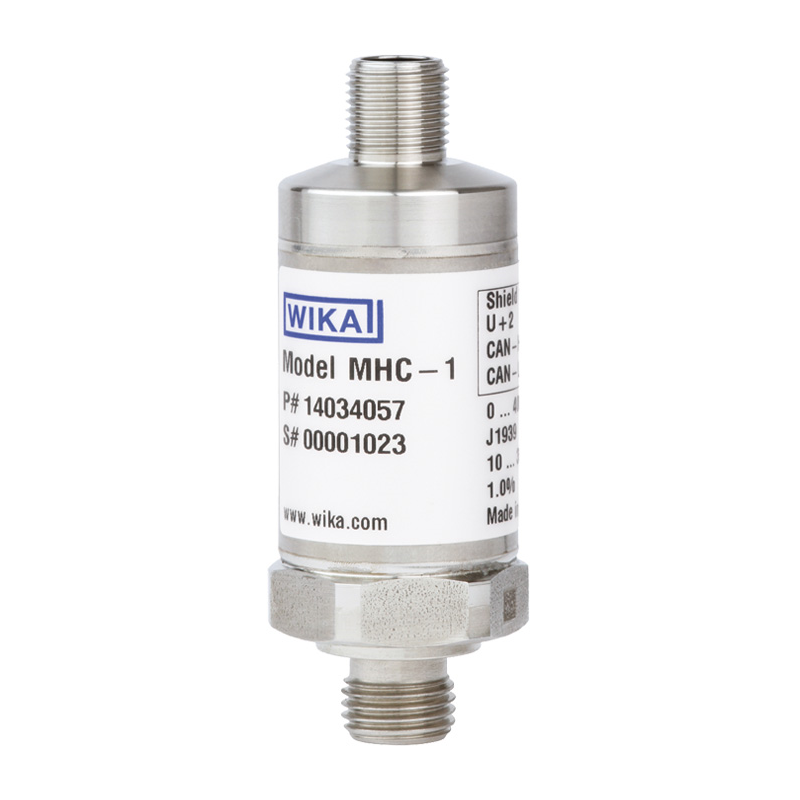

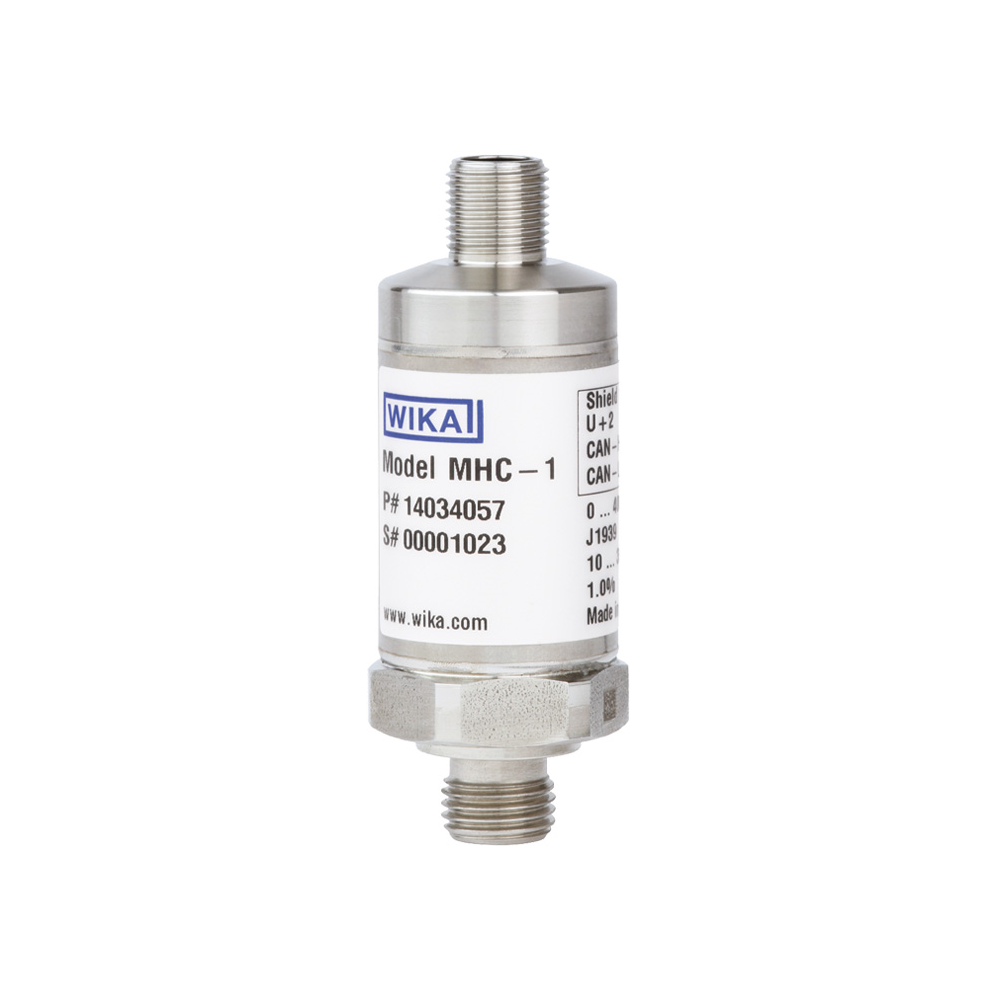

Model MHC-1 Pressure sensor

New product

Applications

  • Construction machines
  • Agricultural machinery
  • Industrial trucks
  • Cranes

Special features

  • Tested for harsh ambient conditions
  • High EMC protection
  • Version with integrated Y-connector
  • CANopen® and J1939 output signals

Description

Reliable and high-performance
WIKA's many years of experience in the field of serial bus systems and digital pressure sensors are combined in this instrument.

The model MHC-1 combines outstanding temperature characteristics, excellent accuracy specifications and an instrument concept that has been designed for the severe operating conditions of mobile applications.
A special qualification test programme simulated these high requirements.

CANopen® or J1939
This pressure sensor has been specifically developed in order that the typical protocols for mobile hydraulics can be offered in a single instrument. The model MHC-1 is available with either CANopen® or J1939 protocol.

Application oriented
It is possible to order the instruments preconfigured so that they can be installed without further effort. In addition, a version with an integrated input and output connector (Y-connector) offers a very easy and secure installation. Both connector variants of the pressure sensor have been qualified with an IP6K9K ingress protection.
