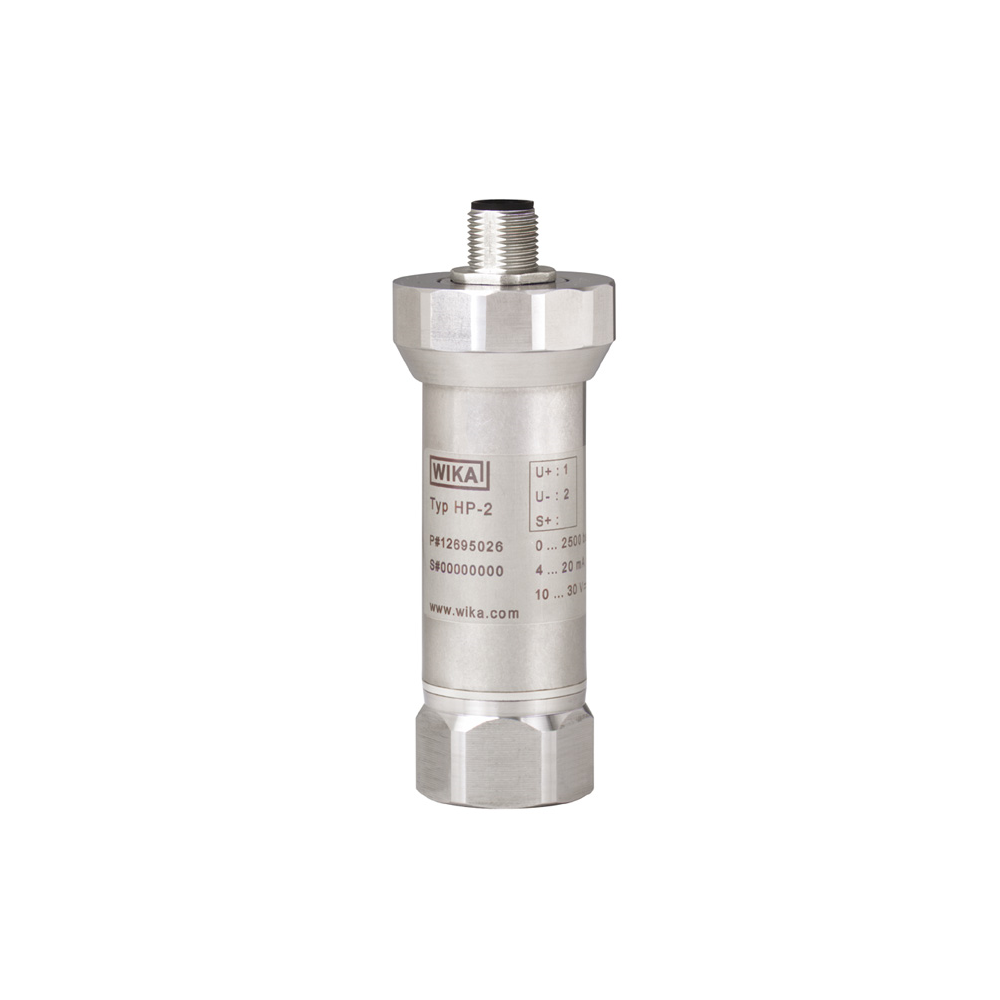

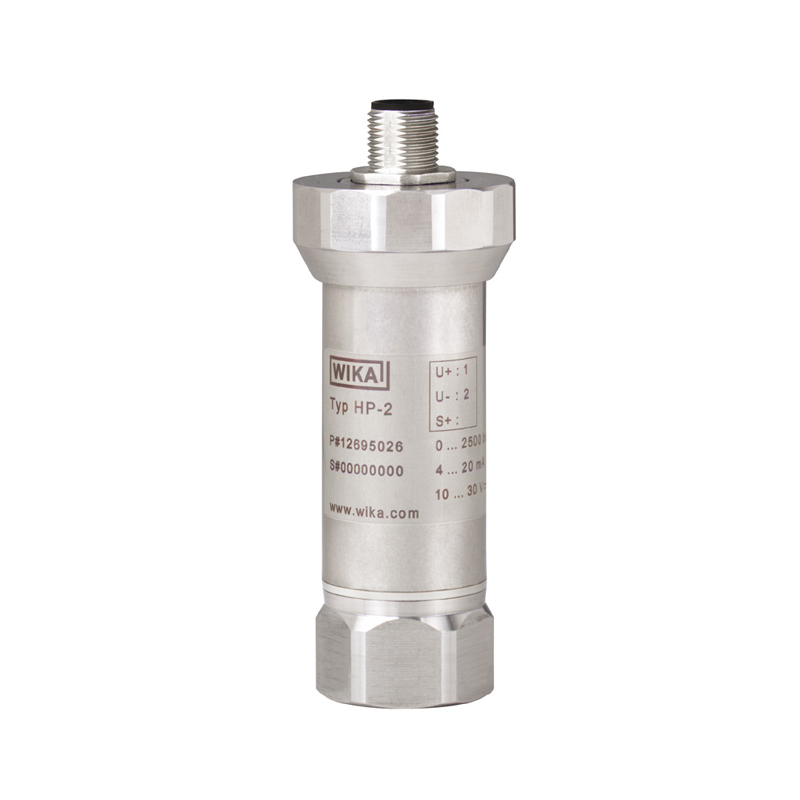

Model HP-2 Pressure sensor

New product

Applications

  • Test bench construction
  • Water jet cutting
  • High pressure pasteurisation
  • High pressure cleaning

Special Features

  • High number of load cycles due to patented design
  • Exchangeable process connection in case of an hair line crack
  • Suitable for highly dynamic pressure due to diaphragm protection system
  • Reduced recalibration costs due to excellent long term stability

Description

For highest pressures
The model HP-2 pressure sensor has been specifically developed for demanding high pressure applications up to 15,000 bar [217,500 psi]. This makes it one of the few pressure measuring instruments in the world that can reliably measure pressures of this magnitude.

High accuracy
This pressure sensor features a very high long-term stability and offers extremely high accuracy for the highest pressures. Measuring ranges up to and including 0 ... 10,000 bar [145,000 psi] can, as an option, be supplied with an even higher accuracy of 0.25 %.

Long service life
Thanks to its excellent load cycle stability, the model HP-2 has a particularly long service life, even with dynamic pressure profiles.
A protection against cavitation and pressure spikes, specifically developed for highly dynamic pressure profiles, further extends the service life. For water as a pressure medium, this protection is particularly recommended.
