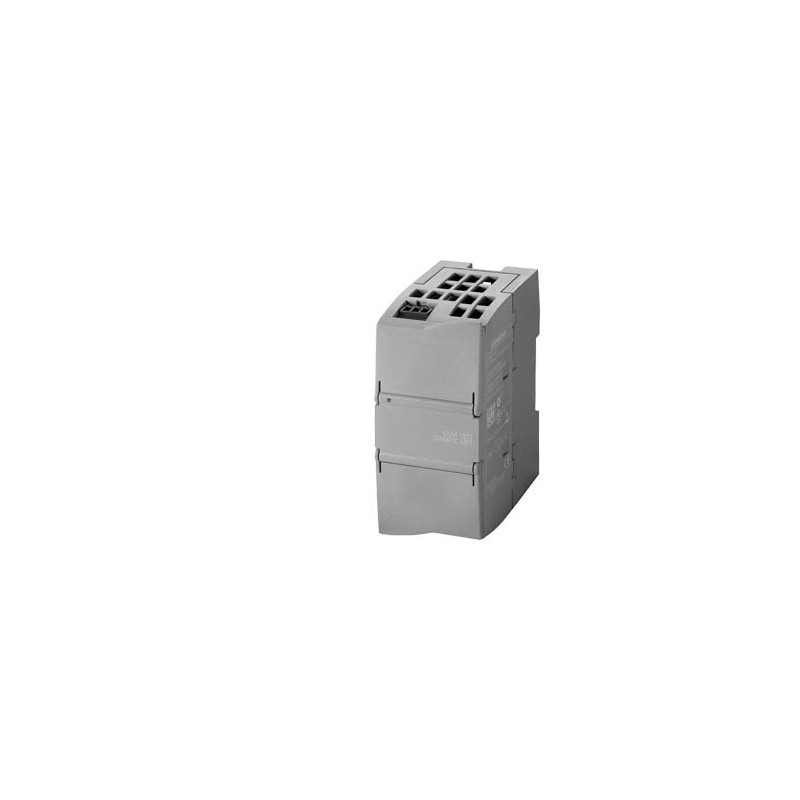

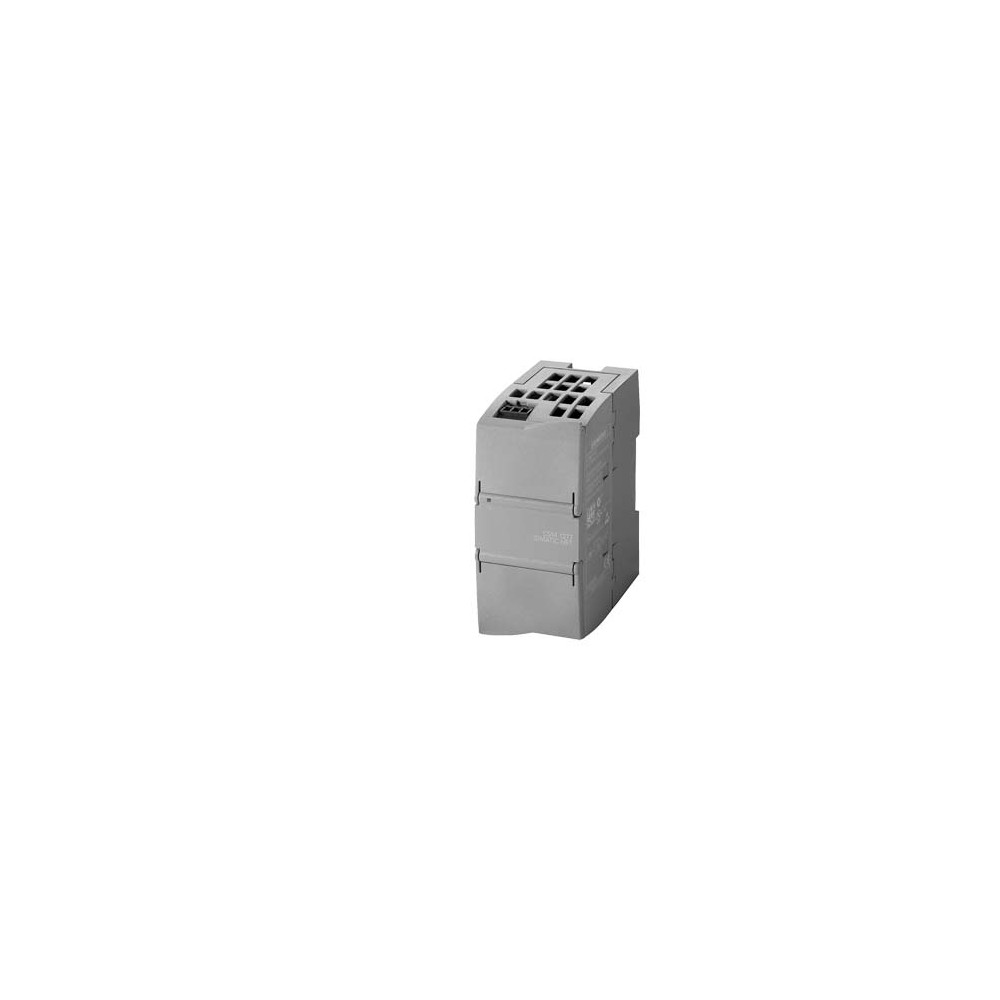

Siemens 6AG1277-1AA10-4AA0
| product type designation | ||
| product brand name | SIPLUS | |
| product type designation | CSM 1277 | |
| Technical Product Detail Page | https://i.siemens.com/1P6AG1277-1AA10-4AA0 | |
| transfer rate | ||
| transfer rate | 10, 100 Mbit/s | |
| ambient conditions | ||
| ambient temperature / in horizontal mounting position / during operation | 0 ... 60 °C | |
| installation altitude / at height above sea level / maximum | 5000 m | |
| relative humidity | ||
| ● with condensation / according to IEC 60068-2-38 / maximum | 100 %; RH including condensation/frost (no commissioning when condensation is present), horizontal installation | |
| chemical resistance / to commercially available cooling lubricants | Yes; incl. airborne diesel and oil droplets | |
| ambient condition / relating to ambient temperature - air pressure - installation altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) | |
| resistance to biologically active substances | ||
| ● conformity according to EN 60721-3-3 | Yes; Class 3B2 mold and fungal spores (excluding fauna); class 3B3 on request | |
| ● conformity according to EN 60721-3-6 | Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna) | |
| resistance to chemically active substances | ||
| ● conformity according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * | |
| ● conformity according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (Severity degree 3); * | |
| resistance to mechanically active substances | ||
| ● conformity according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust; * | |
| ● conformity according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * | |
| environmental category / according to IEC 60721 / note | * The supplied plug covers must remain in place on the unused interfaces during operation! | |
| coating / for equipped printed circuit board / according to EN 61086 | Yes; Class 2 for high availability | |
| type of coating / protection against pollution according to EN 60664-3 | Yes; protection of the type 1 | |
| type of test / of the coating / according to MIL-I-46058C | Yes; coating discoloration during service life possible | |
| product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; conformal coating, class A | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| width | 75 mm | |
| height | 100 mm | |
| depth | 45 mm | |
| net weight | 0.2 kg | |
| product functions / management, configuration, engineering | ||
| product function | ||
| ● switch-managed | No | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| ● CE marking | Yes | |
| standard | ||
| ● for EMC interference emission | EN 61000-6-4 (Class A) | |
| ● for immunity to EMC | EN 61000-6-2 | |
